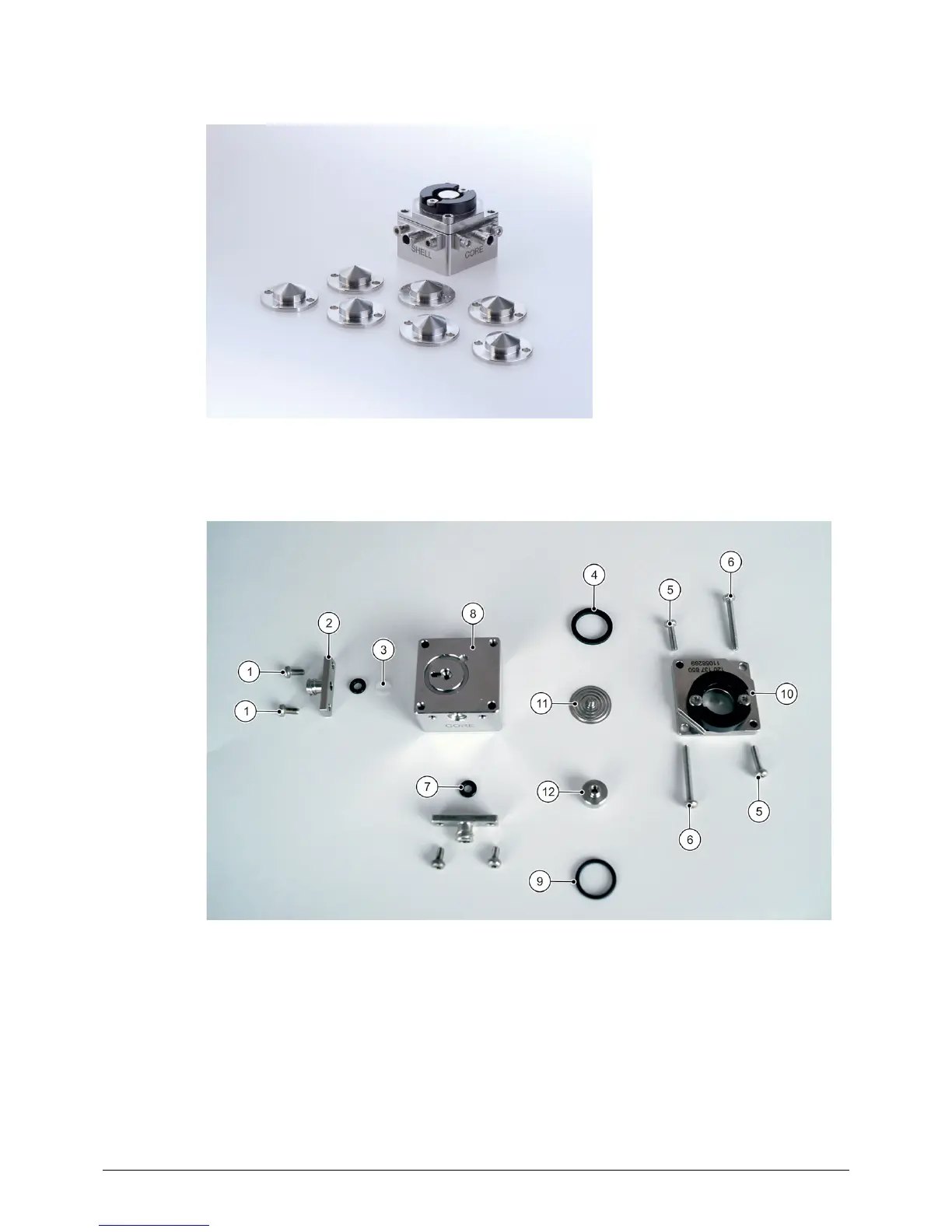

Figure 5-13: CN bead producing unit with set of 7 shell nozzles. The following nozzle apertures are standard:
0.20, 0.30, 0.4, 0.50, 0.60, 0.70 and 0.90 mm.
Figure 5-14: Single parts of the CN bead producing unit
a Screw M3×6
Luer-Lock
Pre-filter with 50 µm mesh
Flat gasket (18/14×1.5)
Screw M3×8
Screw M3×25
O-Ring (3.68×1.78)
CN pulsation chamber
O-Ring 12.42×1.78
CN magnet holder
k Membrane
Magnet
