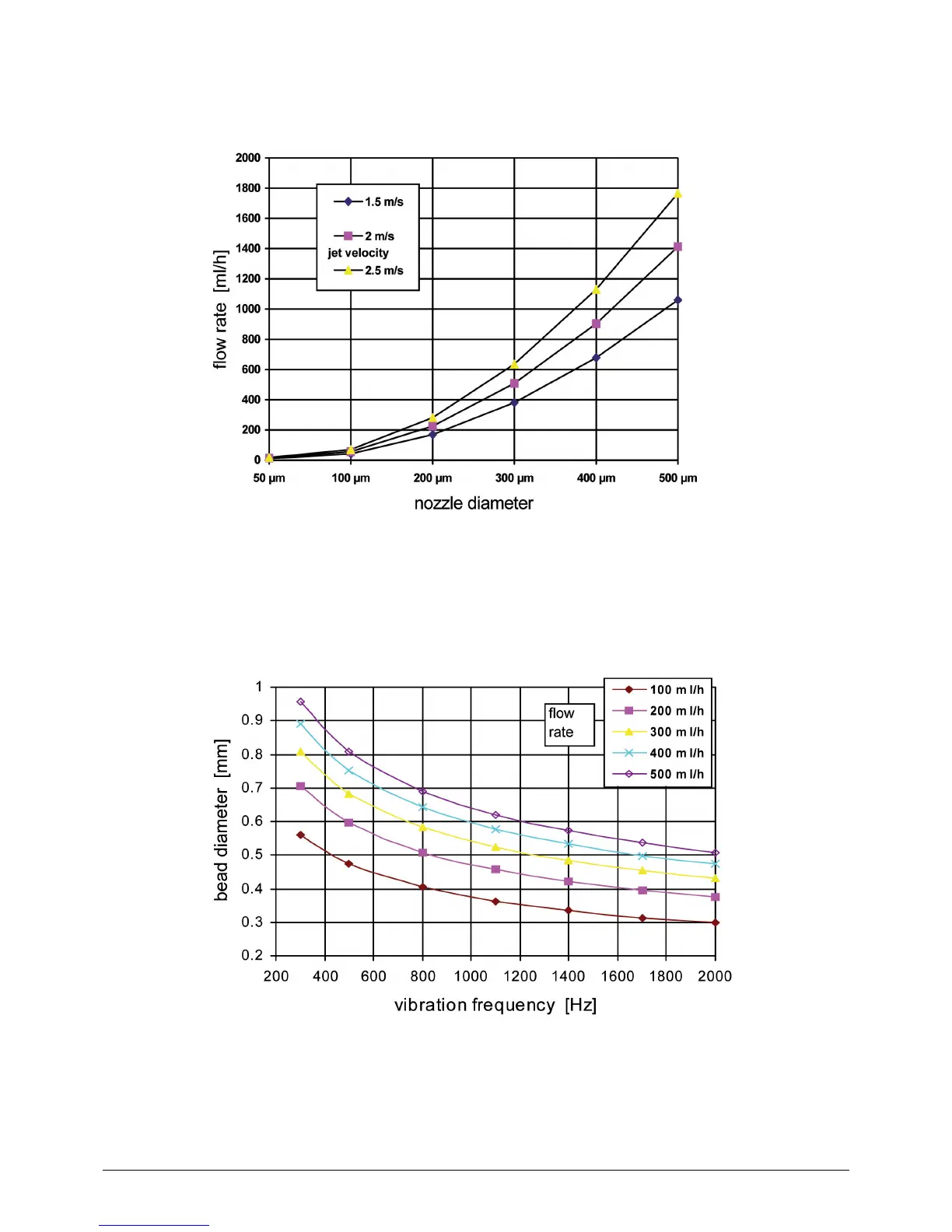

Figure 6-4: Influence of the liquid jet velocity and the nozzle diameter on flow rate, as calculated by Equation 4.
Figure 6-5 shows the correlation between the vibration frequency and the bead diameter for five
different flow rates as calculated by equation 4. Lower flow rates, which corresponds to lower
pumping rates, produce smaller beads. Higher vibration frequencies produce smaller beads also.
Figure 6-5: Influence of the vibration frequency and the flow rate on the bead diameter as calculated by Equation 4.
