BÜCHI Distillation Unit K-314
5.6 Sample tube holder
The sample tube holder has been correctly adjusted in the
factory.
Check whether the holder is still correctly positioned;
• Push the quick-locking clamp all the way up (1)
• Insert the test tube as shown on the figure (2)
• Now push the quick-locking clamp all the way down (3)
• The sample tube is now positioned.
The tube should not be too loose (possible
leakage) or too tight (deformation of the
rubber bung).
Loosen the holders Phillips-head screws (4)
and adjust the holder according to the
position of the sample tube.(4).
5 Operation

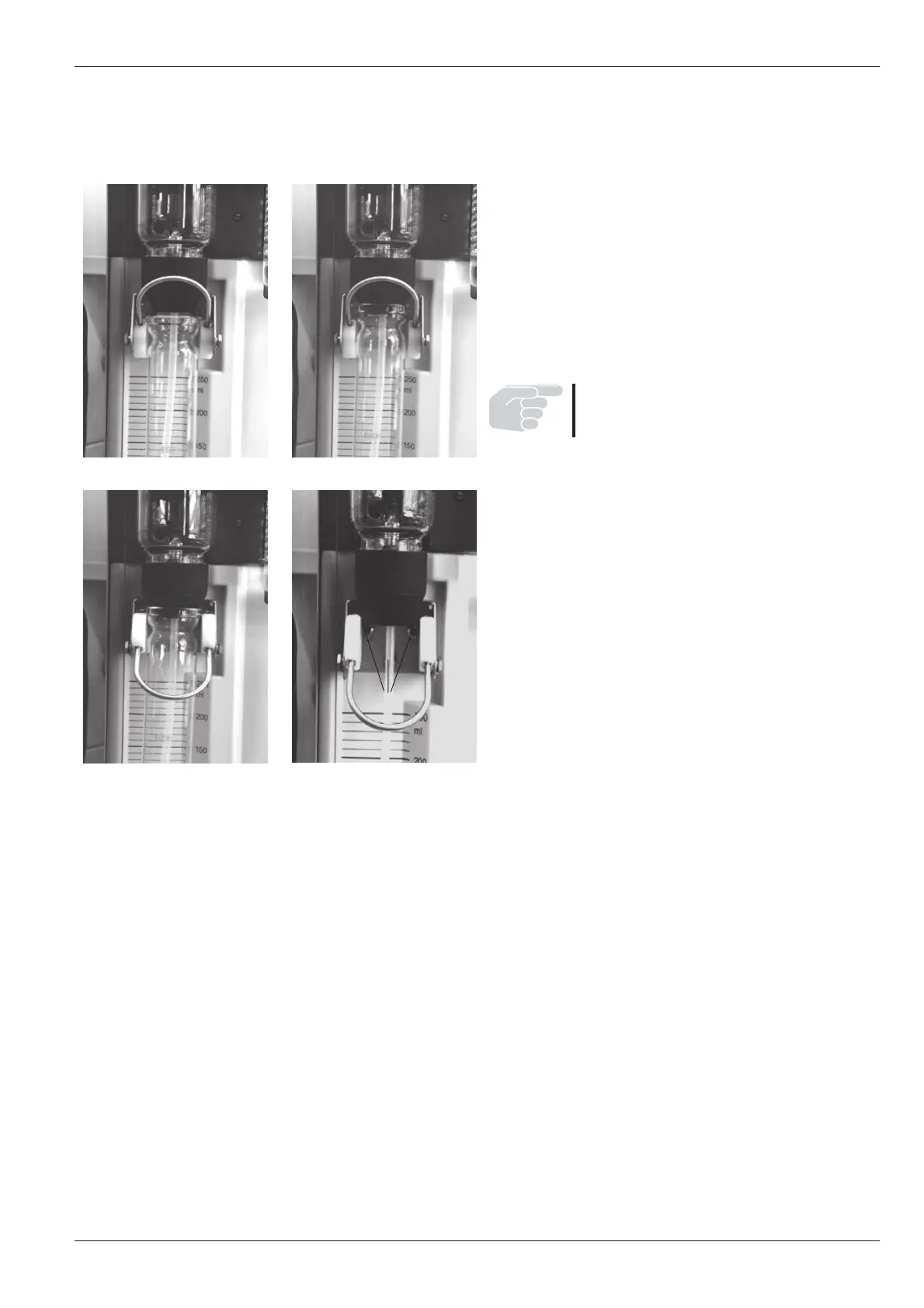

Fig. 11: Inserting the sample tube
햲
햳
햴
햵
