BÜCHI Distillation Unit K-314 4 Putting into operation

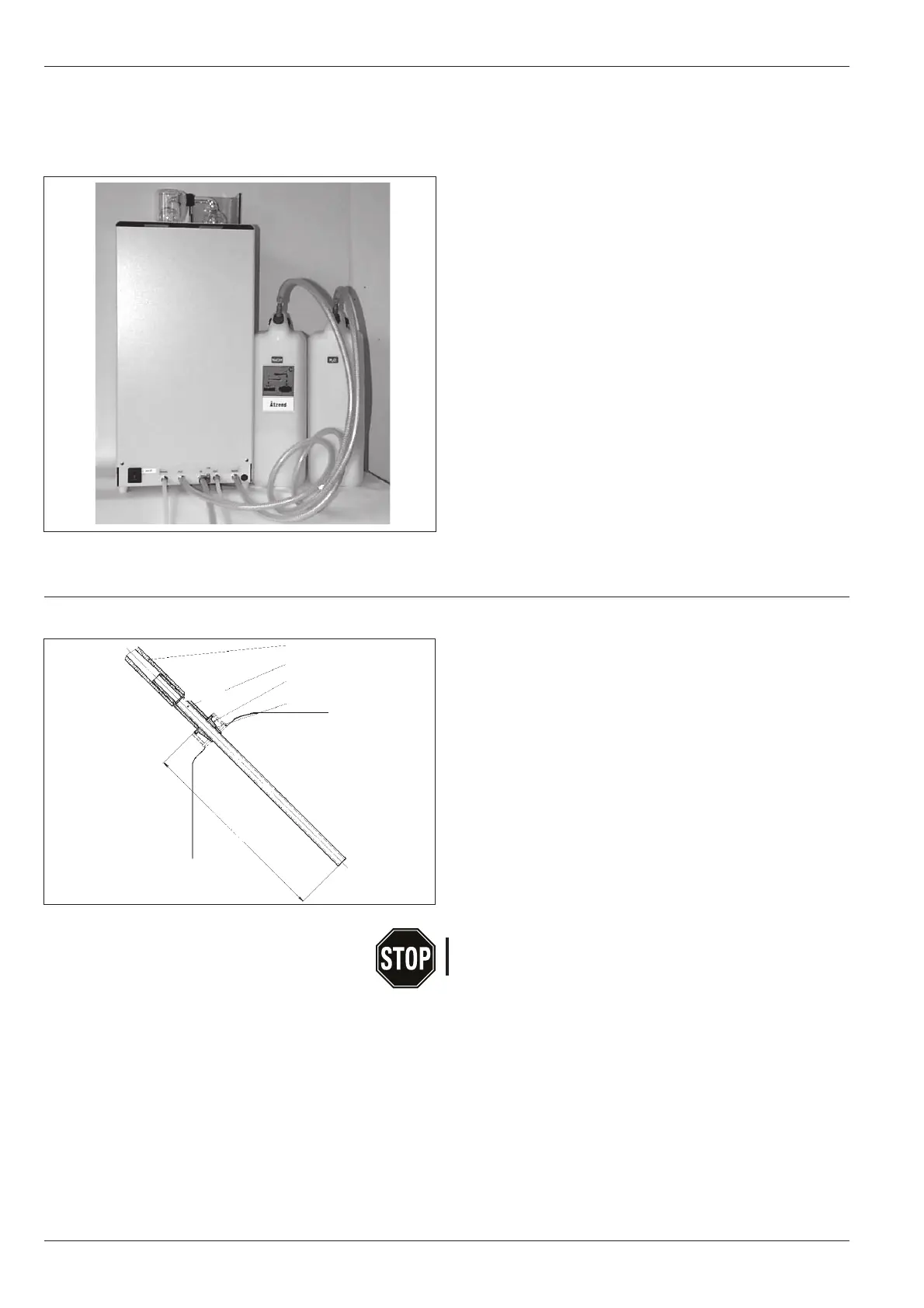

Fig. 7: Connection supply tanks
4.4 Drain hose (3)
Make sure that the hose drains freely. No kinks! No airtraps
in the hose!
4.5 Connection of the supply tanks
• Connect the Nyflex hose to the flow-through tube
• Unscrew the small tank cap and stick it on the flow-
through tube
• Insert the flow-through tube with the tank cap on into
the tank until it reaches the stop
• Tighten the tank cap
• Connect the hose from the water tank to the K-314
(H
2
O nipple)
• Connect the hose from the sodium hydroxide tank to
the K-314 (NaOH nipple
• Fix the hose nozzle in place on the large tank cap.
The supply tanks must not be any higher than the unit
itself, nor any lower than 1 meter below it.
ca. 456
026660
026058
004113
026411
Fig. 6: Drain hose arrangement
