• Attach the tray for adsorption storage (optional available for DuoScrub) to the housing: Slide the
tray a from the side into the groove in the housing b and fix it by tightening the screw c. After
the tray has been attached to the housing of the scrubber, the adsorption vessel and the inlet
tubing of the neutralization vessel can be stored in the tray, while the neutralization vessel is taken
away from the instrument.

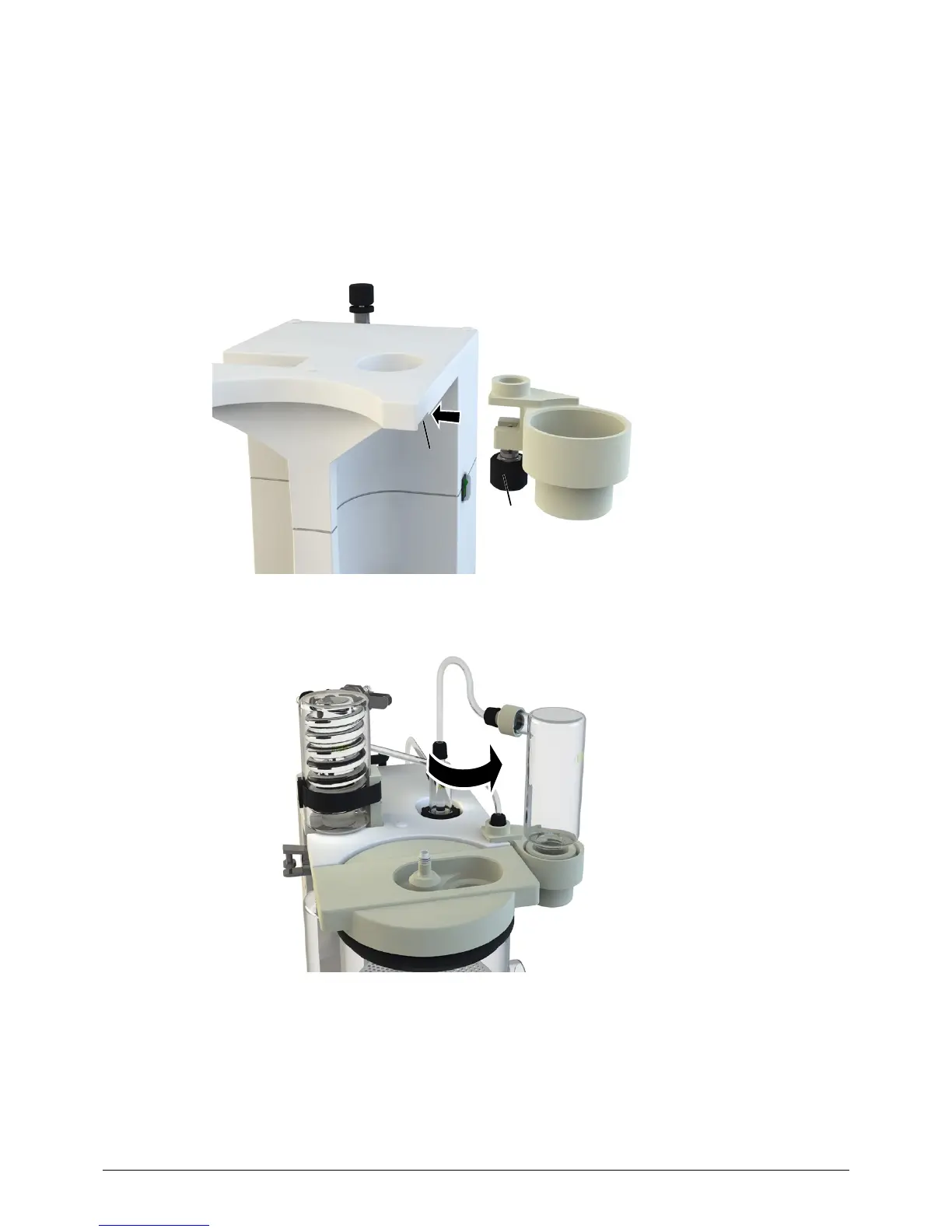

Fig. 5.3: Fixing the tray for adsorption storage
Fig. 5.4: Swiveling adsorption vessel and tubing to the tray
