5.7 Hose connections
NOTE
Use clips and cable ties where necessary to secure the hoses in place.
5.7.1 Hose connections of the DuoScrub
The DuoScrub consists of the neutralization and the adsorption vessel.
To establish the hose connections, proceed as follows:
• Connect the adsorption vessel c to the bypass valve d using the PTFE hose and secure it with
the GL 14 hose connectors at both ends.
• Connect the emission source via a Woulff bottle to the neutralization vessel b and secure all
connections with hose clamps.
3
2
1
4
5
a Neutralization stage
b Inlet for fumes from the emission source
c Adsorption vessel
d Bypass valve
e Silencer

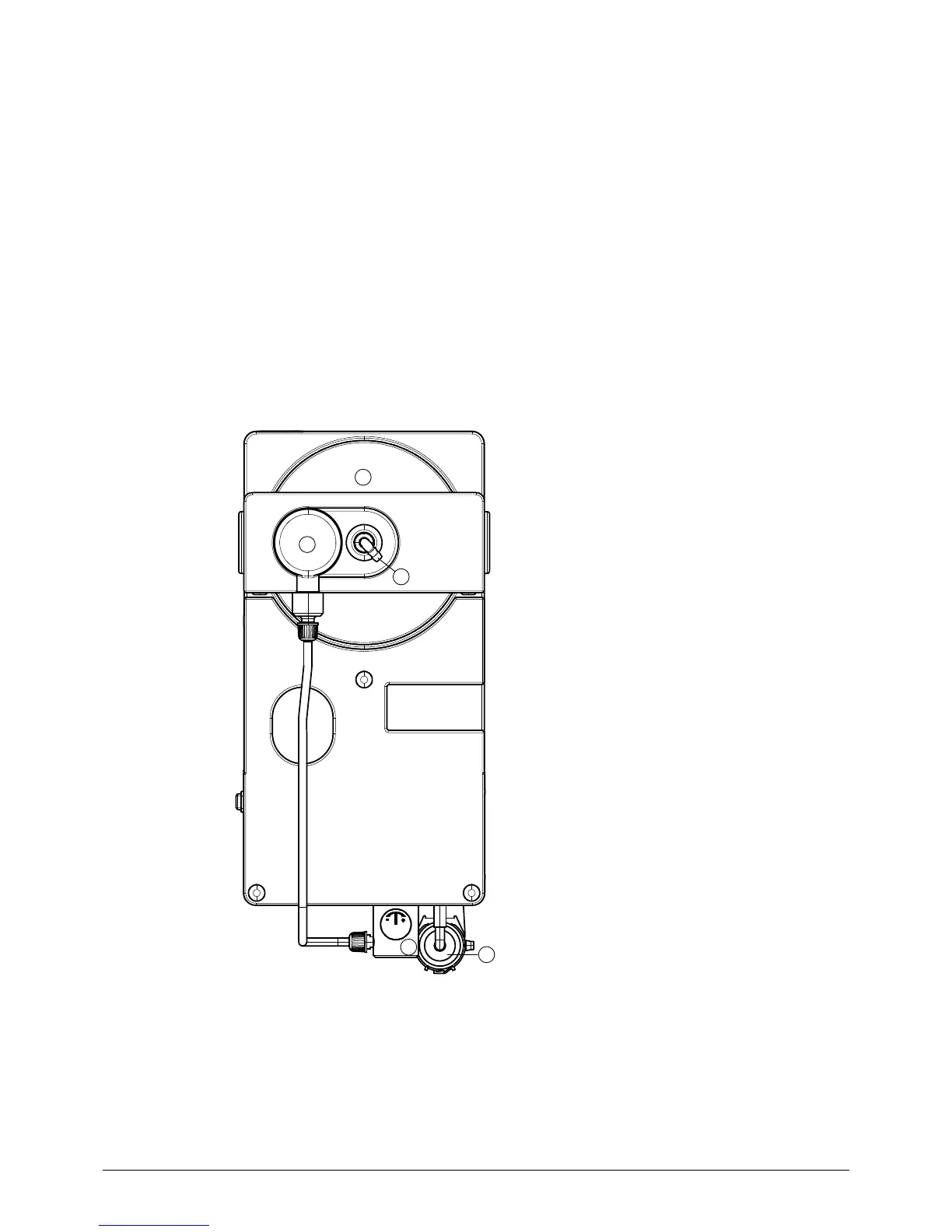

Fig. 5.11: Hose connections of the DuoScrub
