Modules for Logamatic 4000 control panels - We reserve the right to make technical modifications.
12
Module installation for Logamatic 43xx controls3
Example
Heating zone assignment for two heating zone modules (FM442)
and one heating zone and DHW module (FM441):
For installation of the FM458 module, you may need the
connecting cable included with the module in order to supply
adjacent modules of the FM458 with mains power.

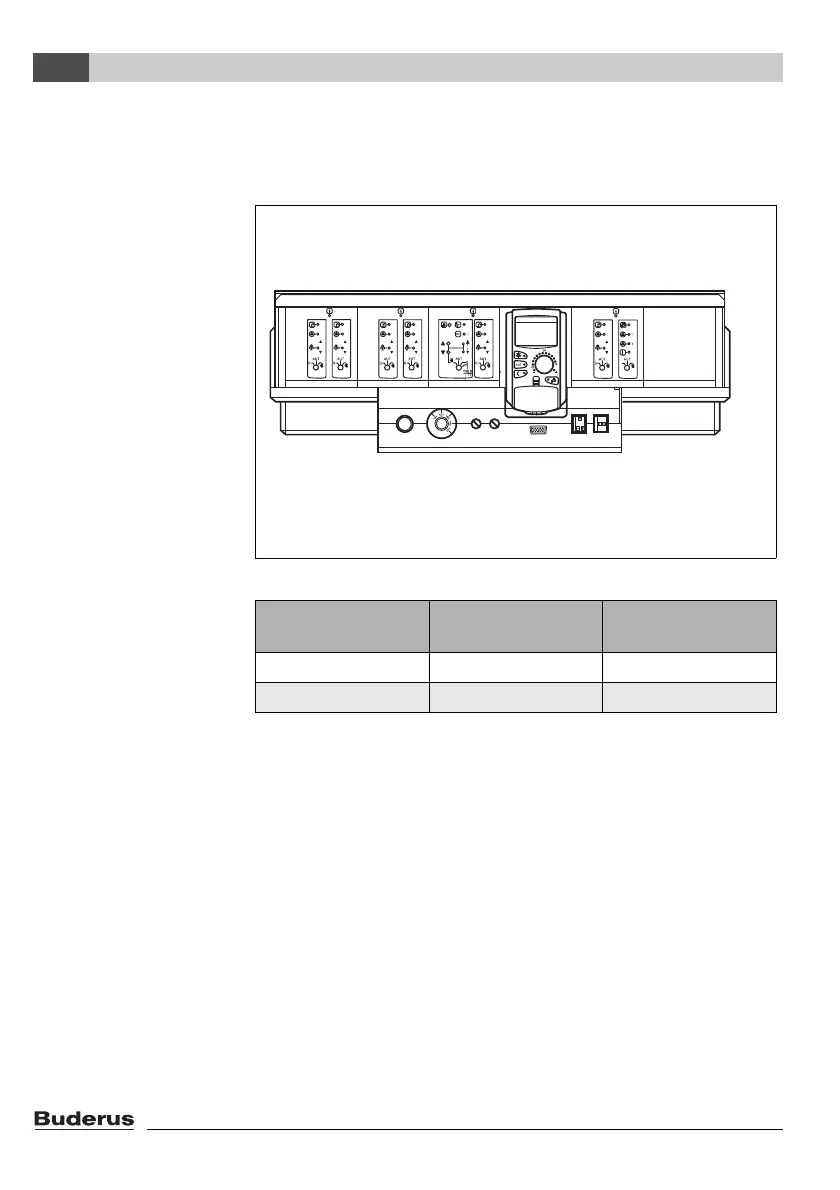

Fig. 2 Example of the layout of function modules
Slot 1
FM442
Slot 2
FM442
Slot 3
FM441
Heating zone 1 Heating zone 3 Heating zone 5
Heating zone 2 Heating zone 4 DHW circuit
