Product description
3
Logano GE515 - We reserve the right to make any changes due to technical modifications.8
3 Product description
The special Logano GE515 oil- and gas-fired boiler may
be supplied with or without burner. The burner plate is
supplied without holes. However, Buderus can supply
drilled burner plates (hole pattern subject to burner) as
accessory.
For Logano GE515 with pressure jet oil or gas burner, a
drilled burner plate is part of the standard delivery.
The main components of the Logano GE515 oil- and
gas-fired special boiler are:
Boiler block (Fig. 1, [3]).
The boiler block transfers the heat generated by the
burner to the heating water.
Boiler shell (casing, Fig. 1 and Fig. 2, [1]), thermal
insulation (Fig. 1, [2]).
Boiler shell and thermal insulation prevent energy
loss.
Control device (Fig. 1, [4]).
The control device is designed to monitor and control
all electrical components of the Logano
GE515 oil-
and gas-fired special boiler.

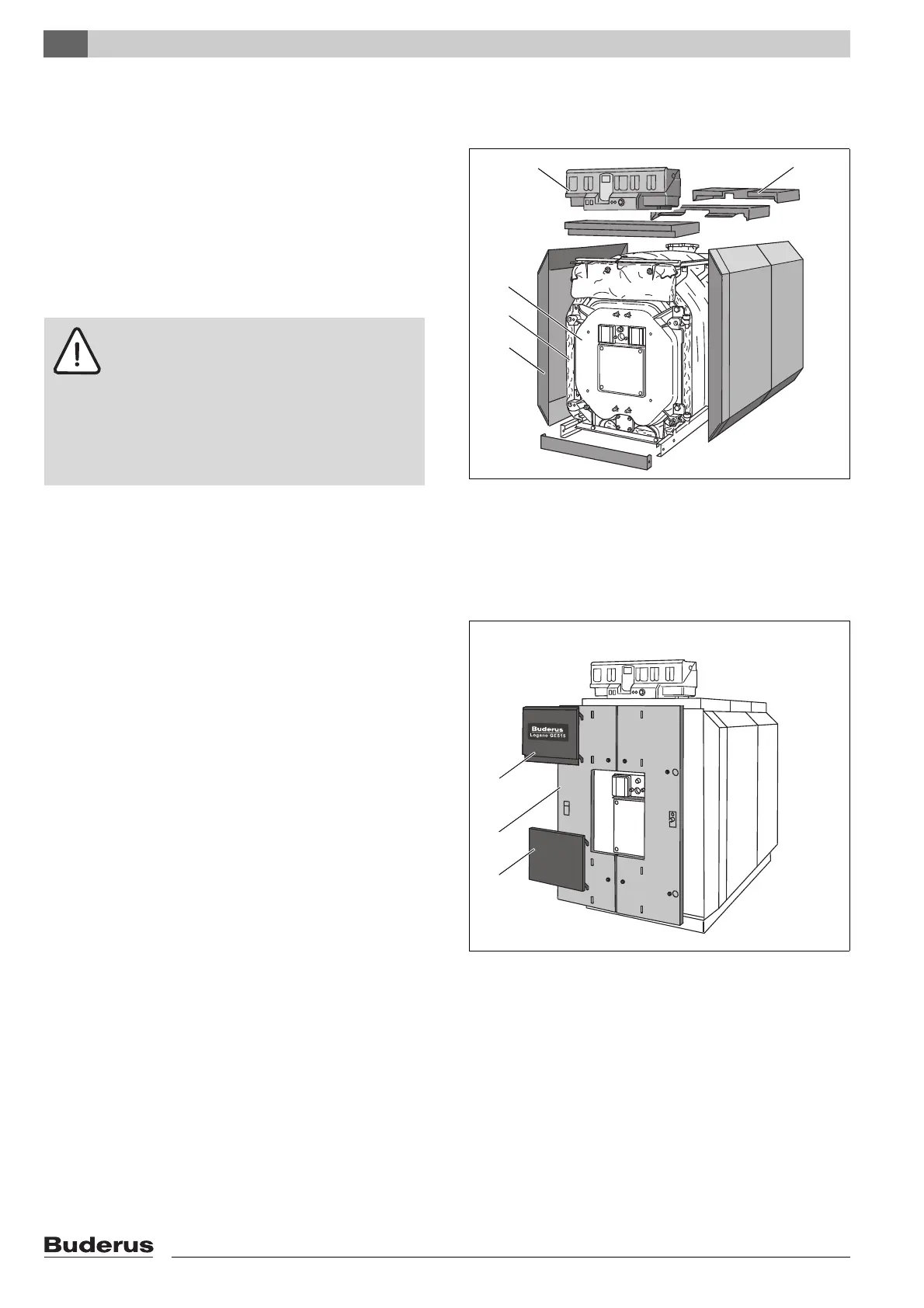

Fig. 1 Logano GE515 oil- and gas-fired special boiler
1 Boiler shell (casing)
2 Thermal insulation
3 Boiler block
4 Control device
Fig. 2 Logano GE515 oil- and gas-fired special boiler
1 Boiler shell (casing)
2
3
4
1
1
1
1
1
CAUTION!
SYSTEM DAMAGE
through incorrect burner.
z Only use burners which meet the
technical preconditions of the Logano
GE515 oil- and gas-fired special boiler
(
see chapter 4 "Specification",
page 10).
