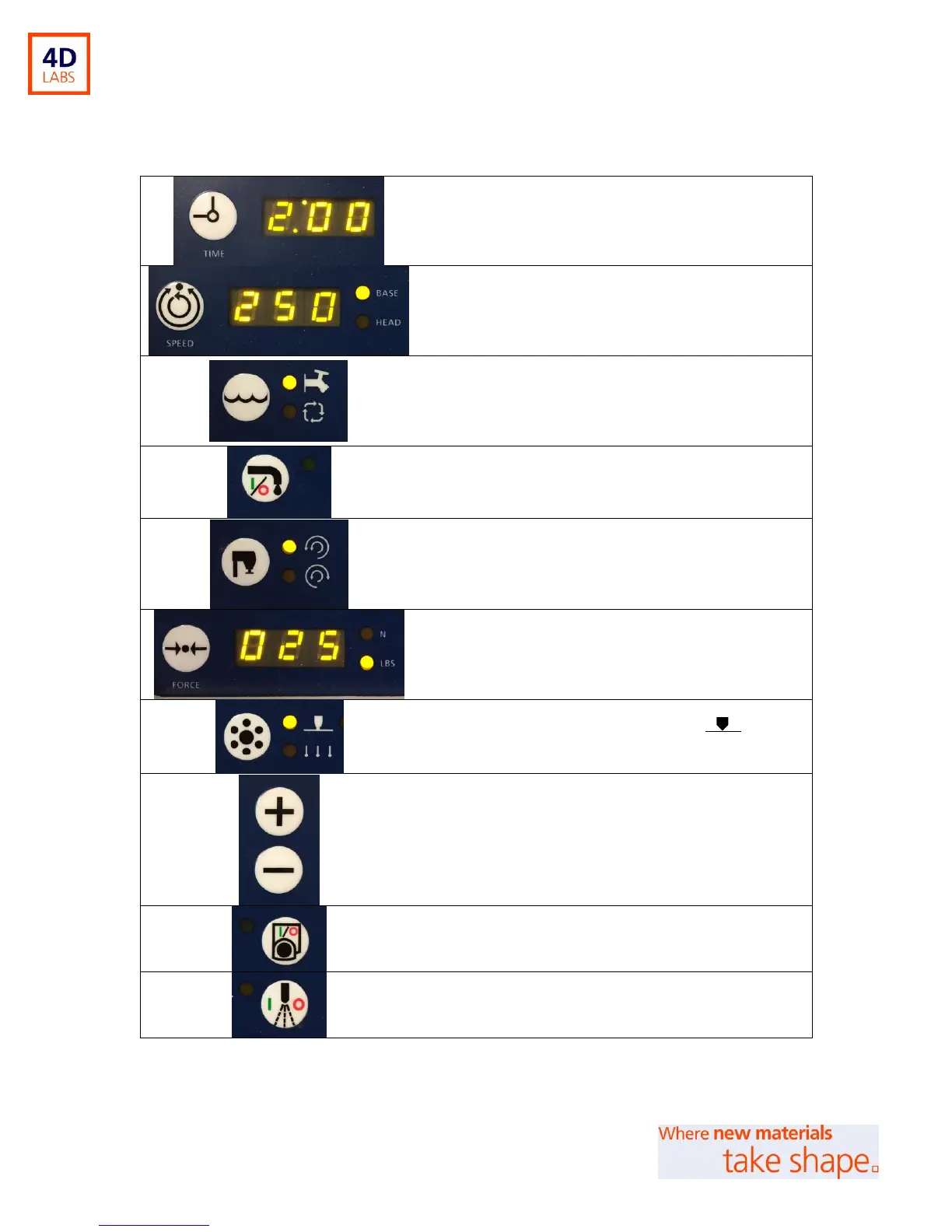

Time display set for a grinding-polishing cycle (m:ss)
Displays the rpm of the platen or Power Head
Base
Base = 1 – 500 rpms
Head = 30 – 60 rpms
Selects the source of water.
Water only comes from the tap and so only this
selection can be made.
No lights indicate that the water is set to OFF
This button will stop and start the water flow
This button selects the rotation directions of the platen
to the head. These can in the same, or opposite
directions (the head always rotates counter-clockwise)
This displays the amount of force (in lbs or N) that is
applied by the Power Head.
Single Force = 1 – 10 lbs (5 – 45 N)
Central Force = 5 – 60 lbs (20 – 260 N)
Selects between the single force (upper; ) and
central force (lower: “↓↓↓”) modes.
Increase or decrease the selected paramter (Time,
Speed, and Force)
This button activates the platen for manual grinding,
removing the use of the Power Head.
This button activates the connected burst dispensor
unit (if required)
