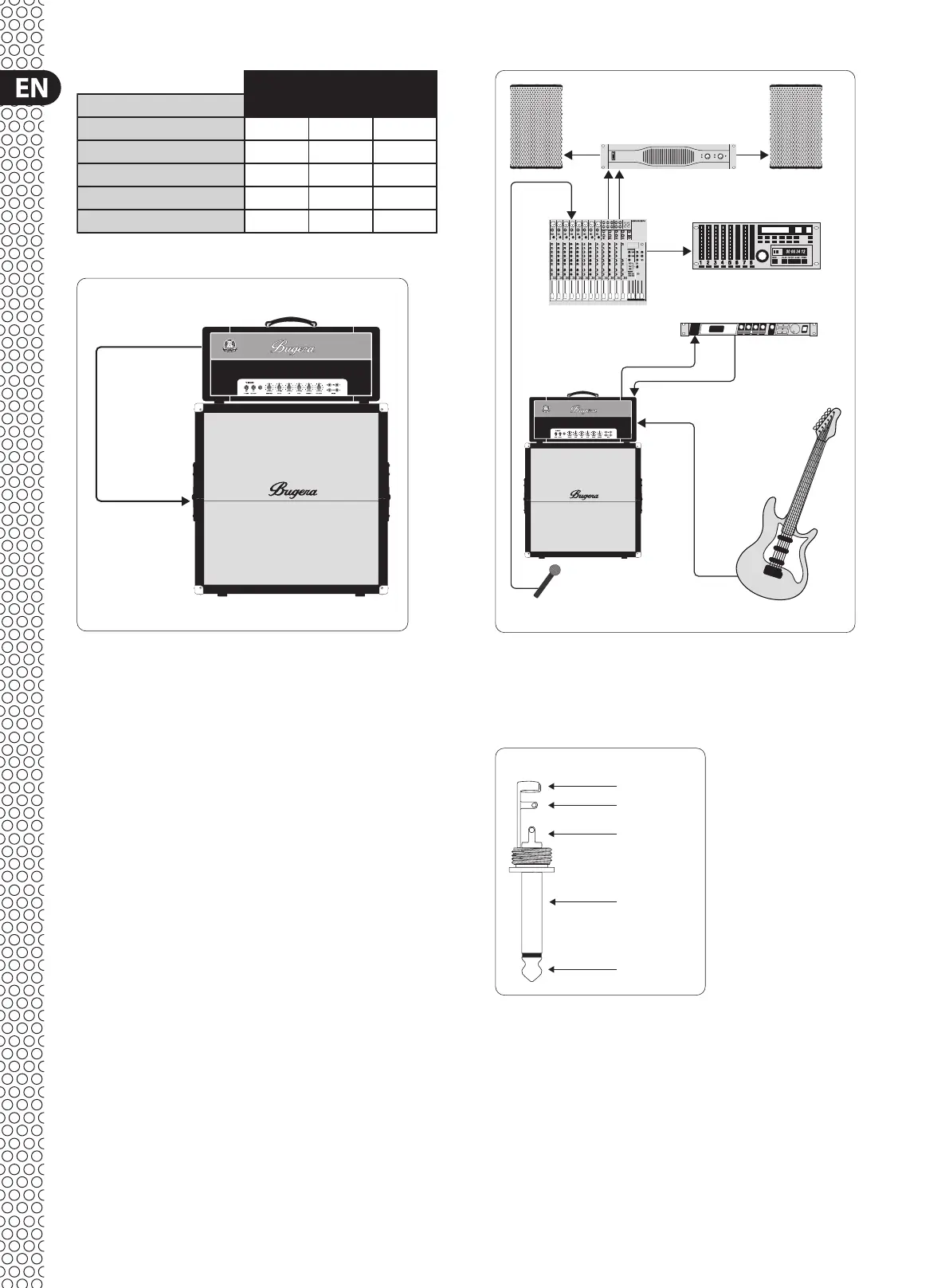

8 BUGERA 1960 User Manual
Impedances
Connecting a speaker
The illustration below shows a set-up that includes an external eects device
connected to the FX LOOP. Additionally, the speaker signal of the connected box
is picked up with a microphone and routed to a microphone input on a mixing
console. This set-up allows you to play back the signal using a P.A. system and/or
send it to recording equipment.
Set-up for live playing
Audio connections
The inputs and outputs of the BUGERA amplier use mono jack connectors.
¼" mono jack connector
Speaker cabinets
1 x 16 Ω
1 x 8 Ω
1 x 4 Ω
2 x 16 Ω
2 x 8 Ω
16 Ω 8 Ω 4 Ω
IMPEDANCE switch





BUGERA 1960
Loudspeaker
ouput
Speaker cabinet BUGERA 412H-BK
PA loudspeaker
Power amplier
Main Out
Multitrack recorder
Eects processor
Send Return
Instrument input
Electric guitar
Microphone
Mixing console
strain relief clamp
sleeve
tip
sleeve
(ground/shield)
Unbalanced ¼" TS connector
tip
(signal)
