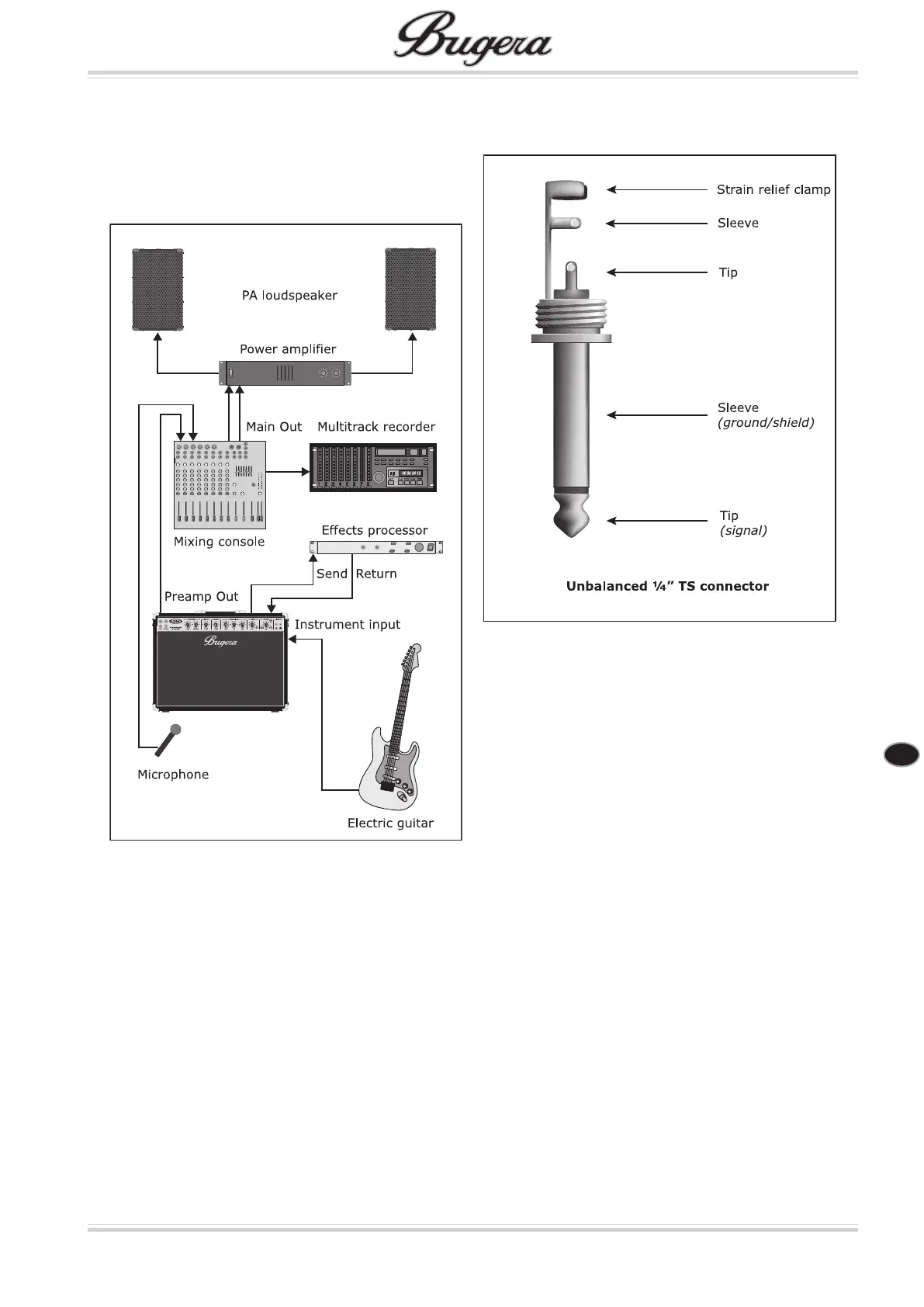

The following gure shows a setup of the 6262-212 to-
gether with an external effects unit connected over the
FX LOOP. And the PREAMP OUT is connected to the line
input of a mixer in order to send the signal to a recording
device. In addition, the speaker signal of the BUGERA is
picked up by a microphone and is fed to the microphone
input of the mixer. This way you get a second guitar sig-
nal which then can be amplied by a PA system and/or
can be recorded as well.
Live setup with a BUGERA combo
Audio connections
The inputs and outputs of the BUGERA amplier use
mono jack connectors.
¼" mono jack connector
