8.6 Technische Daten
BWT B35 und B120
8.6 Technical Data
BWT B35 and B120

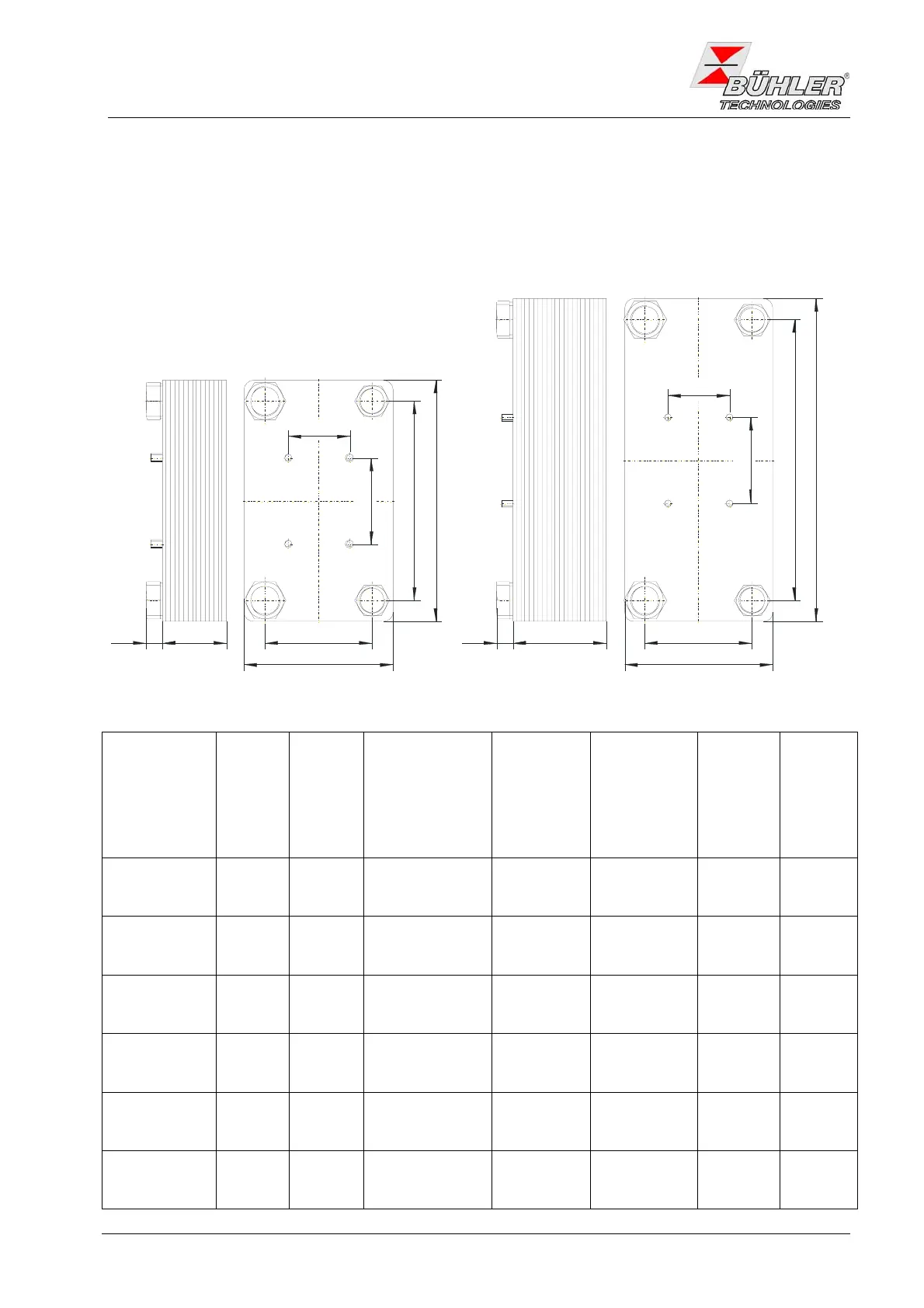

Abmessungen in mm (inch) Dimensions given in mm (inch)
27 (1.06)
F
F
100 (3.94)
100 (3.94)
BWT B35
BWT B120
4xM12x20
4xM12x20
F1
F1
F2
F2
F3
F3
F4
F4
174 (6.85)
174 (6.85)
241 (9.49)
241 (9.49)
140 (5.51)
392 (15.43)
324 (12.76)
140 (5.51)
456 (17.95) 524 (20.63)
Typ
Type
Artikel-
Nr.
Part No.
F
F
Kühlleistung
Cooling
performance
Ölanschlus
s
Oil ports*
wrench size
F3, F1
Wasser-
anschluss
Water ports*
wrench size
F2, F4
Gewicht
(Netto)
Net
Weight
Volumen
Liter
Volume
BWT B35x040 3435040
103 mm
4.06 in
30 - 105 kW
40.2 - 140.8 hp
G1 ½ 60 mm G1 ¼ 50 mm
18,0 kg
39.7 lb
5,0 l
1.3 gal
BWT B35x050 3435050
127 mm
5.00 in
55 - 145 kW
73.7 - 194.4 hp
G1 ½ 60 mm G1 ¼ 50 mm
21,0 kg
46.3 lb
7,0 l
1.8 gal
BWT B35x060 3435060
151 mm
5.94 in
55 - 155 kW
73.7 - 207.8 hp
G1 ½ 60 mm G1 ¼ 50 mm
24,0 kg
52.9 lb
8,0 kg
2.1 gal
BWT B35x090 3435090
223 mm
8.78 in
55 - 175 kW
73.7 - 234.6 hp
G1 ½ 60 mm G1 ¼ 50 mm
34,0 kg
75.0 lb
12,0 kg
3.2 gal
BWT B120x040 3445040
103 mm
4.06 in
40 - 125 kW
53.6 - 167.6 hp
G1 ½ 60 mm G1 ¼ 50 mm
23,0 kg
50.7 lb
6,0 kg
1.6 lb
BWT B120x060 3445060
151 mm
5.94 in
55 - 190 kW
73.7 - 254.7 hp
G1 ½ 60 mm G1 ¼ 50 mm
31,0 kg
68.3 lb
10,0 kg
2.6 lb
