Vehicle Care 10-43
Relay
Number
Usage
K7 Main Relay
K8 Not Used
K9
Cooling Fan
(LAF/LHU)
K10 Cooling Fan (LAF)
K11 Not Used
K12 Cooling Fan (LHU)
K13
Cooling Fan
(LAF/LHU)
K14
High Intensity
Discharge Lamps
K15 Ignition
K16
Secondary
AIR Pump
K17
Window/Mirror
Defog
Instrument Panel Fuse
Block
The instrument panel fuse block is
located in the instrument panel, on
the driver side of the vehicle.
To access the fuses, open the
storage compartment. Press in on
the sides of the compartment to
release it from the instrument panel.
Pull the door toward you to release
it from the hinge.

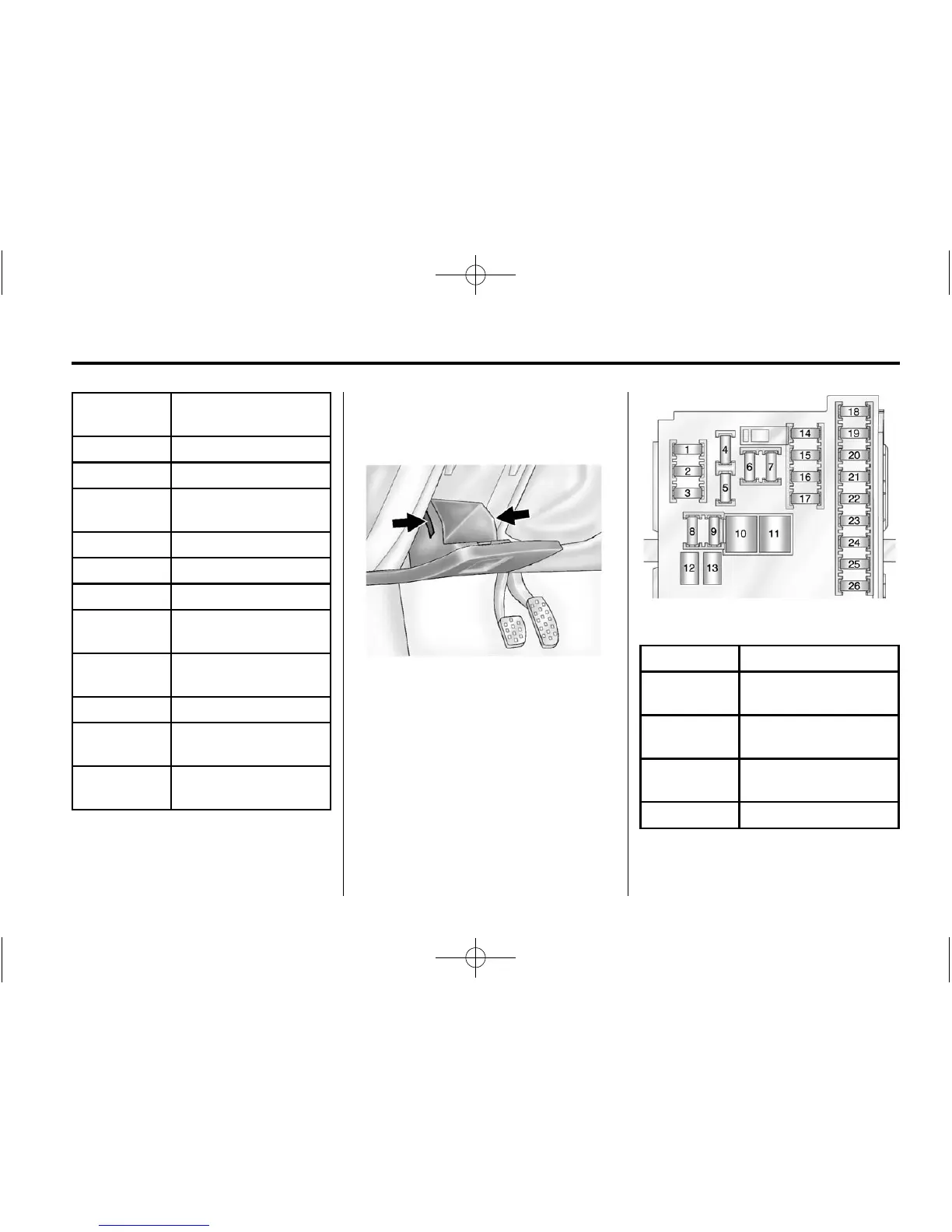

Instrument Panel Fuse Block
Number Usage
1
Suspension Control
Module
2
Body Control
Module 7
3
Body Control
Module 5
4 Radio
