Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10122659) - 2017 - crc - 6/10/16
264 Vehicle Care

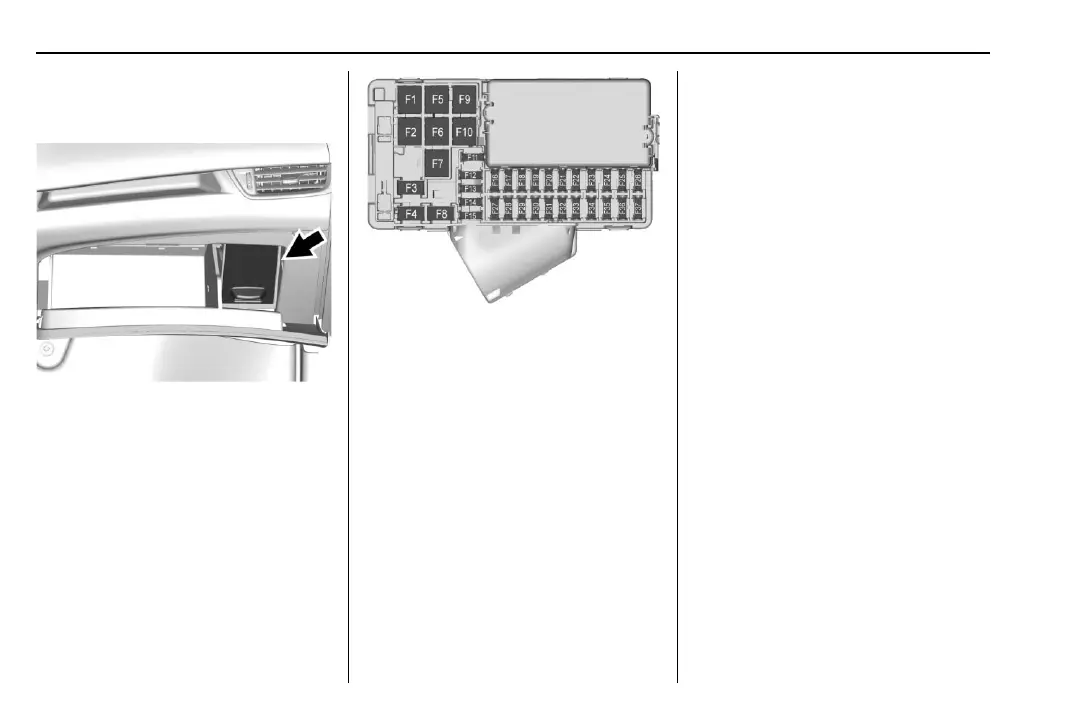

Instrument Panel Fuse
Block
The instrument panel fuse block is
in the glove box. To access the
fuses, open the fuse panel door
from the passenger side by pulling
it out.
To reinstall the door, insert the tabs
on the top of the door into the
console first, then push the door
back into its original location.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Fuses Usage
F1 –
F2 Front HVAC blower
F3 Power seat
F4 Lighter (China only)
F5 –
F6 Front power
windows
F7 –
F8 Accessory power
outlet
F9 Body control
module 8
Fuses Usage
F10 Rear power windows
F11 –
F12 Sunroof
F13 Front heated seats
F14 Exterior rearview
mirror
F15 Body control
module 3
F16 –
F17 Body control
module 6
F18 Body control
module 7
F19 Data link connector
F20 SDM
F21 HVAC
F22 Liftgate release
F23 Passive entry/
Passive start
F24 OCC sensor
F25 Steering wheel
controls
