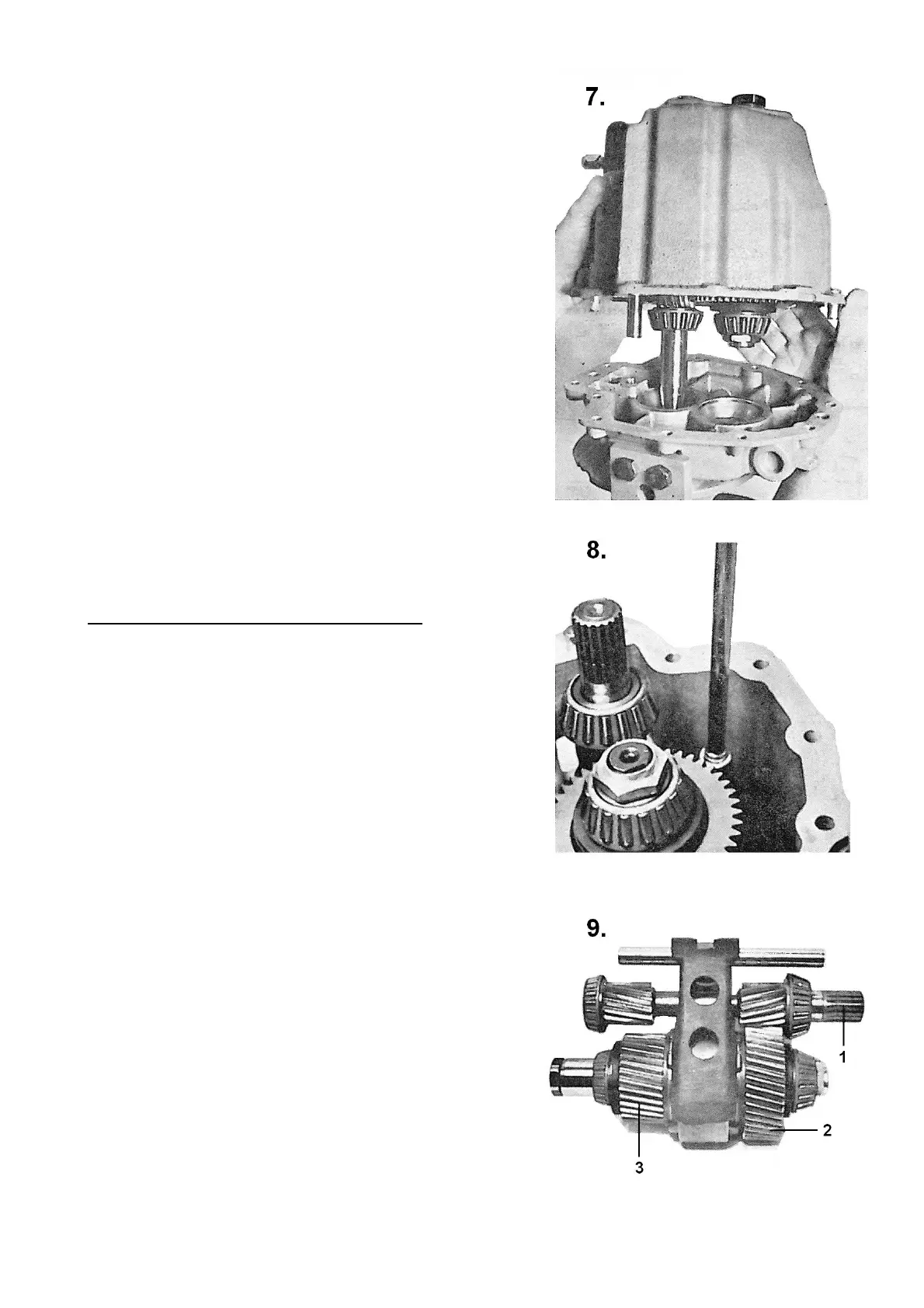

Drive back the fitting pins 2 – 3 mm in the
gearbox and lift one gearbox half with reversing
shaft, input and output shafts free of the other
gearbox half.
Protective sleeve 1 x 56 136 992 may be
fitted on the input shaft before the dismantling.
Removal of Input and Output Shaft
ProTake out the screws M8x25 and the gear-
wheel bolts and remove the washer plate.
At the fitting the screws have been smeared with
Loctite and consequently it may be necessary to
heat before they are loosened.
Loctite No. 241 has been used.
Lift the complete arrangement with input and
output shafts and shifting fork out of the housing.
Now the arrangement can be lifted free of each
other.
1. Input shaft
2. Wheel “ASTERN”
3. Wheel “AHEAD”
To Next Page
