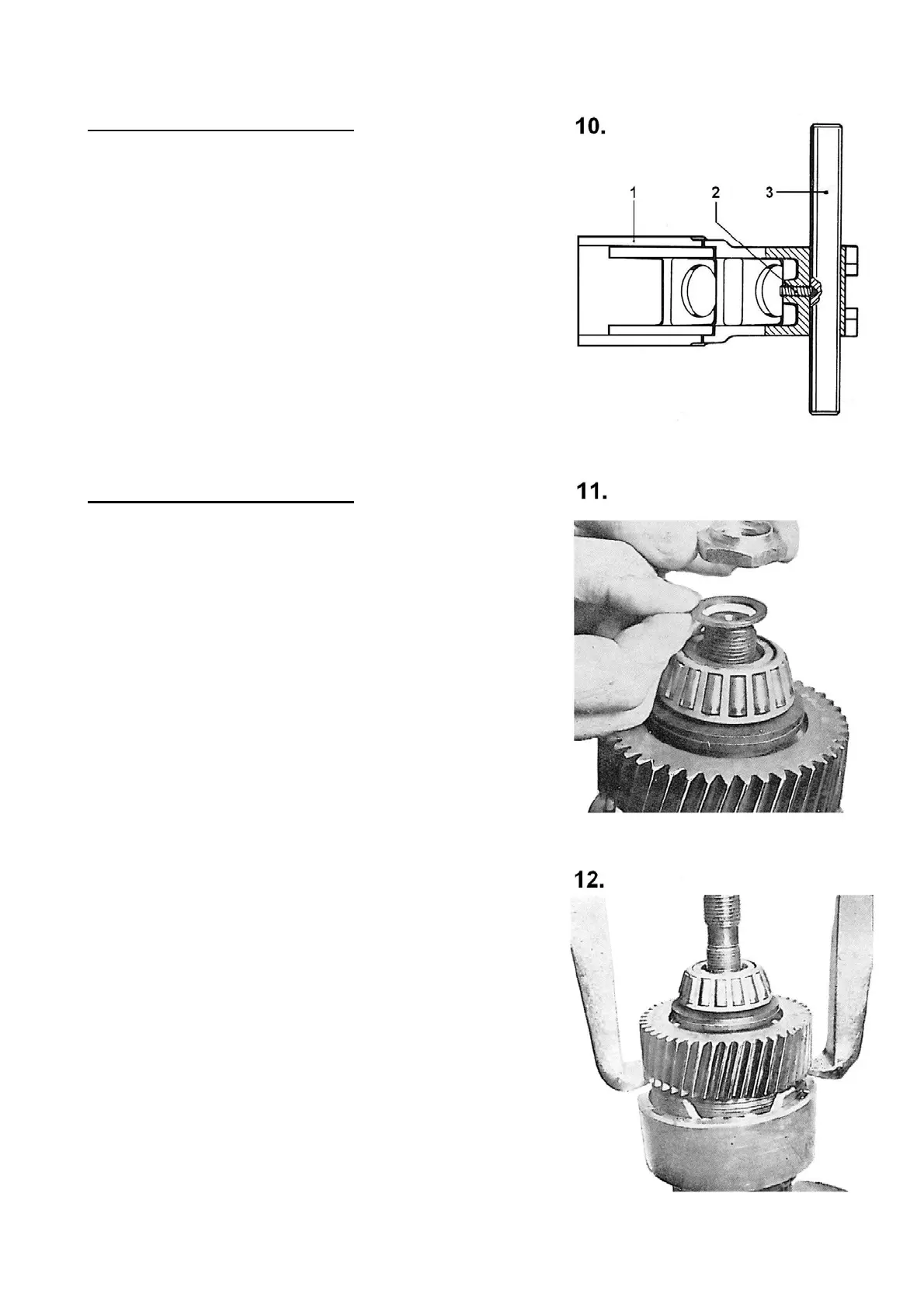

Dismantling of Shifting Fork
Screw out the pin M6x12 of the shifting fork and
press out the reversing shaft of the shifting fork.
At the fitting the threaded pin has been smeared
with Loctite No. 241 and so it may be necessary
to heat.
1. Shifting fork
2. Threaded pin
3. Reversing shaft
Dismantling of Output Shaft
Remove nut with washer “ASTERN”
Pull off the wheel “ASTERN” with a special tool
and take up washer, disc springs and tapered
roller bearing inner collar.
To Next Page
