R25
009W2229-R01

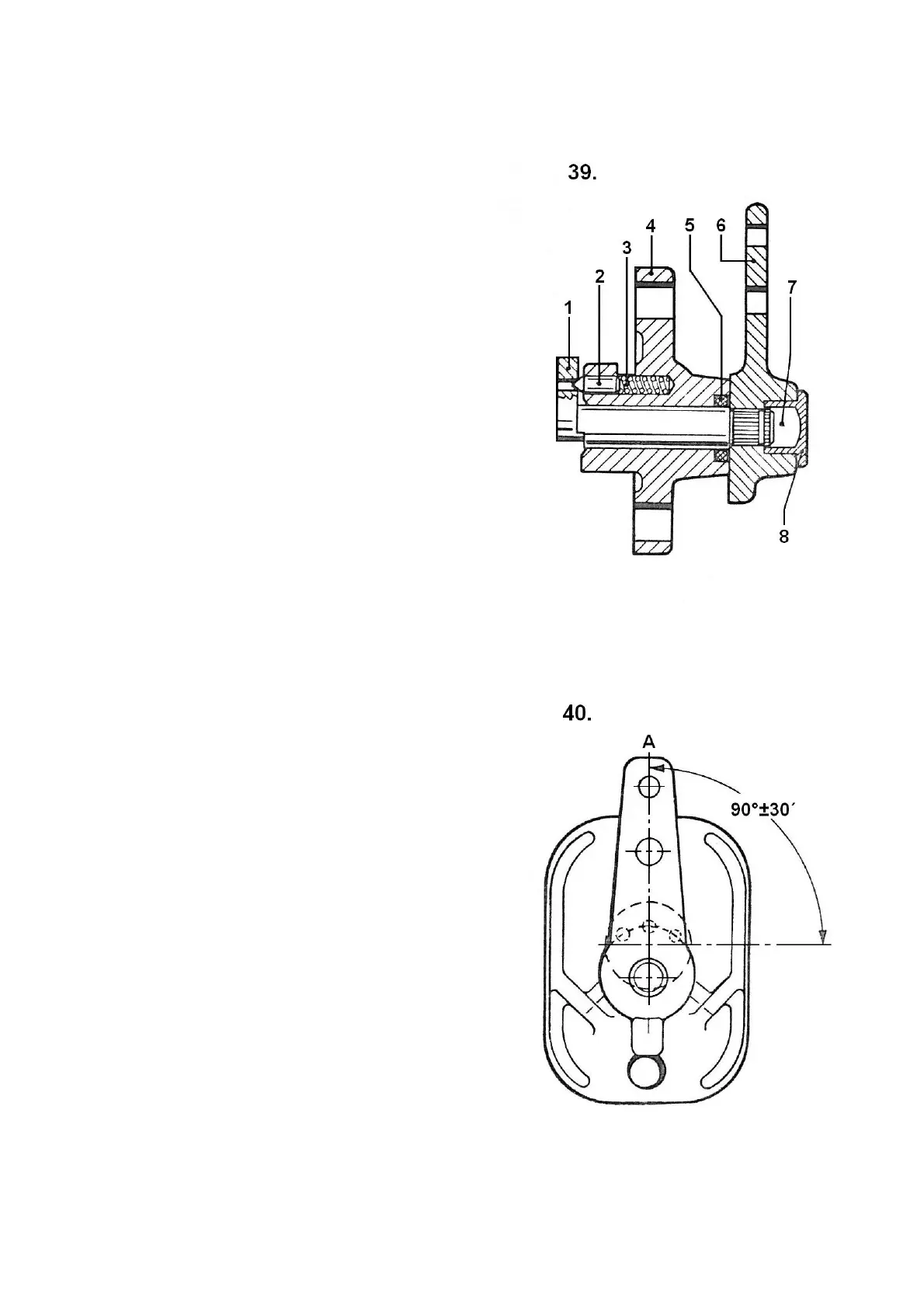

1 = Shifter shaft
2 = Shift pin
3 = Pressure spring
4 = Gearbox
5 = O-ring
6 = Shift control lever
7 = Grease lubrication
8 = Screw cap
Insert pressure spring, shift pin, oiled
shifter shaft and O-ring in the gearbox.
Press the shift control lever on to
theshifter shaft so that shift control
leveris placed in neutral position at
90°±30’to the gear shaft length.
Fit the screw cap with grease
lubrica-ting after the pressing on.
