ELECTRICAL REQUIREMENTS
120V AC
Single phase models
Note: This electrical service re-
quires 2 current carrying conduc-
tors (Neutral, and L1) and a separate
conductor for earth ground.

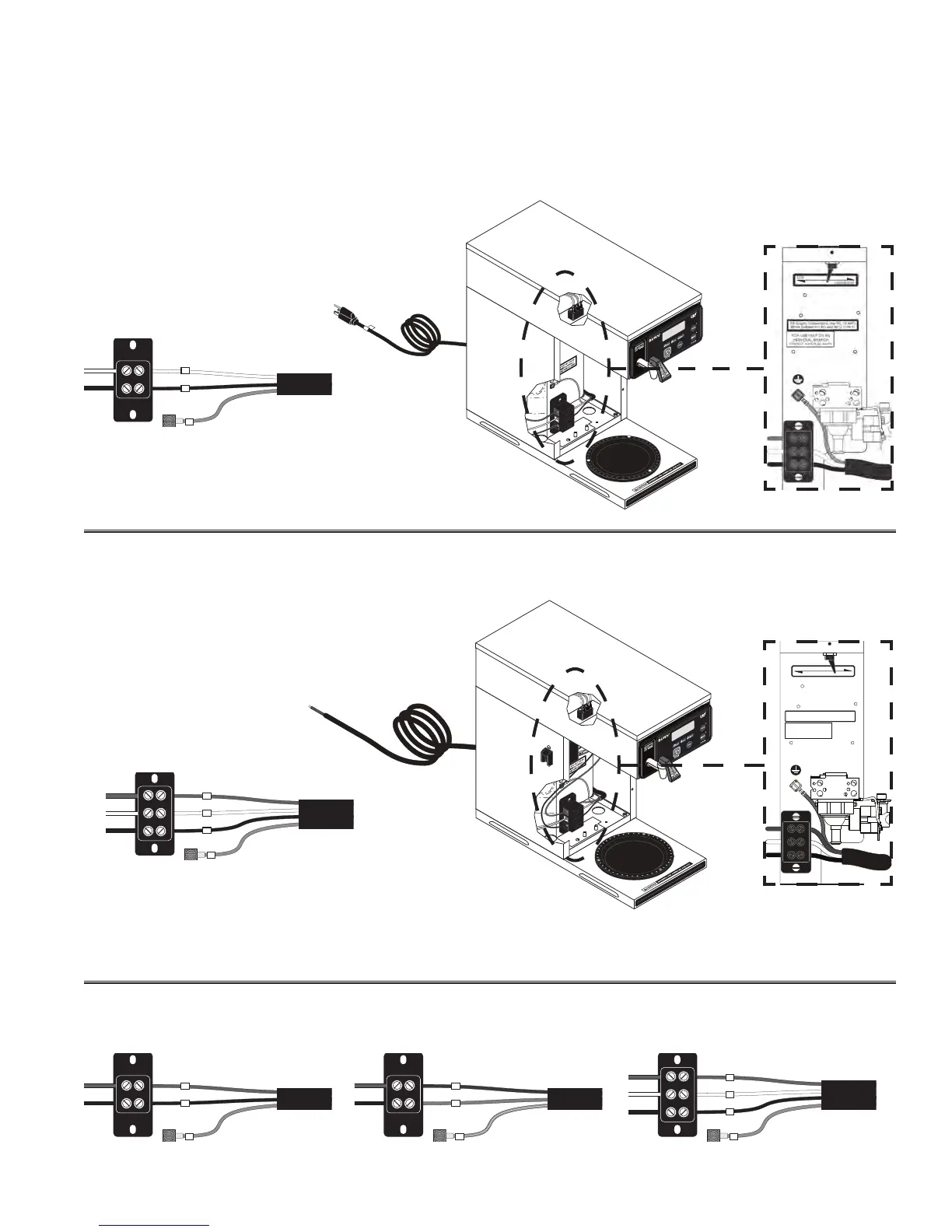

Requirements for brewers without an attached cord set are as follows:
Requirements for brewers with an attached cord set are as follows:
120V
120/208-240V
For Supply Connections, Use No. 12 AWG
Wires Suitable For At Least 90°C (194°F)
FOR USE ONLY ON AN
INDIVIDUAL BRANCH
CIRCUIT RATED 20 AMPS
Dual Voltage Switch
in 120V position
Dual Voltage Switch in
120/208-240V position
120/208 & 120/240V AC
Single phase models
Note: This electrical service
requires 3 current carrying
conductors (Neutral, L1 and
L2) and a separate conductor
for earth ground.
Single & Dual Volt Models
N
L1
G
L2 RED L2 RED
POWER CORD
WHITE
GREEN
NEUTRAL
L1 BLACK
WHITENEUTRAL
L2
L1 BLACK
WHITE
NEUTRAL
L1 BLACK
N
L1
G
POWER CORD
GREEN
WHITENEUTRAL
L1 BLACK
L2 RED L2 RED
L2
L1 BLACK
L1
G
POWER CORD
GREEN
L1 BLACK
120/208-240V 3 WIRE + GROUND
120V 2 WIRE + GROUND
240V 2 WIRE + GROUND
L2 RED NEUTRAL BLUE
N
L1 BLACK
L1
G
POWER CORD
GREEN/YELLOW
L1 BROWN
220-240 V 2 WIRE + GROUND
A & B Models
N
L1
G
L2 RED L2 RED
POWER CORD
WHITE
GREEN
NEUTRAL
L1 BLACK
WHITENEUTRAL
L2
L1 BLACK
120/208-240V 3 WIRE + GROUND
