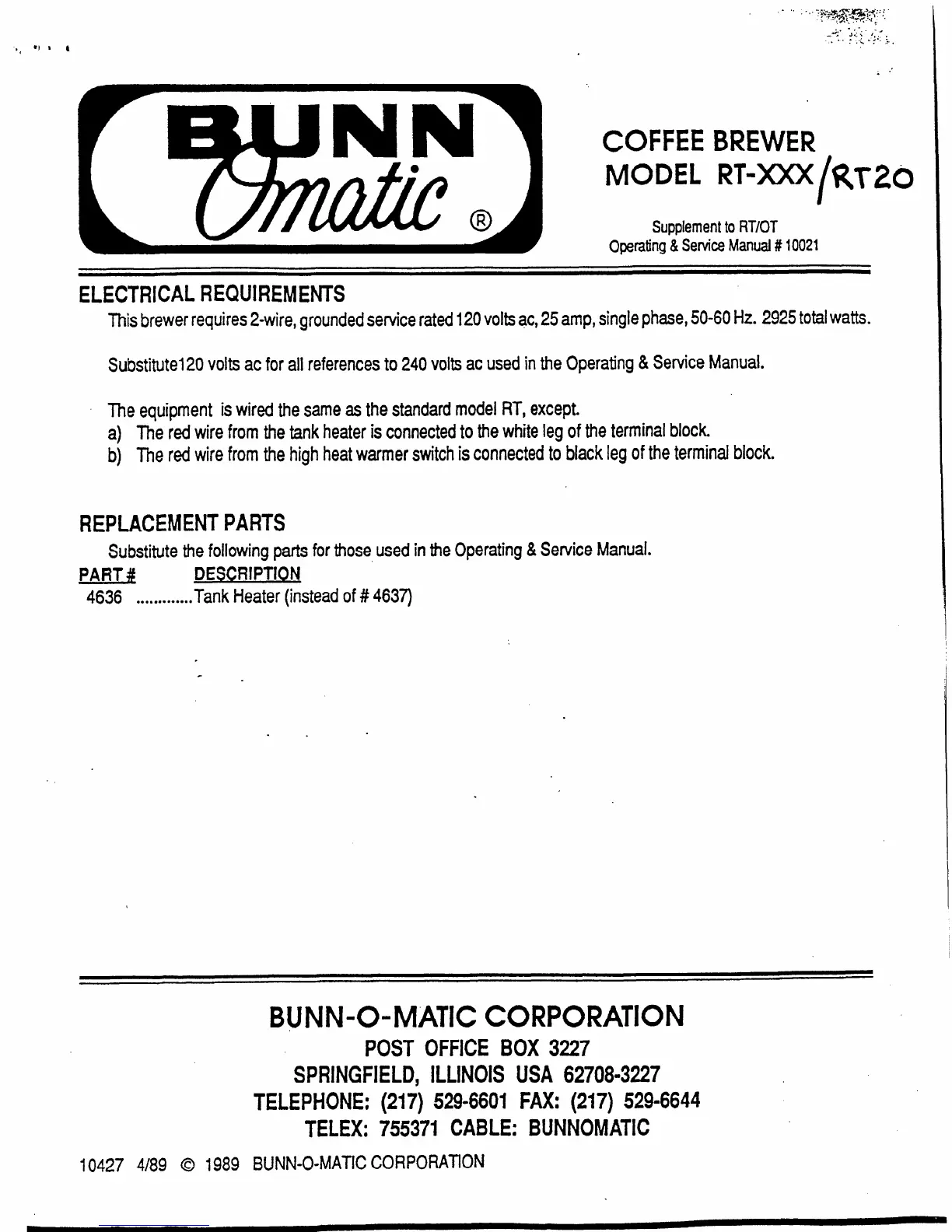

COFFEE BREWER/
MODEL RT-XXX
Rt2(~
Supplement to RT/OT
Operating & Service Manual # 10021
ELECTRICALREQUIREMENTS
This brewer requires Z-wire, grounded service rated 120 volts ac, 25 amp, single phase, 50-60 Hz. 2925 total watts.
Substitute1 20 volts ac for all references to 240 volts ac used in the Operating & Service Manual.
The equipment is wired the same as the standard model FIT, except.
a) The red wire from the tank heater is connected to the white leg of the terminal block
b) The red wire from the high heat warmer switch is connected to black leg of the terminal block.
REPLACEMENTPARTS
Substitute the following parts for those used in the Operating & Service Manual.
PART #
DESCRIPTION
4636
. . . . . . . . . . . . . Tank
Heater (instead
of # 4637)
BUNN-0-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS USA 6270813227
TELEPHONE: (217) 529-6601 FAX: (217) 529-6644
TELEX: 755371 CABLE: BUNNOMATIC
10427 4/89 0 1989 BUNN-O-MATlC CORPORATlON
