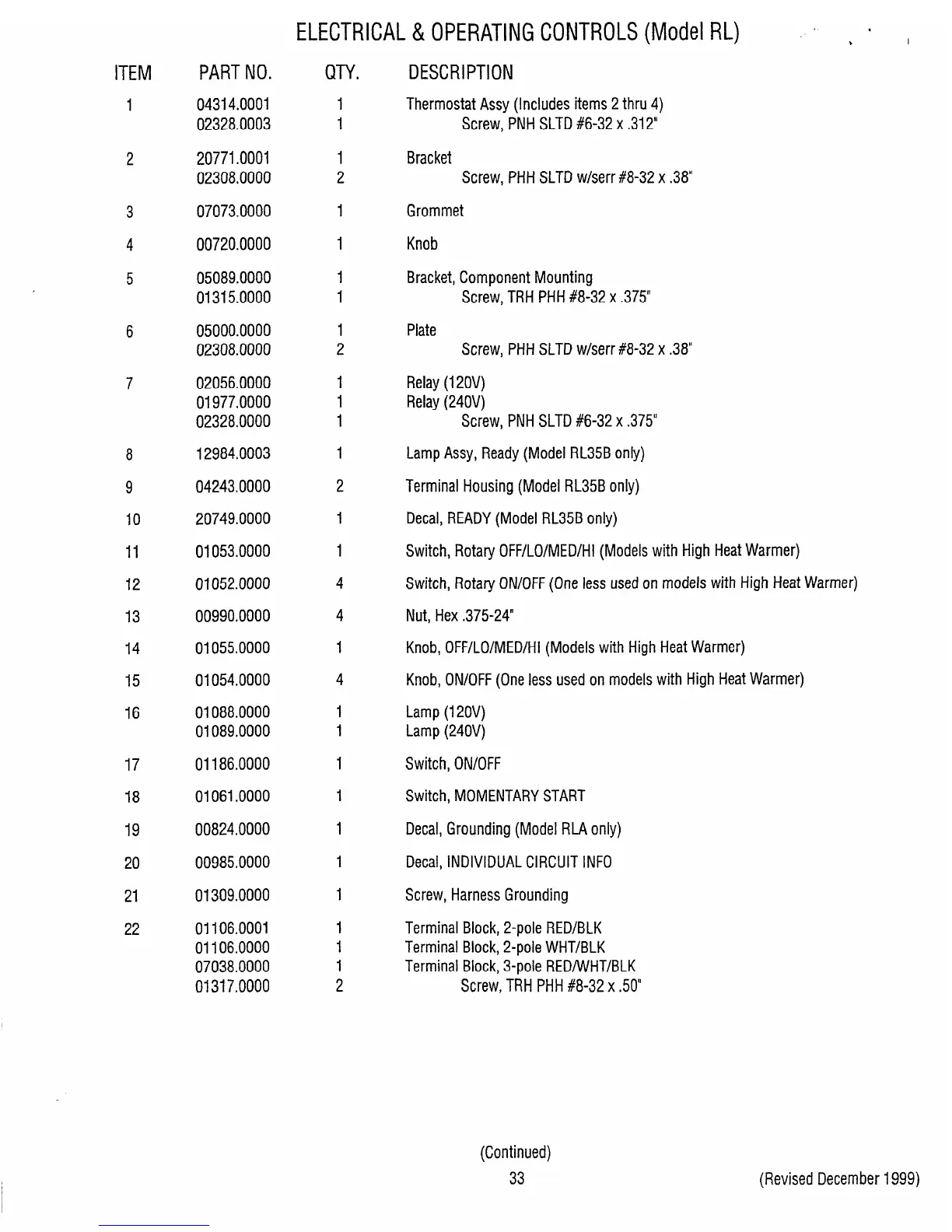

ELECTRlCAL&OPERATlNGCONTROLS(ModelRL) ' , 1 ,
ITEM
1
2
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
PARTNO.
QTY.
04314.0001
1
02328.0003
1
20771.0001
1
02308.0000
2
07073.0000
1
00720.0000
1
05089.0000
1
01315.0000
1
05000.0000
1
02308.0000
2
02056.0000
1
01977.0000
1
02328.0000
1
12984.0003
1
04243.0000
2
20749.0000
1
01053.0000
1
01052.0000
4
00990.0000
4
01055.0000
1
01054.0000
4
01088.0000
1
01089.0000
1
01186.0000
1
01061.0000
1
00824.0000
1
00985.0000
1
01309.0000
1
01106.0001
1
01106.0000
1
07038.0000
1
01317.0000
2
DESCRIPTION
Thermostat Assy (Includes items 2thru 4)
Screw, PNH SLTD#6-32x.312"
Bracket
Screw, PHH SLTD w/serr#8-32x.38"
Grommet
Knob
BracketComponent Mounting
Screw,TRH PHH#8-32x.375"
Plate
Screw, PHH SLTD w/serr#8-32x.38"
Relay (120V)
Relay (240V)
Screw, PNH SLTD#6-32x.375"
LampAssy,Ready(ModelRL35B only)
Terminal Housing (Model RL35B only)
Decal,READY(ModelRL35Bonly)
Switch, Rotary OFF/LO/MED/HI (Models with High Heat Warmer)
Switch, Rotary ON/OFF(Oneless used on models with High Heat Warmer)
Nut, Hex.375-24"
Knob,OFF/LO/MED/HI (Models with High Heat Warmer)
Knob,ON/OFF(Oneless used on models with High Heat Warmer)
Lamp (120V)
Lamp(240V)
Switch,ON/OFF
Switch,MOMENTARYSTART
Decal, Grounding (Model RLA only)
Decal,lNDlVlDUALClRClJlTlNFO
Screw, Harness Grounding
Terminal Block,2-pole RED/BLK
Terminal Block,2-pole WHT/BLK
Terminal Block,3-pole RED/WHT/BLK
Screw,TRH PHH #8-32x.50"
(Continued)
33 (Revised December1999)
