Bunn ULTRA-2 Use & Care Instructions

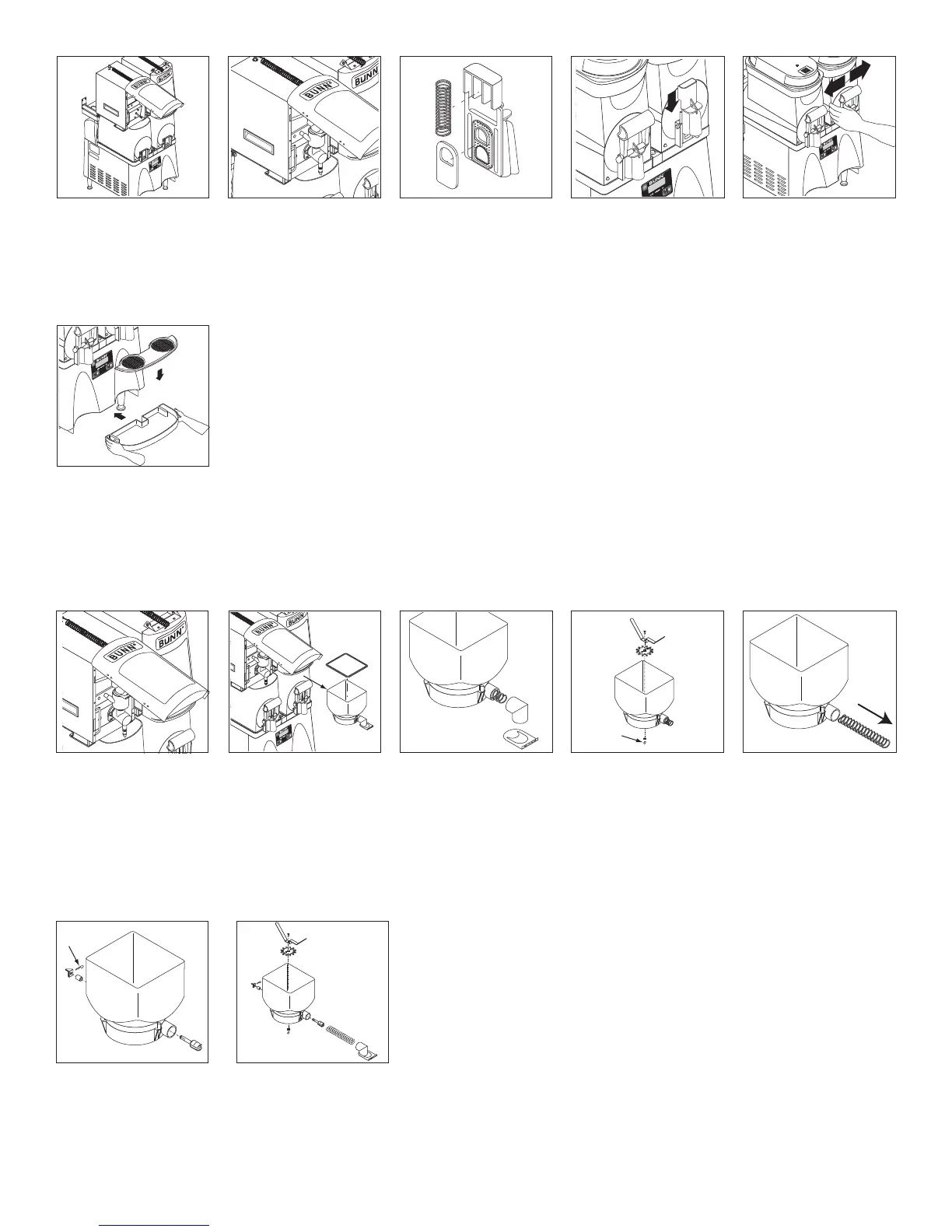

26. Slide PAF assembly
forward.
27. Reassemble and in-
stall all PAF parts. Close
Door.
28. Position the Faucet
Seal and Return Spring
in the Faucet Valve.
29. Slide the Faucet Valve
assembly into place on
the Hopper.
30. Press down on the
Valve to compress the
Spring. Position the Fau-
cet Handle over the Faucet
Valve one side at a time
and snap into place on
the Hopper.
31. Install the Drip Tray
and Cover.
1. Open the Cabinet Door
and allow the support
arms to lock in place.
THOROUGH CLEANING OF THE PAF HOPPER (Once a week)
2. Remove the Hopper/
Base Assembly from the
Cabinet. Remove the
Cover and empty the
contents.
3. Pull the Ejector Elbow
off the Hopper Base. Re-
move the Slide Gate from
the Ejector Elbow.
4. Remove the Wiper
Blade and Drive Gear by
removing the Retain-
ing Ring from the Wiper
Blade Shaft.
5. Remove Auger by pull-
ing it out the front of Hop-
per Base.
6. Remove the Auger
Drive Shaft by removing
Retaining Clip from Auger
Drive Shaft.
7. Wash all components in
a mild solution of dish de-
tergent using a bristle brush
when needed. Rinse and dry
each item thoroughly before
reassembling.
35113 111302

Bunn ULTRA-2 Specifications

General

Model	ULTRA-2
Type	Frozen Beverage Dispenser
Number of Hoppers	2
Refrigerant	R404A
Electrical	120V, 60Hz
Features	Touchpad display
Dimensions	32" H x 16" W x 24.5" D
