Bunn ULTRA-2A - Liquid Autofill System

60
DOUBLE CHECK VA LVE
(WHEN REQUIRED BY LO CAL REGUL AT IONS )
B.I.B. OR VENTED TANK
WATER REGUL ATOR
(WHEN PRESSURE IS ABO VE 80PSI)
WATER INLET
SHUT-OFF VA LVE
CO 2 Suppl y
CO 2 Syrup Pump
Optimal Pressure
Setting 40 -80 psi
SERVICE (CONT.)
Liquid Autofill System

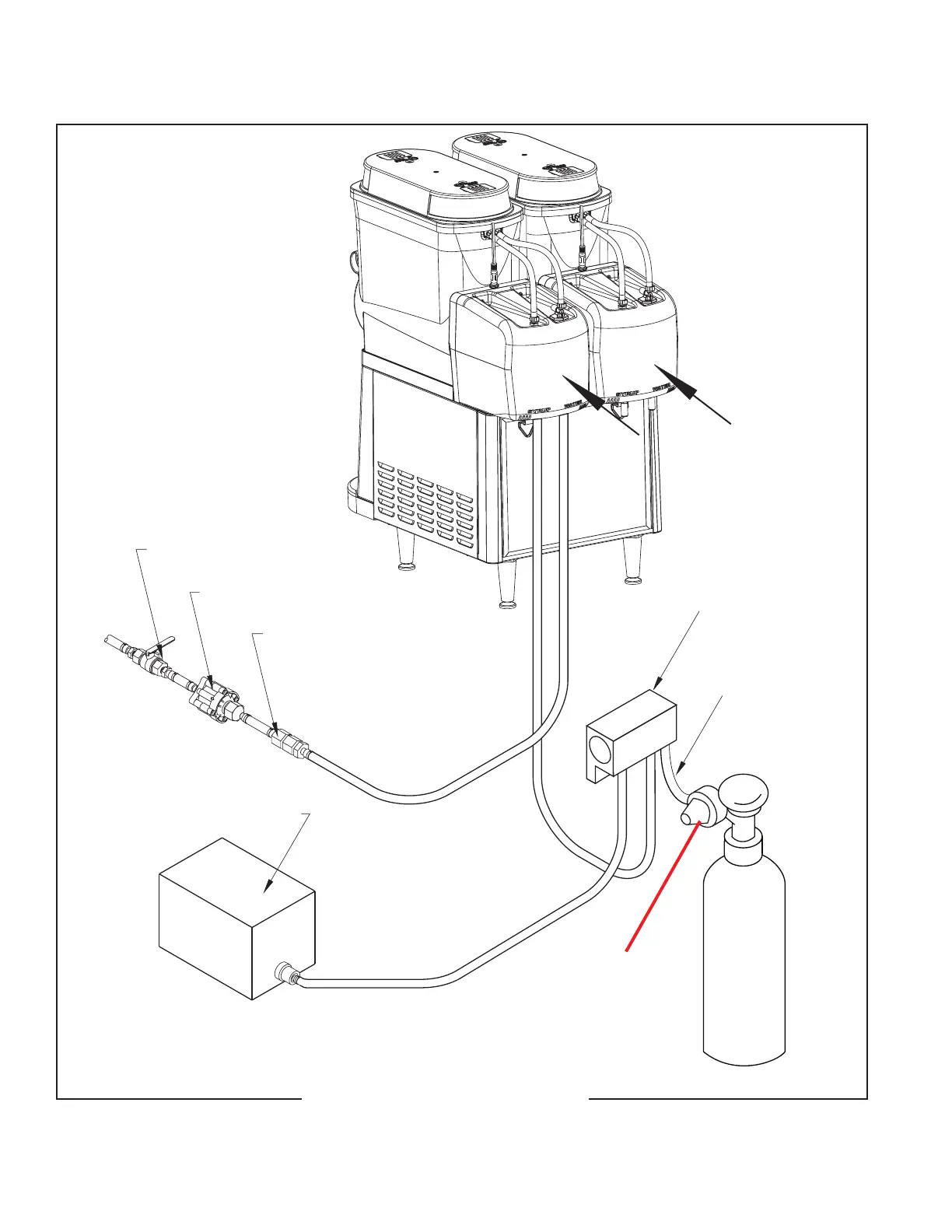

FIG. 68 LIQUID AUTOFILL SYSTEM
41084 081216
