Bunn ULTRA-2A - Coolant Schematic ULTRA-2

65

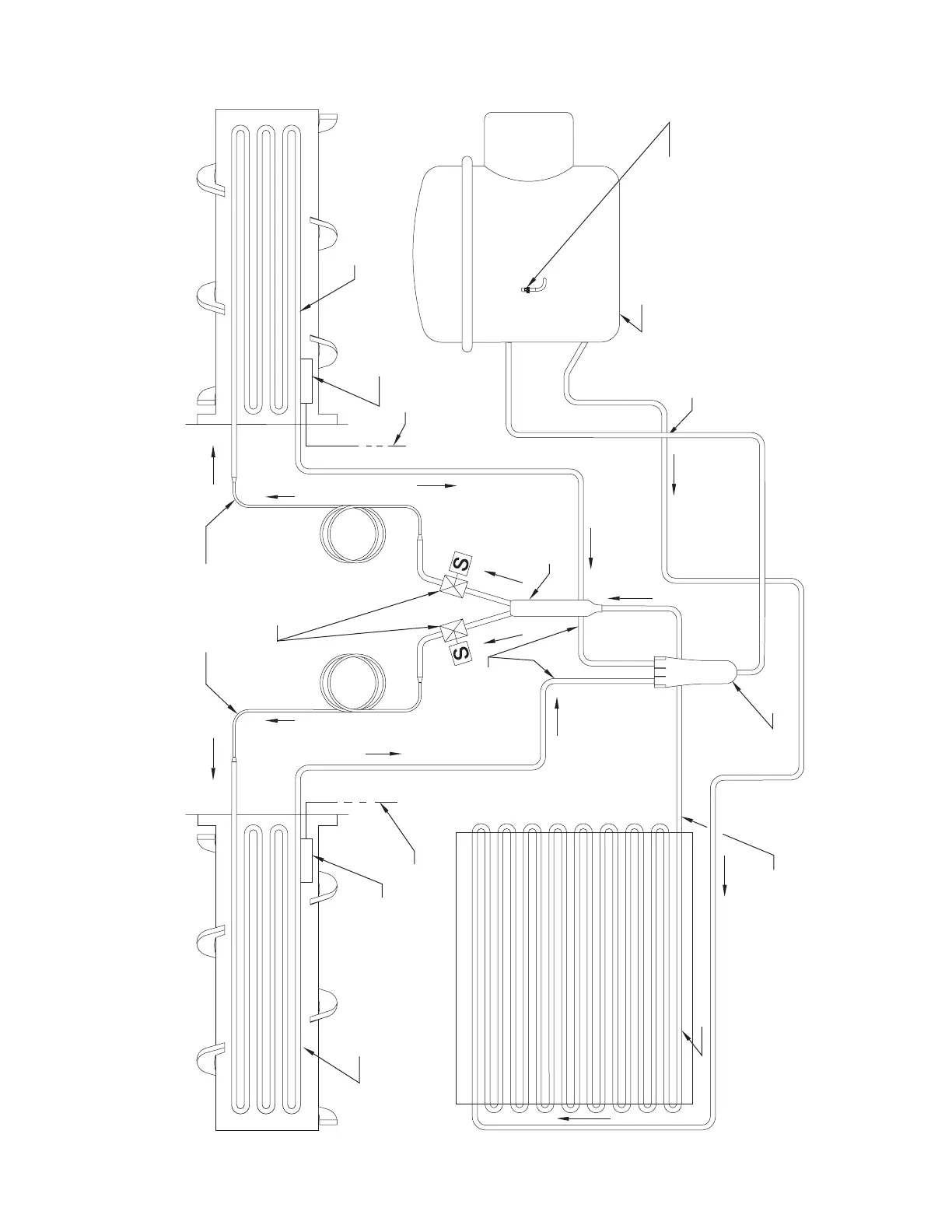

COOLANT SCHEMATIC ULTRA-2
COPPER TUBE
.25” O.D. X .030”
COPPER TUBE
.25” O.D. X .030”
SUCTION
ACCUMULATOR
COPPER TUBE
.312” O.D. X .032”
CONDENSER
LEFT EVAPORATOR
RIGHT EVAPORATOR
FILTER DRYER
COMPRESSOR
SERVICE VALVE FOR COOLANT CHARGE INFORMATION SEE DECAL ON SIDE PANEL
TO CONTROL BOARD
TO CONTROL BOARD
THERMISTOR TEMPERATURE SENSOR
THERMISTOR TEMPERATURE SENSOR
SOLENOID VALVE
ELECTRONICALLY
CONTROLLED
CAP TUBE
41084 102709
