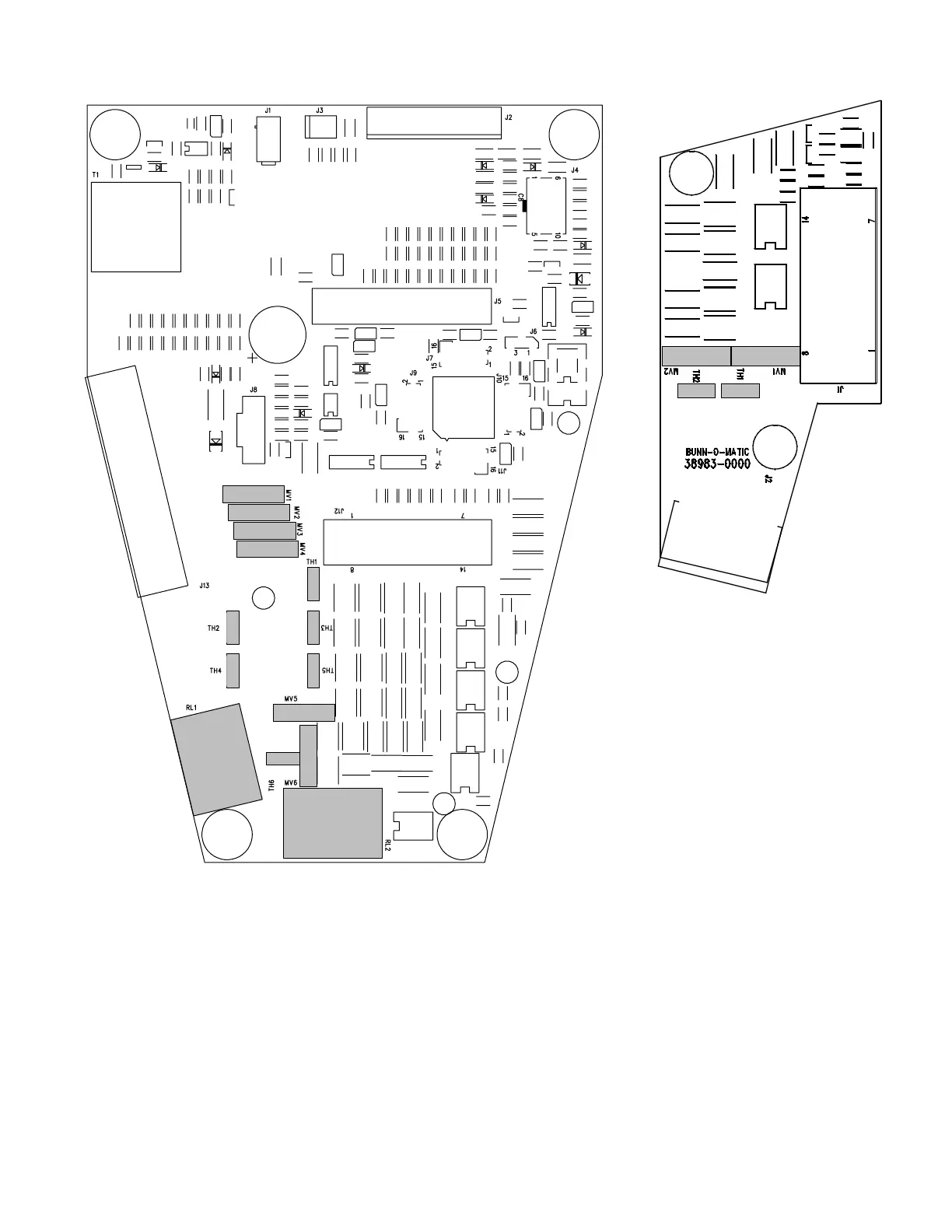

TRIAC MAPS for ULTRA-2
ULTRA-2 TRIACS
TH1 & MOV3 controls Left solenoid @ J13-15
TH2 & MOV1 controls Compressor Relay @ J13-17
TH3 & MOV4 controls Fan @ J13-14
TH4 & MOV2 controls Right solenoid @ J13-16
TH5 & MOV5 controls Left Auger @ J13-2 Reverse & J13-3 Forward
TH6 & MOV6 controls Right Auger @ J13-13 Reverse & J13-1 Forward
LIQUID AUTO-FILL TRIACS
TH1 & MOV1 controls Right fill solenoid @ J2-9
TH2 & MOV2 controls Left fill solenoid @ J2-4
LIQUID AUTO-FILL BOARD
41084 102709
