218 POWER AMPLIFIER
+
-
MONO Adapter
rechter Kanal
linker Kanal
- -
+
-
+
+
-
+
MAINS
G
G
+
-
MONO Adapter
MAINS
G
G
Do not switch your hi-fi system on again until you are sure that all the devices
are connected correctly. Set your preamplifier to a low volume first.
FIGURE 2

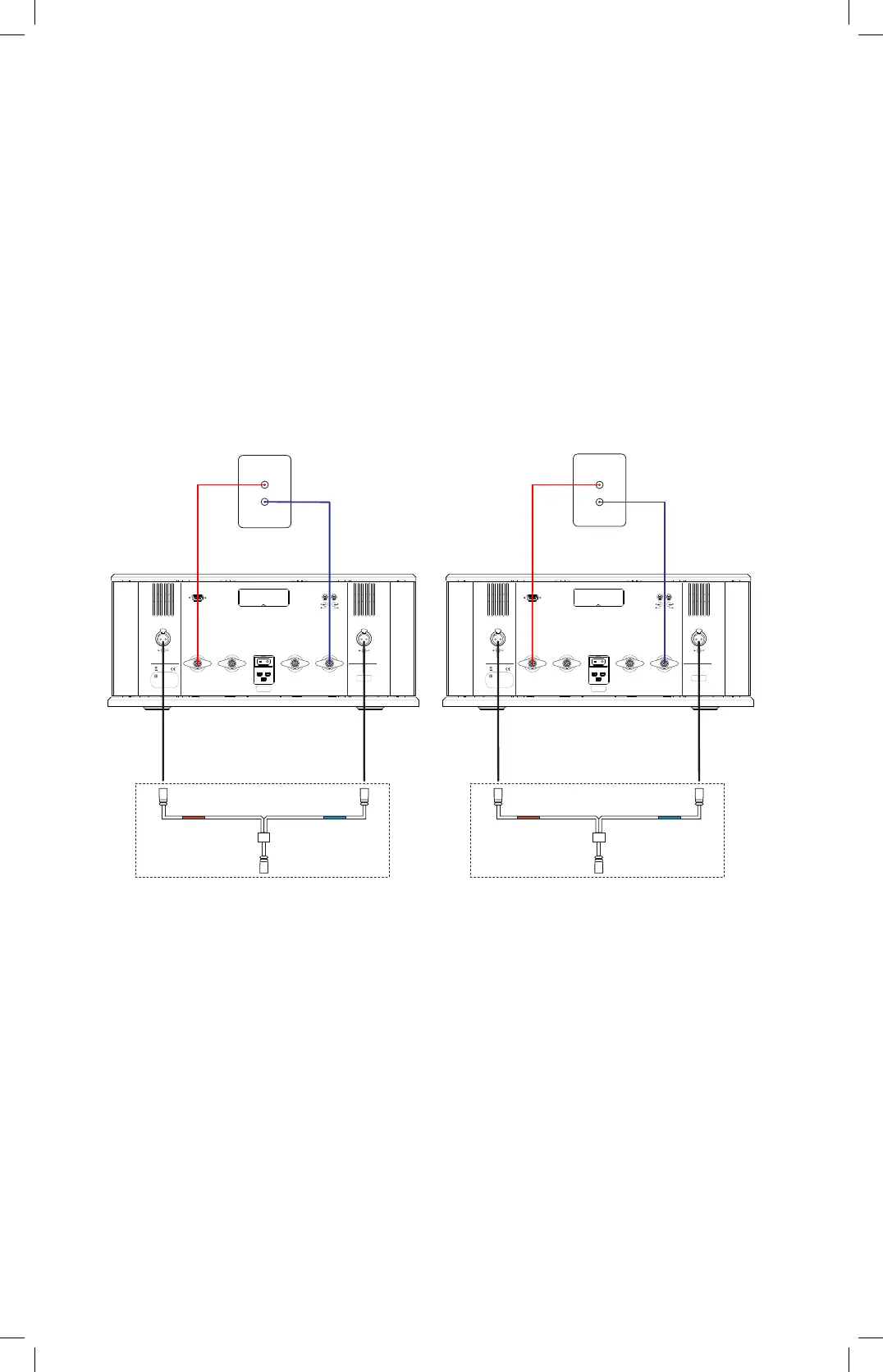

MONO MODE WIRING DIAGRAM
RIGHT CHANNEL LEFT CHANNEL
