Burmester 956 MK 2 - Wiring Diagrams and Accessories; Stereo Operation Wiring Diagram; Mono Operation Wiring Diagram; Bi-Amping Wiring Diagram

ACCESSORIES
4
14
+
-
+
-
+
-
15
+
-
+
-

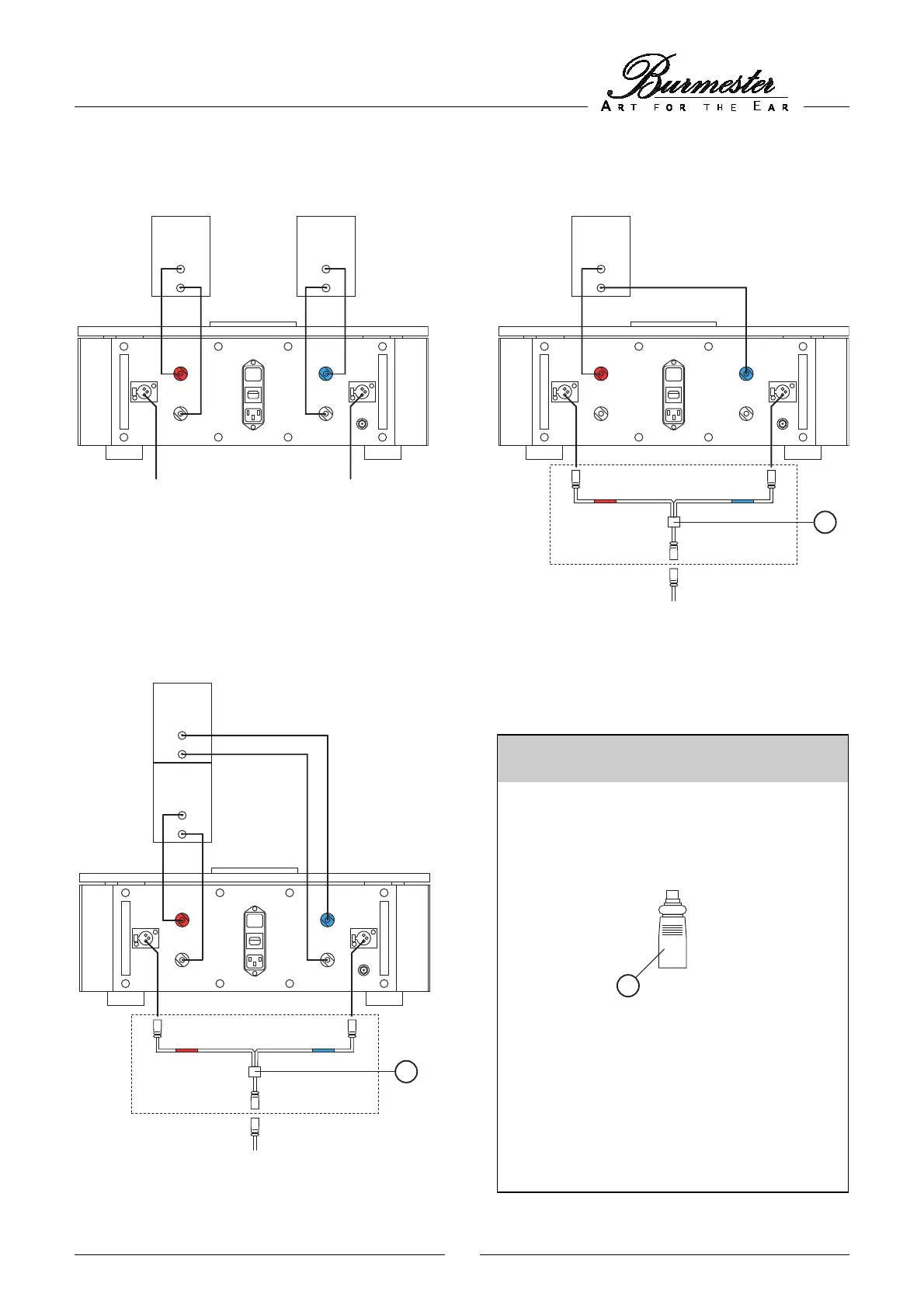

WIRING DIAGRAM FOR STEREO OPERATION WIRING DIAGRAM FOR MONO OPERATION (bridged)
from pre-amp
right channel
WIRING DIAGRAM FOR BI-AMPING
with a split passiv frequence-crossover
built into the speaker
from pre-amp right and
left channel respectively
from pre-amp right and
left channel respectively
from pre-amp
left channel
16
adapter plugs
XLR-RCA
Tweeter /
midrange driver
Bass driver
red blue
BI-AMP
adapter
MONO
adapter
red blue
necessary to connect unbalanced cables
to the balanced input terminals
supplied as standard
