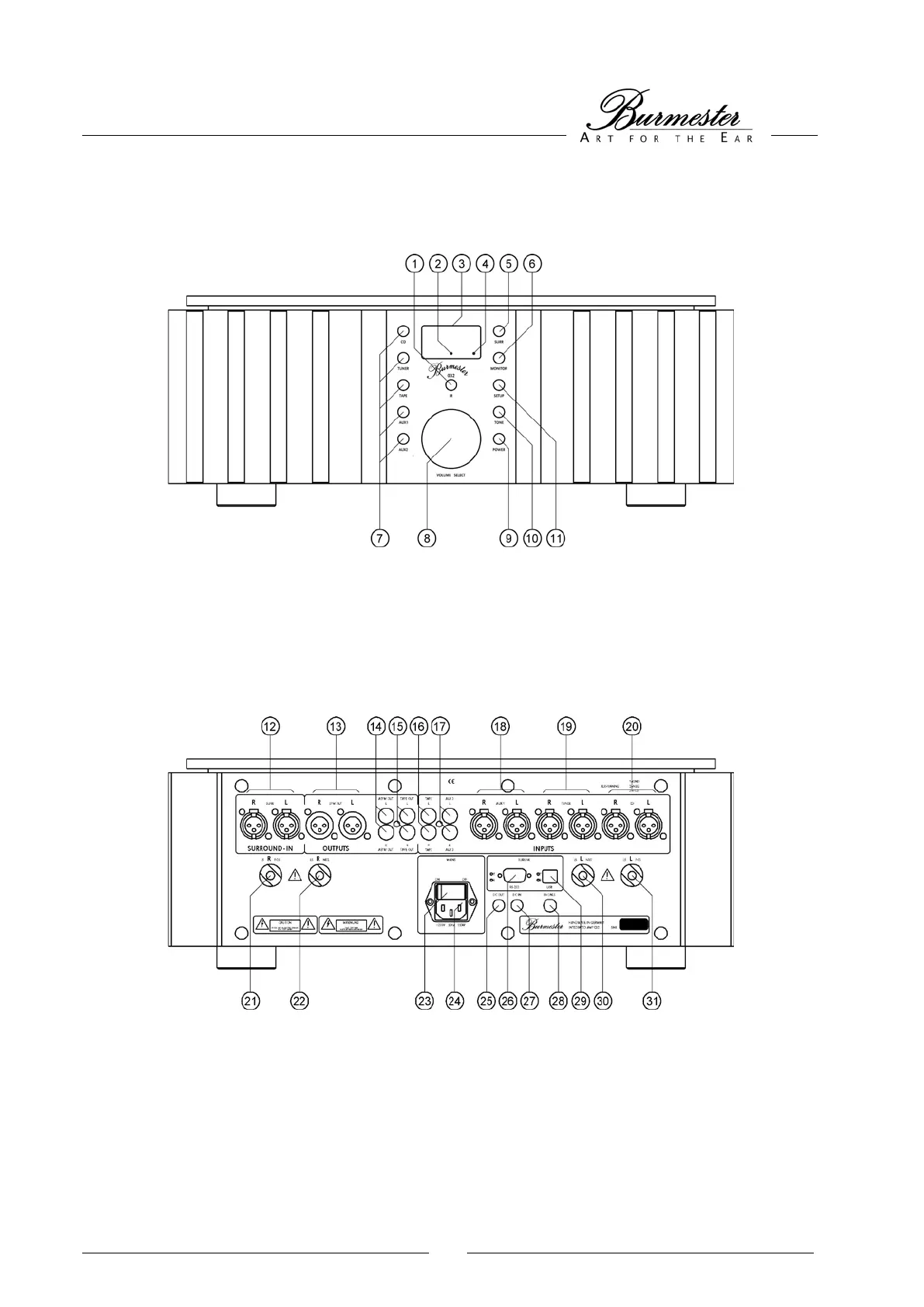

FUNCTIONAL OVERVIEW
FRO
NT PANEL
(1) IR receiver (7) INPUT selector buttons
(2) Stand-by LED shows stand-by mode (8) VOLUME knob
(3) Display (9) POWER button for turning the unit on or off
(4) TONE LED illuminates when tone control is activated (10) TONE button for activating/deactivating the
(5) INPUT button for SURROUND input tone control or the tone control setup
(6) MONITOR button for tape monitoring (11) SETUP button for configuring the 032
REAR PANEL
(12) SURROUND input balanced (21) Loudspeaker terminal right, positive
(13) PREAMP output balanced (22) Loudspeaker terminal right, negative
(14) PREAMP output unbalanced (23) AC mains switch
(15) TAPE output unbalanced, (24) AC mains terminal
for analog recording device (25) REMOTE output
(16) TAPE input unbalanced (26) BURLINK interface RS-232 with check LEDs
(17) AUX2 input unbalanced (27) REMOTE input
(18) AUX1 input balanced (28) Headphones jack
(19) TUNER input balanced (29) BURLINK interface USB with check LEDs
(20) CD input balanced (30) Loudspeaker terminal left, negative
(31) Loudspeaker terminal left, positive
