23 of 35
[
]
=
=
10 1.5
1.678
= 8.393
U
Osim
= The voltage at the amplifier output when the simulator is
connected.
U
O
= The required amplifier output voltage with the rated sensor load.
C
sim
= The characteristic value set on the strain-gauge simulator.
C
sens
= The characteristic value of the sensor to be simulated.

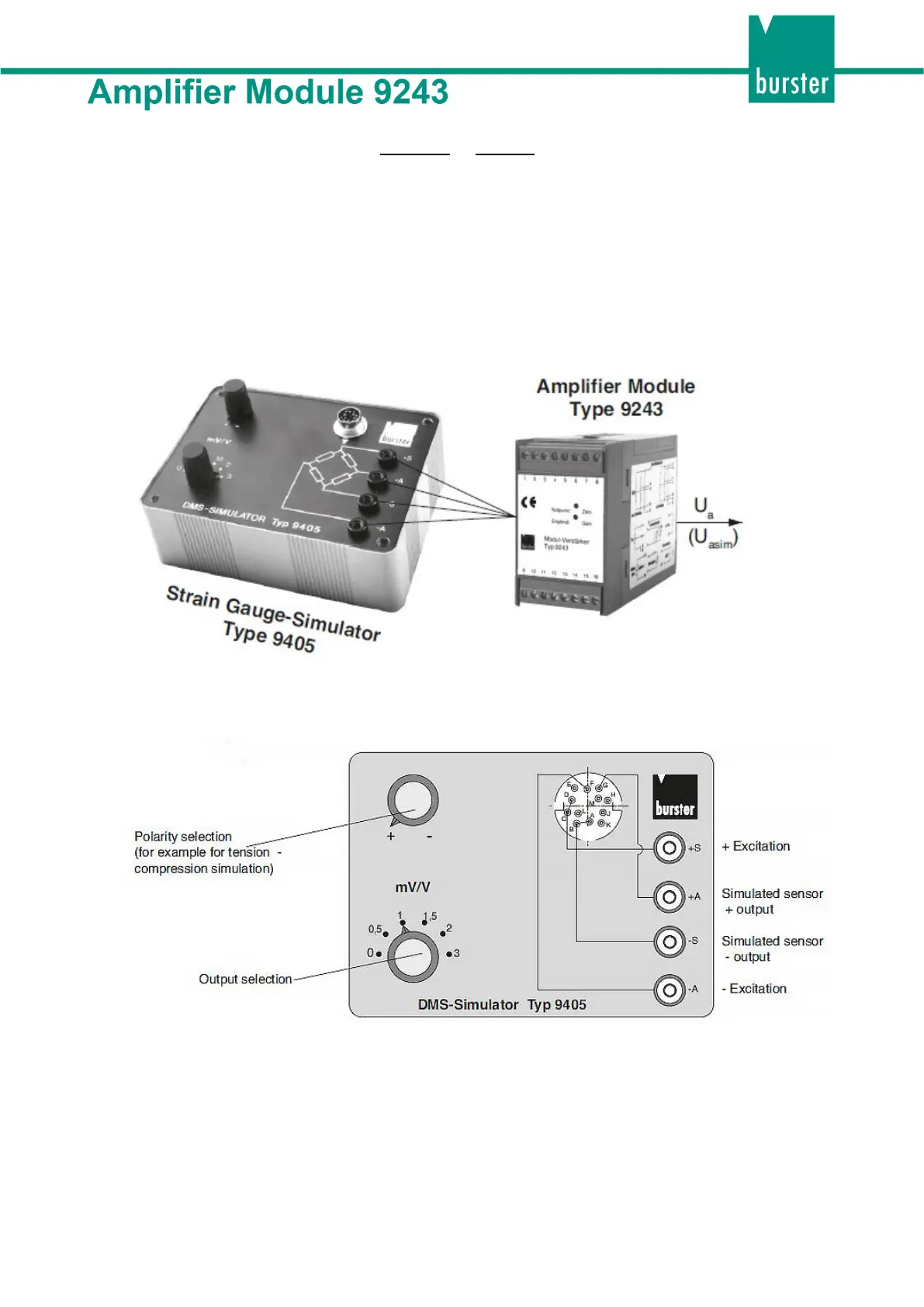

Once the strain-gauge simulator has been connected and the characteristic value has been set
to 1.5 mV/V, set the amplifier output to 8.939 V.
