10 Appendix
10.1 Sampleconnections
10.1.1 Strain-gauge full-bridge sensors

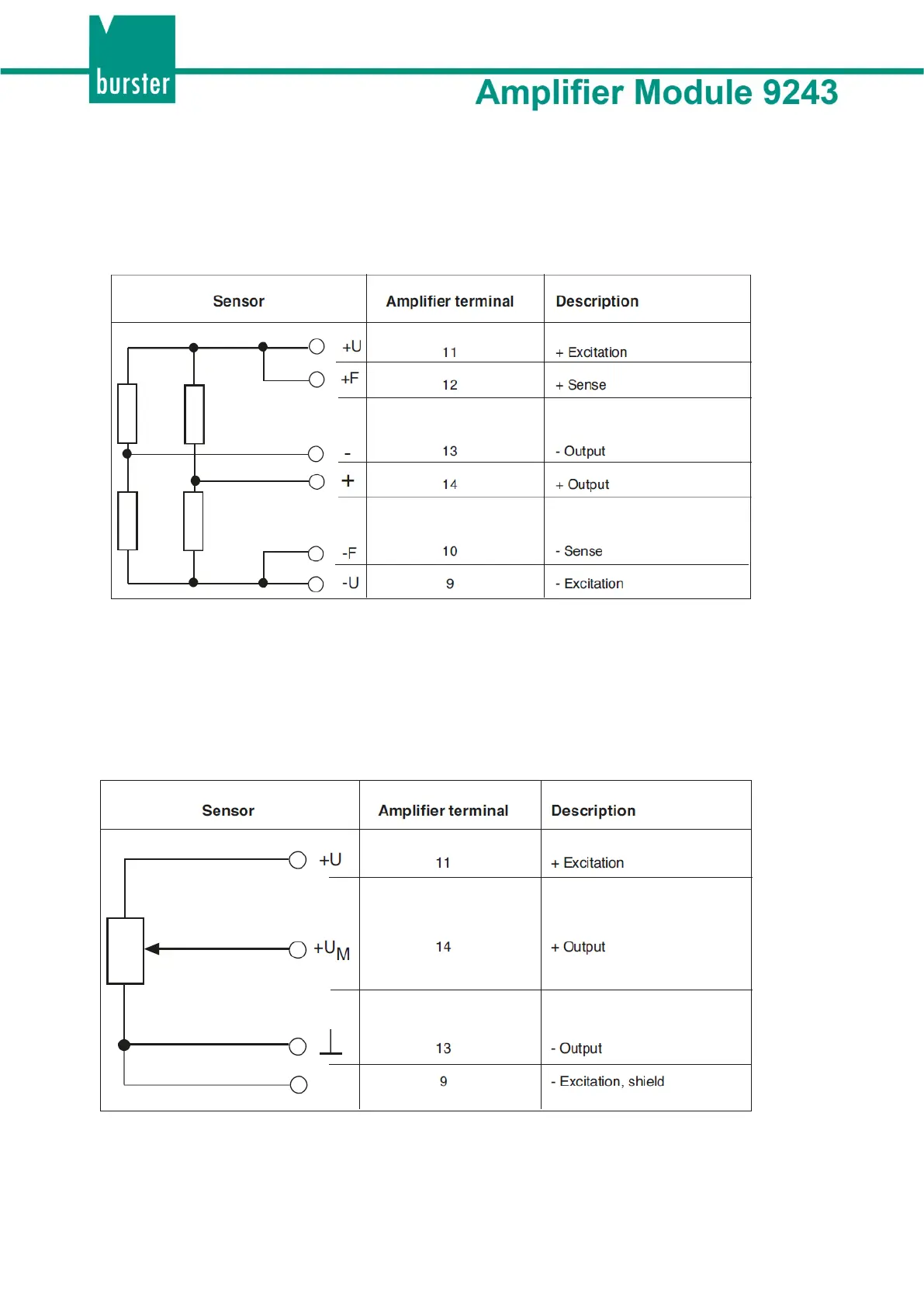

Figure 7: Strain-gauge full-bridge
Extension cable:
Even in the case of sensors without sense, use a 6-pole cable and bridge the sense lines of the
extension cable with the excitation lines in the sensor plug.
10.1.2 Potentiometric sensors
Figure 8: Potentiometric sensors
