10.1.3 DC/DC sensors

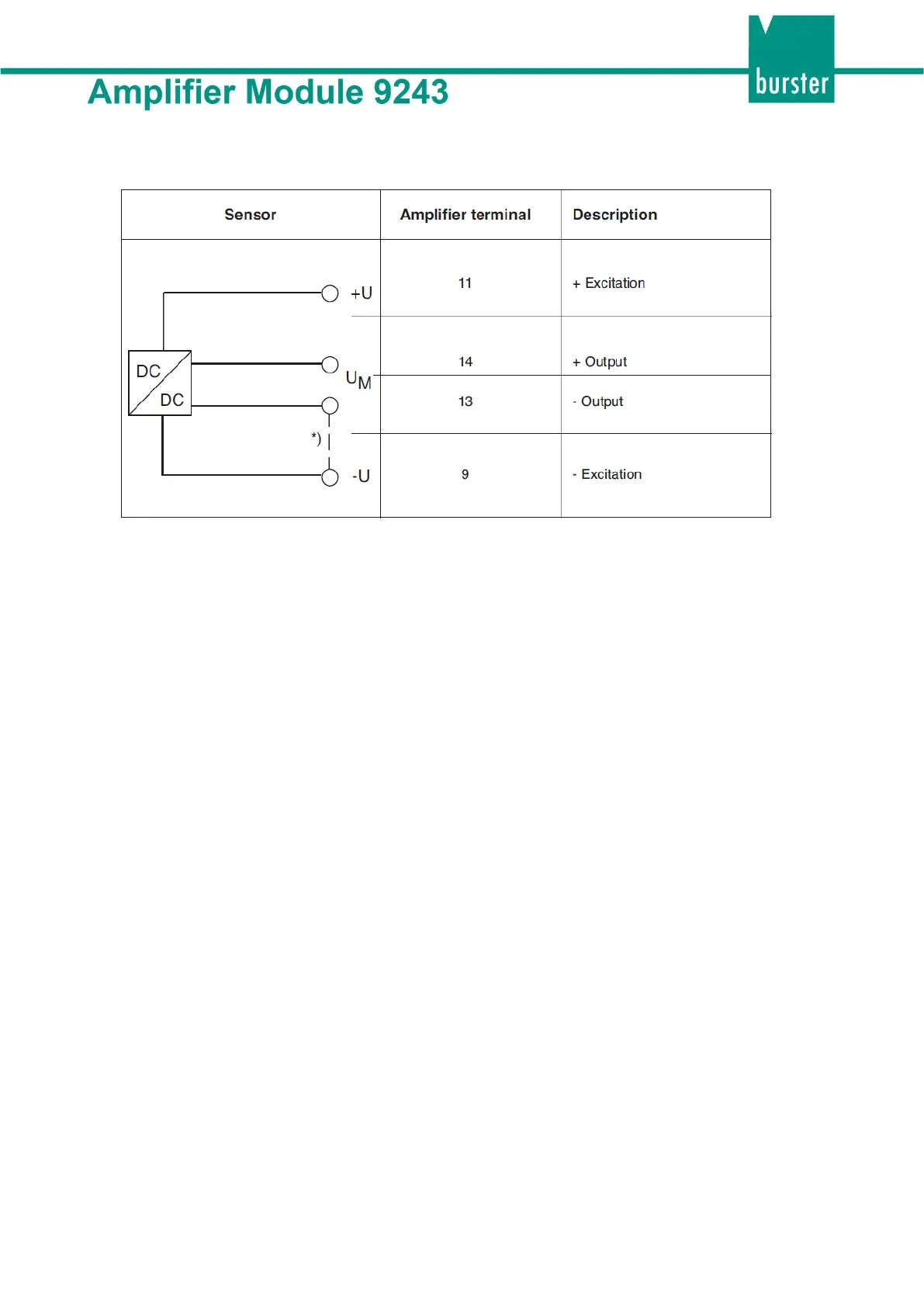

Figure 9: DC-DC sensors
*) If there is not an electrical connection between exitation and output of the sensor please
realize a bridge between clamp 9 and 13.
Assumption: The sensor is operated on 10 V (other voltages are external).
