6 AIM-50™ Installation Manual − Wall Mount Version 5000145 A01
Mounting Height
The proper height of the light should be set by the end user. This depends on the height of the
examination tables, types of procedures and the user’s preferences. (See Figure 1 below)
The following table shows the range of the light with the different mounting heights.
Mounting height A Pivot point B Lower limit C Higher limit D
8.0 ft (2440 mm) 67 in (1702 mm) 43 in (1092 mm) 84 in (2134 mm)
9.0 ft (2745 mm) 79 in (2007 mm) 55 in (1397 mm) 96 in (2438 mm)
10.0 ft (3050 mm) 91 in (2311 mm) 67 in (1702 mm) 108 in (2743 mm)
Range of Motion

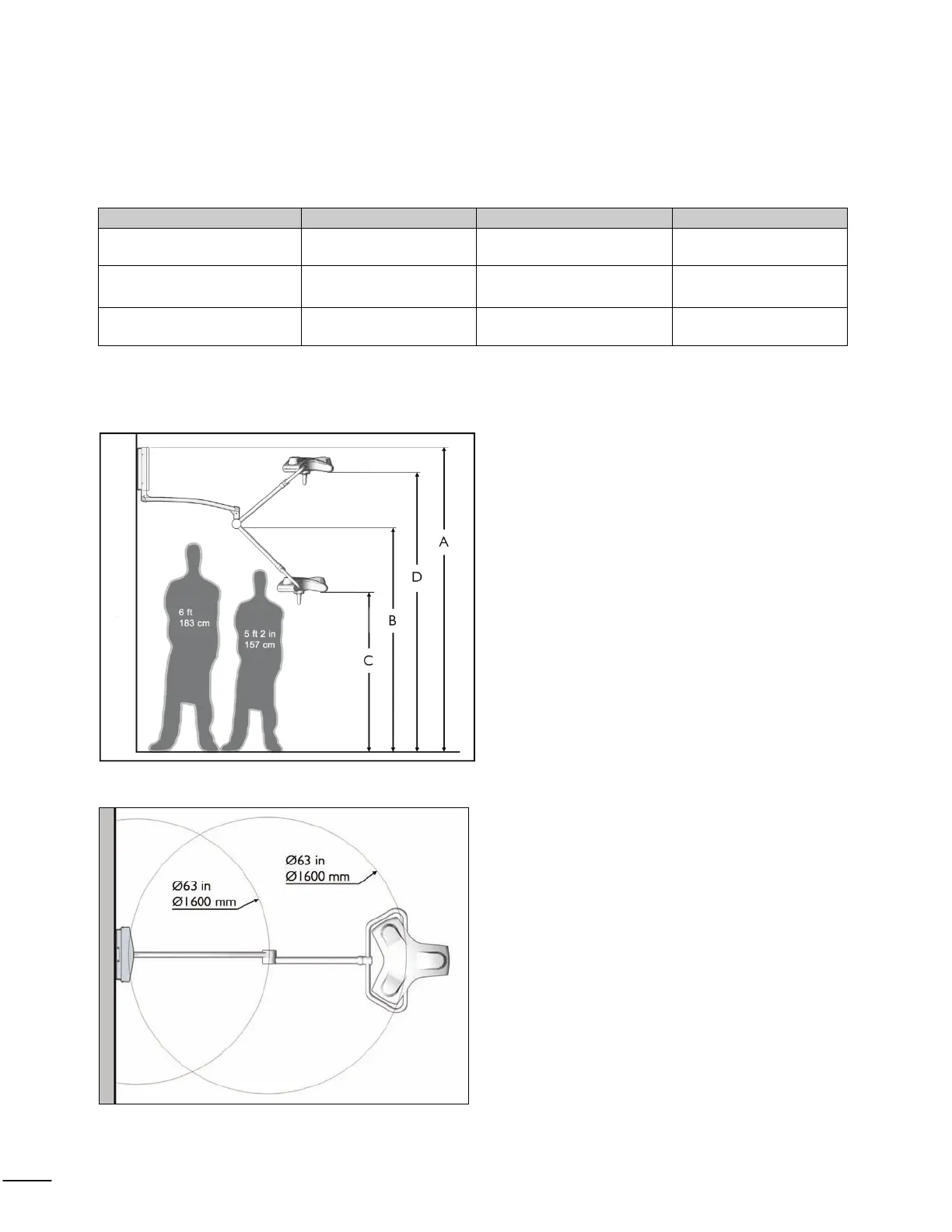

Figure 1: Vertical range of motion
Figure 2: Horizontal range of motion
