BUSCH Fossa FO 0015 A - Page 17

Electrical Connection | 6
Instruction Manual FOSSA FO 0015 A - FO 0035 B_EN_en 17 | 40

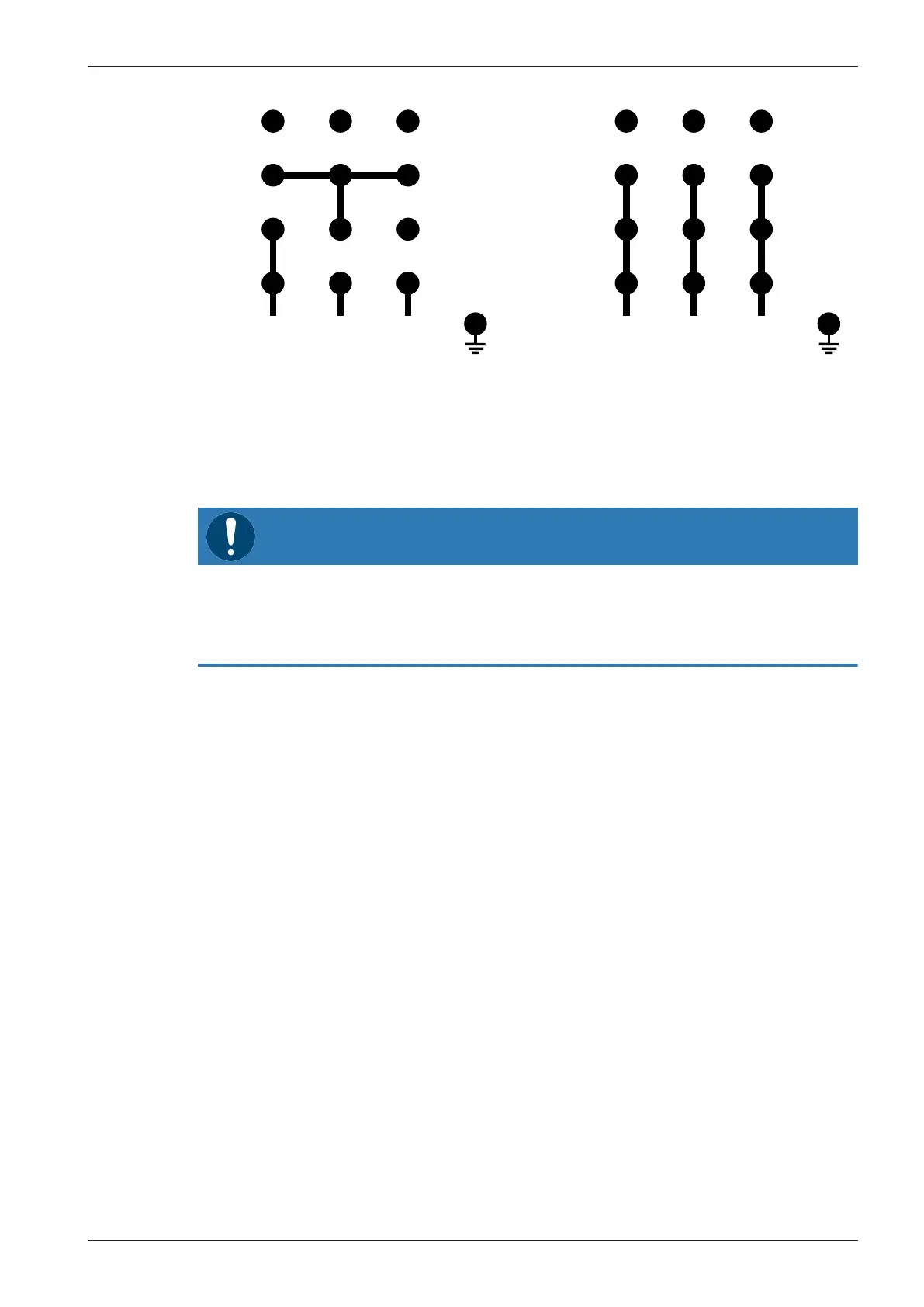

W2
V2
U2
U1
W1
V1
L1 L2 L3
PE
F2
F4
F1
H1
F3
H2
W2
V2
U2
U1 W1 V1
L1 L2 L3
PE
F2
F4
F1
H1
F3
H2
F1 ► motor fan wire 1 = White
F2 ► motor fan wire 2 = Brown
F3 ► motor fan wire 3 = Green
F4 ► motor fan wire 4 = Yellow
H1 ► counter wire 1
H2 ► counter wire 2
NOTICE
Incorrect direction of rotation.
Risk of damage to the machine!
● Operation in the wrong direction of rotation can destroy the machine in a short time! Prior to
start-up, ensure that the machine is operated in the right direction.
● Determine the intended direction of rotation with the arrow (stuck on or cast).
● Jog the motor briefly.
● With a phase rotation tester, check if the wiring corresponds to the correct direction of rotation.
If the rotation of the motor must be changed:
● Switch any two of the motor phase wires.
