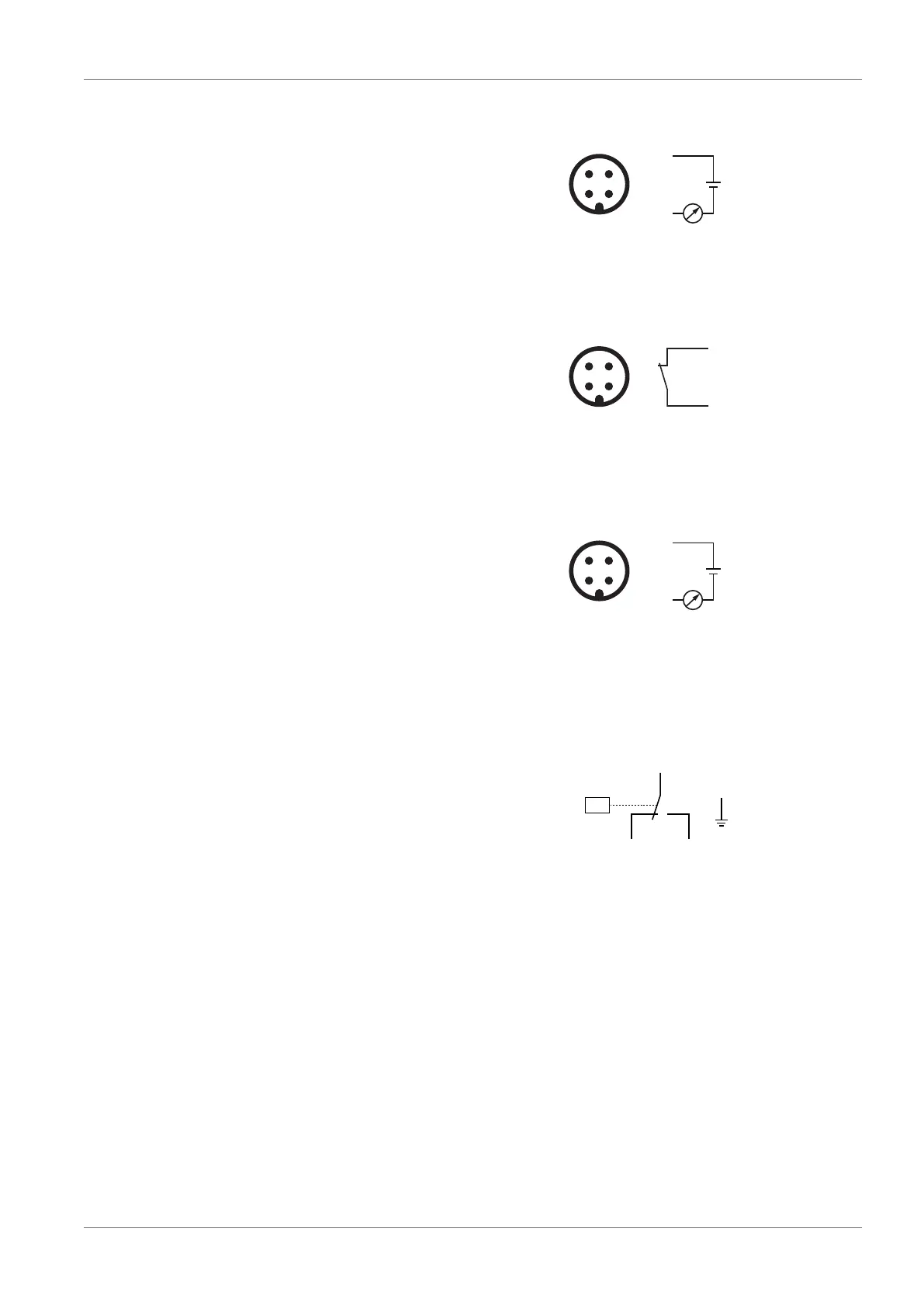

5.6.4 Wiring Diagram Resistance Thermometer (Optional)
Part no.: 0651563753
Connector: M12x1, 4-pin
Electrical data:
U = 10 … 35 VDC
4 ... 20 mA ► 0 ... 150 °C
Warning / trip signals: see Oil [►30].
1 2
4 3
3
1
+
-
1 = Brown ; 3 = Blue
5.6.5 Wiring Diagram Pressure Switch (Optional)
Part no.: 0653563750
Connector: M12x1, 4-pin
Electrical data:
U = ≤ 250 V AC/DC (50/60 Hz) ; I = ≤ 4 A
Switch point:
P pin 1 + 2 = 0.6 bar (overpressure)
1 2
4 3
2
1
P
1 = Brown ; 2 = White
5.6.6 Wiring Diagram Pressure Transmitter (Optional)
Part no.: 0653 204 444
Connector: M12x1, 4-pin
Electrical data:
U = 10 ... 35 VDC
4 ... 20 mA ► 0 ... 1.6 bar (abs.)
1 2
4 3
3
1
+
-
1 = Brown ; 3 = Blue
Warning signal:
P
warning
= 0.4 bar (overpressure)
Trip signal:
P
trip
= 0.6 bar (overpressure)
5.6.7 Wiring Diagram Pressure Switch of Water-oil Heat
Exchanger (Optional)
Part no.: 0653000 002
Electrical data:
U = 230 VAC ; I = 1 A
U = 24 … 100 VDC ; I = 0.5 … 2 A
Contact: Normally open
Switch point:
P
trip
= 2 bar (relative) ► min. admissible
pressure
2 4
P >
1
PE
