BUSCH SB 0530 D2 - Electrical Connection; Single-Phase Motor Wiring Diagram

Installation | 5
0870145123_SB0050-1400D0_D2_A0000_IM_en 9 / 24
5.3 Electrical Connection
DANGER
Live wires.
Risk of electrical shock.
• Electrical installation work must only be executed by qualified personnel.
• Make sure that the power supply for the motor is compatible with the data on the
nameplate of the motor.
• The electrical installation must comply with applicable national and international
standards.
• Provide an overload protection according to EN 60204-1 for the motor.
• Make sure that the motor of the machine will not be affected by electric or electro-
magnetic disturbance from the mains; if necessary seek advice from Busch.
• Connect the protective earth conductor.
• Electrically connect the motor.
NOTICE
Incorrect connection.
Risk of damage to the motor!
• The wiring diagrams given below are typical. Check the inside of the terminal box for
motor connection instructions/diagrams.

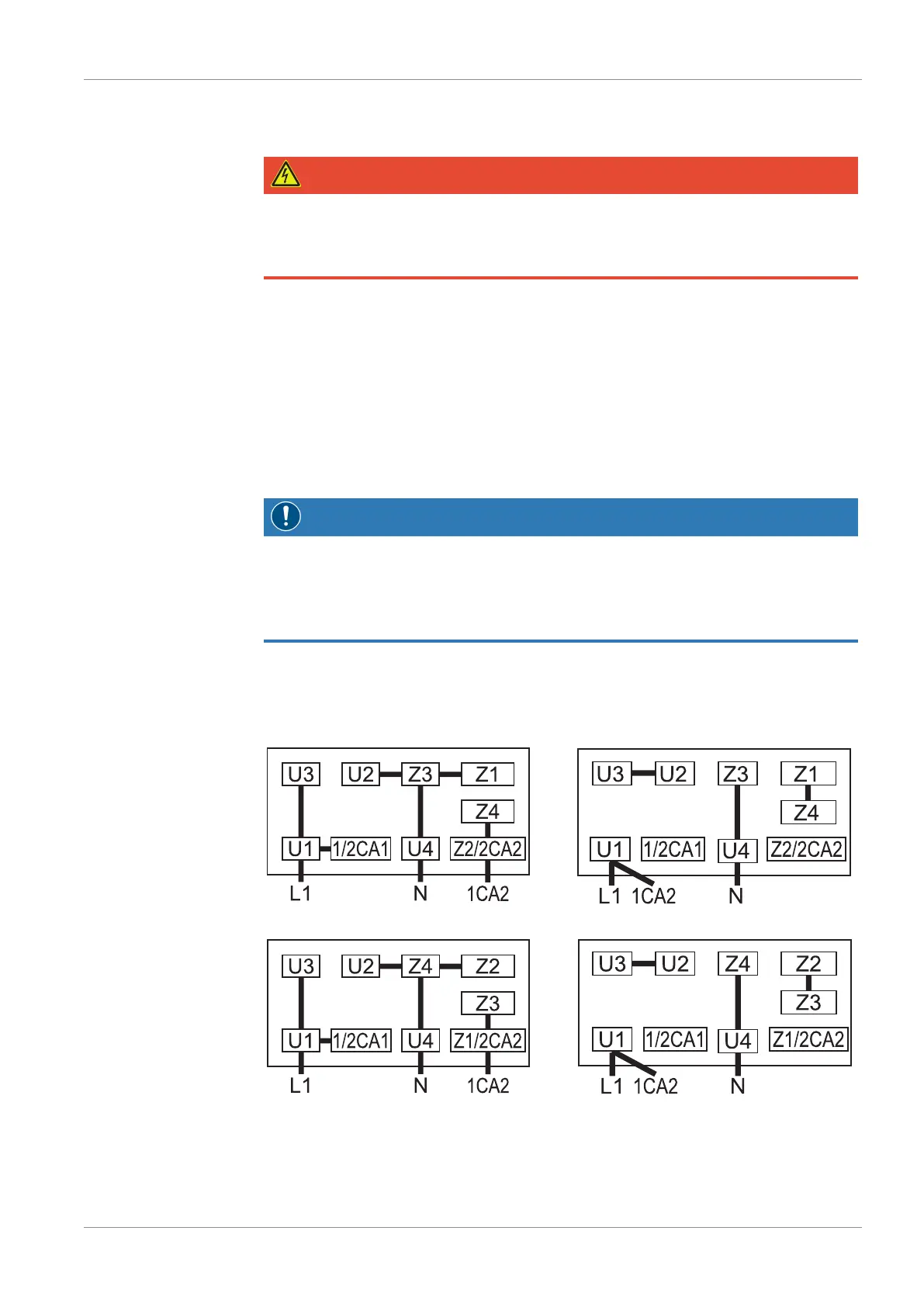

5.3.1 Wiring Diagram Single-Phase Motor
Low voltage: High voltage:
Low voltage (with motor protection): High voltage (with motor protection):
