ASSEMBLY
DHM7 05/21 Assembly Section 3-5
© 2021 Alamo Group Inc.
ASSEMBLY

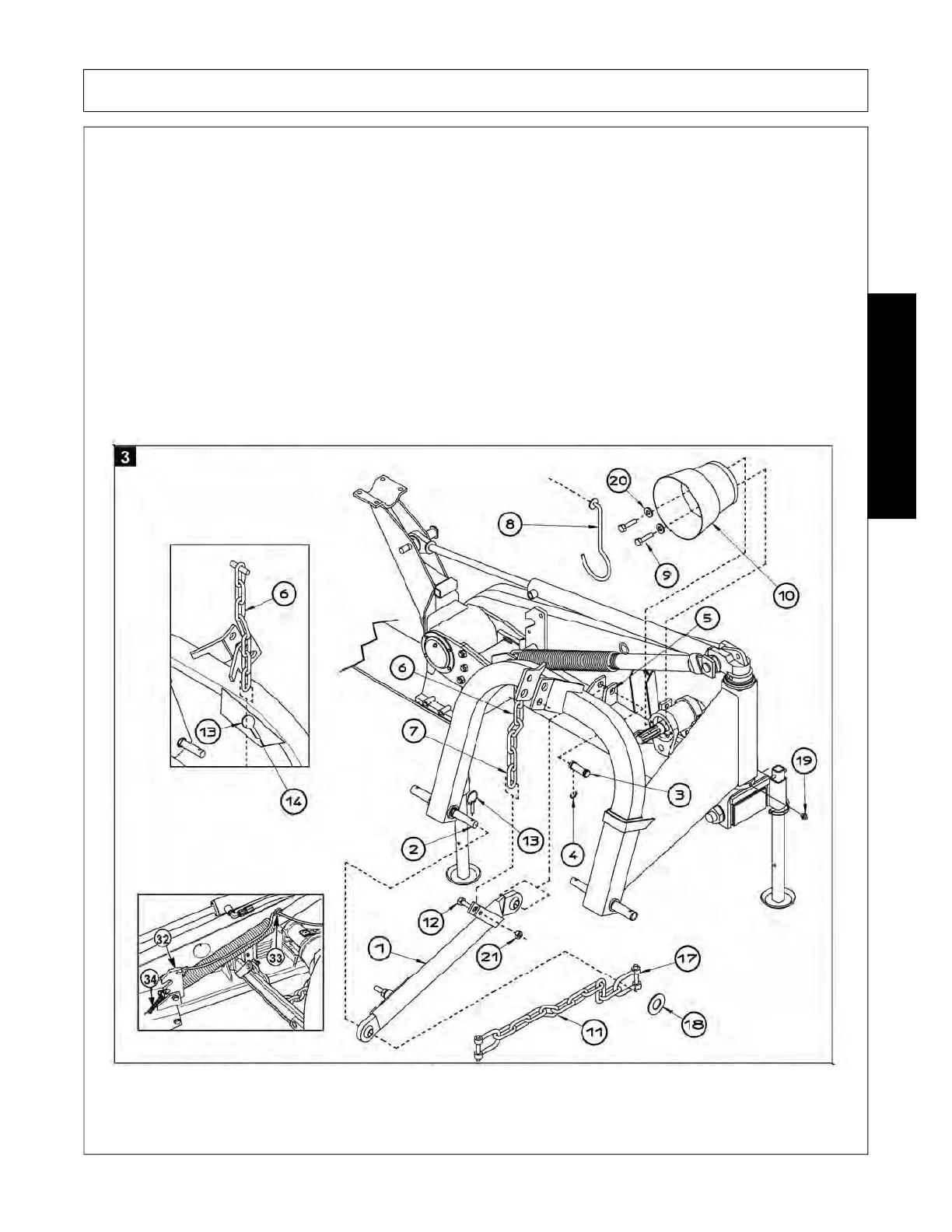

Refer to fig. 3 and carry out the following steps in the order indicated:
1. Mount safety bar 1, hoist chain 11 with two clevis 17 and washer 18 (Ø23xØ39x3.5) in pin 2 and fasten
with peg 13.
2. Use pin 3 D 20 x 67 (D 3/4” x 2”5/8) to assemble safety bar 1 into slot 5 and fasten into position with E-clip
4.
3. Insert chain 6 (for adjustment see 7.3) into hole 13 on the arc and fasten one ring on the chain into slot 14.
4. Use screw 12 M 12 x 55 (D 1/2” x 2” 10/64) and nut 21 to fasten ring 7 on chain 6 to safety bar 1.
5. Use screws 9 M 8 x 12 (D 5/16” x 1/2”) and flat washer 20 (Ø8.5/Ø24) to assemble casing 10.
6. Insert cardan support 8 into one of the holes not used by the pin on the third point.
7. Mount grease nipple 19.
8. Tie the rope to the safety latch 32 and then thread it through the steel circle 33 (see figure detail).
9. Remember to link the spring 34 to transport hook 32 (see figure detail).
