ASSEMBLY
DHM7 05/21 Assembly Section 3-6
© 2021 Alamo Group Inc.
ASSEMBLY

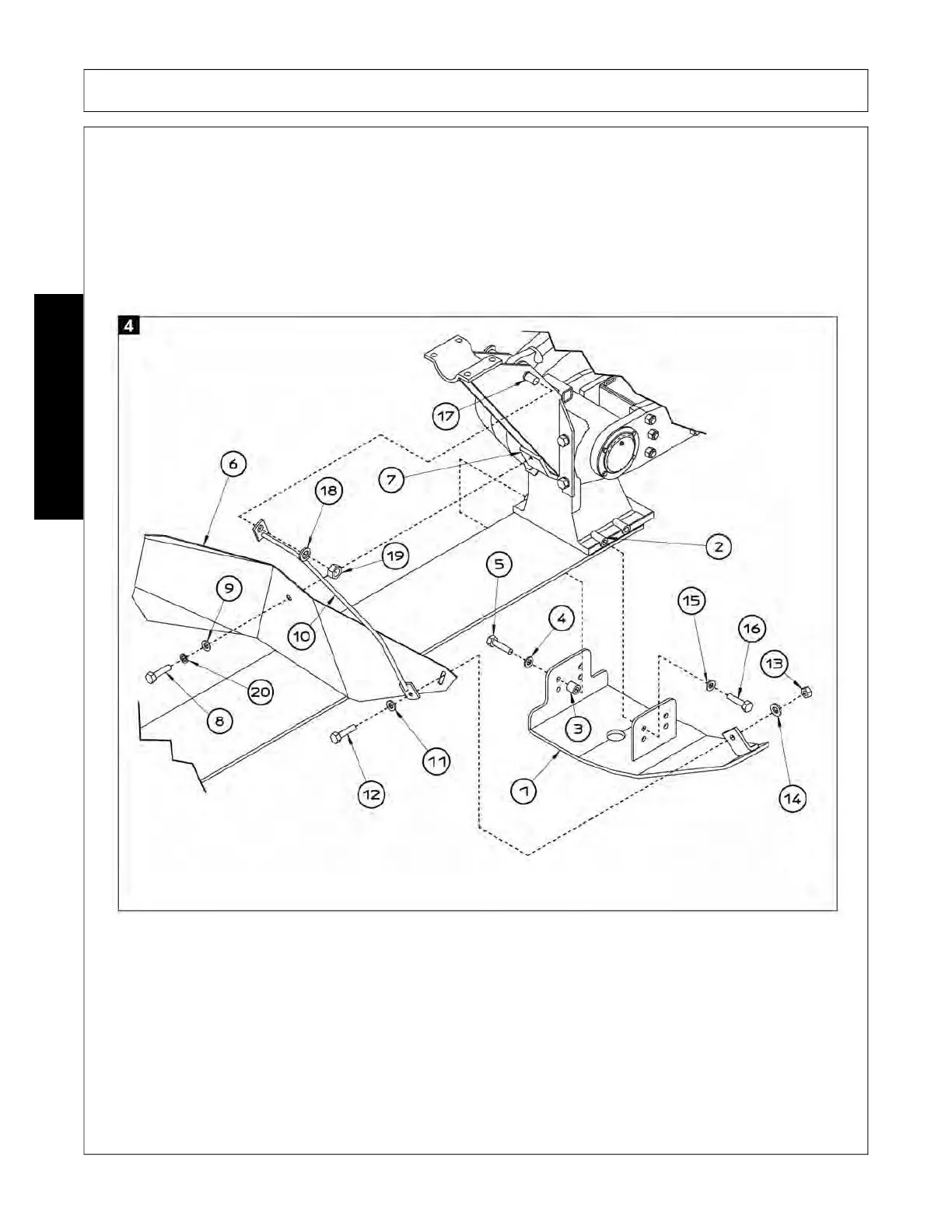

Refer to fig. 4 and carry out the following steps in the order indicated:
1. Mount conveyor sheet 6 over the holes on support 7 and slide 1 and use screw 8 M 10 x 30 (D 3/8” x 1”11/
64) lock washer 20 (similar to DIN 127B) and washer 9 (DIN 125A) to fasten into position without tightening
at this stage.
2. Insert protection 10 into pin 17 together with screw 12 M 8 x 30 (D 5/16” x 1”3/16) and flat washer 11 (DIN
125A) and 14 (Ø9/24x2) into the hole on slide 1 and slot on conveyor sheet 6.
3. Use flat washer 14 (Ø9/24x2) and nut 13 and screw 8 to fasten screw 12 to support 7.
