42”&47” LCD TV BAUER A642F&A647F
32

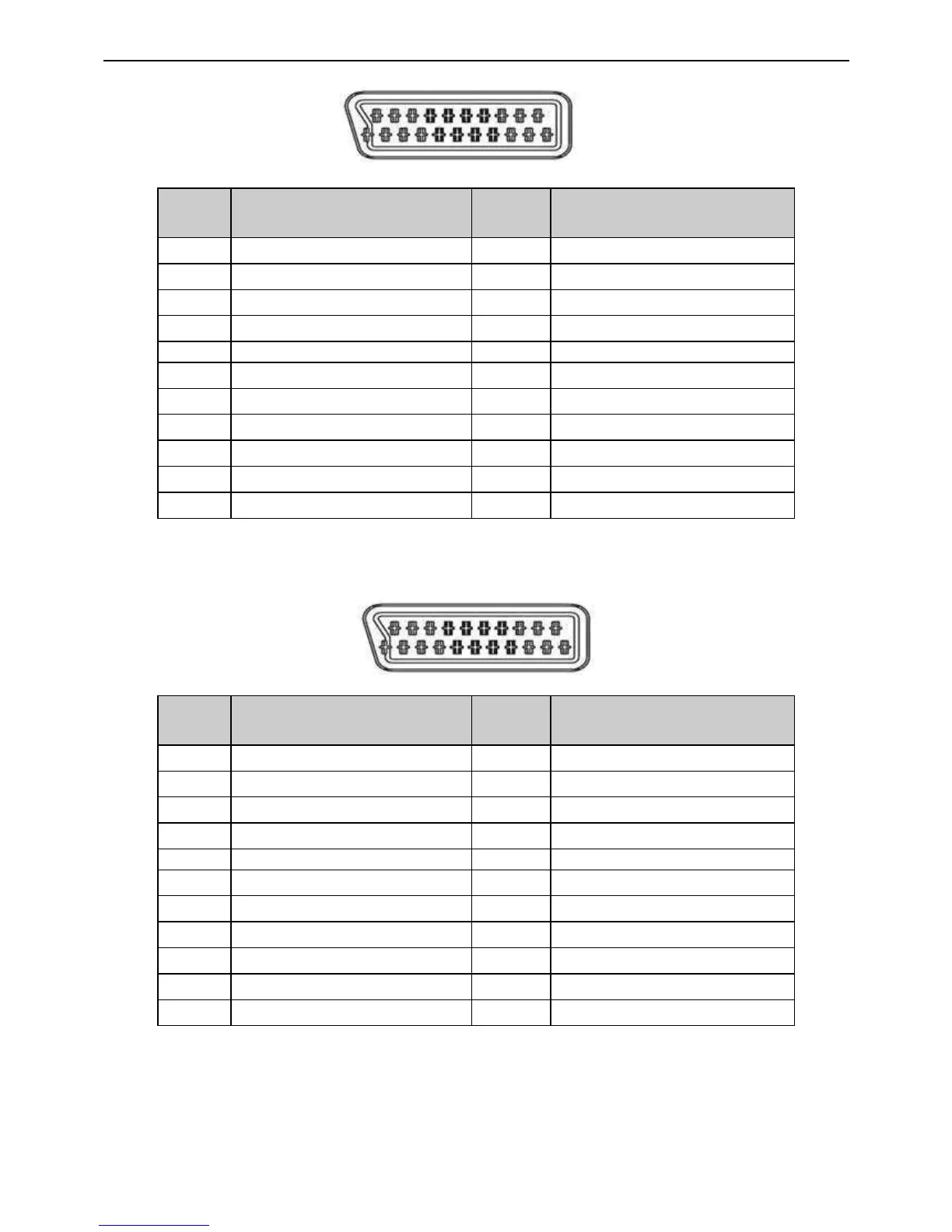

3.3 Full Scart Connector
Pin No. Description Pin No. Description
1 Audio Output Right 12 N.C.
2 Audio Input Right 13 GND(Red)
3 Audio Output Left 14 GND(Blanking)
4 GND(Audio) 15 Red Input
5 GND(Blue) 16 RGB Switching Control
6 Audio Input Left 17 GND(Video Input & Output)
7 Blue Input 18 GND(RGB Switching Control)
8 Switch Signal Input (Fast Blanking) 19 Video Output(Composite)
9 GND(Green) 20 Video Input(Composite)
10 N.C.
21
Common Ground
11 Green Input
3.4 Half Scart Connector
Pin No. Description Pin No. Description
1 Audio Output Right 12 N.C.
2 Audio Input Right 13 GND
3 Audio Output Left 14 GND(Blanking)
4 GND(Audio) 15 Chrominance Input
5 GND 16 N.C.
6 Audio Input Left 17 GND(Video Input & Output)
7 N.C. 18 GND
8 Switch Signal Input (Fast Blanking) 19 Video Output(Composite)
9 GND 20 Video Input(Composite)
10 N.C.
21
Common Ground
11 N.C.
