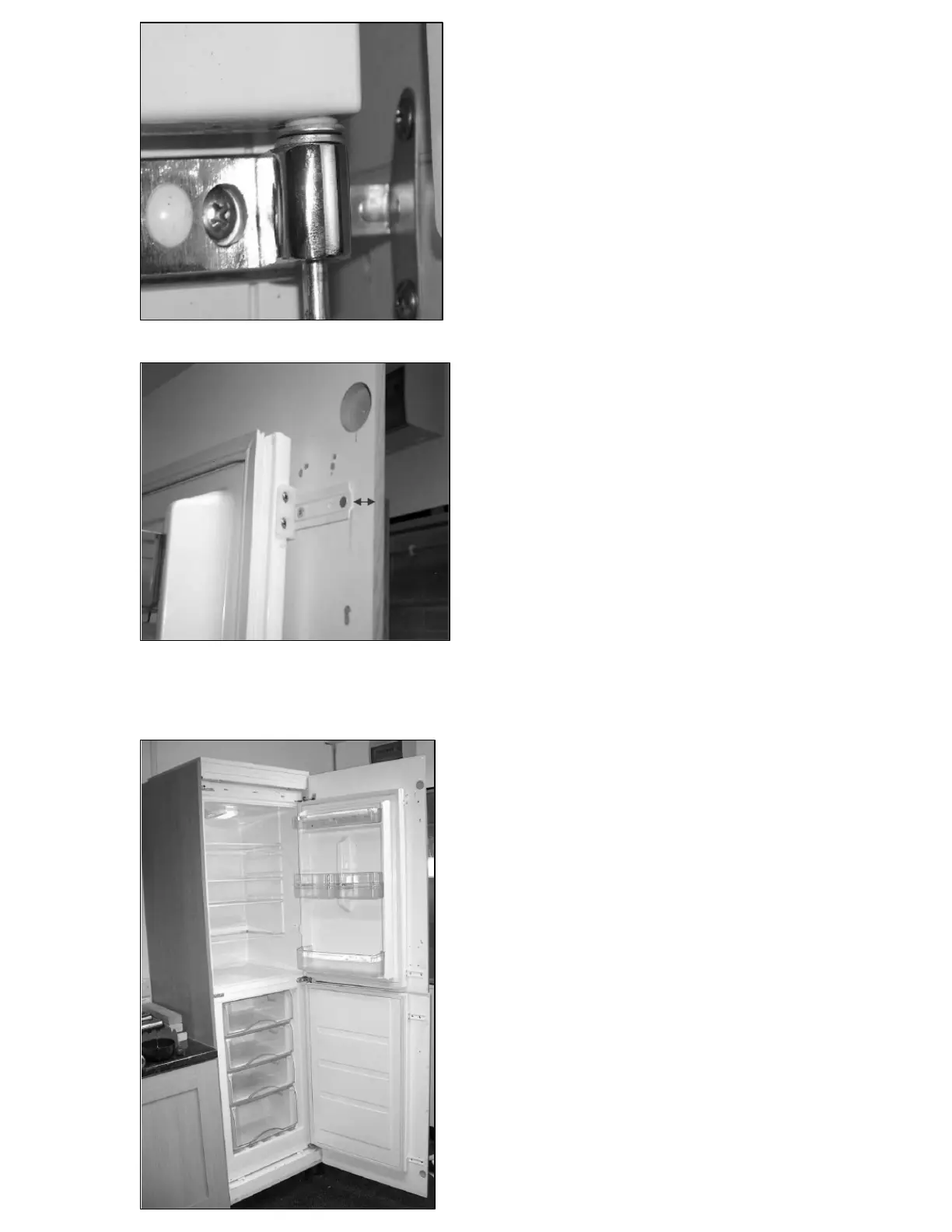

i) The flat bracket can be inserted
behind the central hinge
without taking the hinge apart.
o This can be done by loosening
the middle screw, which can be
found behind the screw cap.
o Once the flat bracket has be en
inserted behind the central
hinge, the middle screw must
be fully retightened.
j) Install the slider g uides on the
edge of the appli ance doors
(there are 2 slider guides per
door).
o Insert the sliders into the
slider guides.
o Mark the distance from the
front edge of the furniture
door, to the edge of the slider.
This measurement should be
approximately 20 mm.
o Fix the sliders into position; the screws must be fully tightened.
k) Check that both furniture doors
open and close properly,
without f ouling on the kitchen
cabinet.
o You should also ensure that the
doors of the appli ance and the
door seals are shutting properly
against the cabinet of the frid ge
freezer.
o Installation completed.
