Wall mounting the soundbar
1. Align the Sound bar in the chosen location.
Use a pencil to mark the drilling positions 494mm
(19.45”) apart. (Fig 1)
The Sound bar should be located at least 75mm (3”)
below the bottom of the TV.
WARNING! Take care to mount in a position out of
reach of small childeren to avoid the soundbar
causing injury or damaging equipment below.
2. Drill holes as marked in STEP 1. (Fig 2)
3. Insert 2 screws (not supplied) into the holes and
tighten. Take care to leave 5mm between the
screw heads and the wall. (Fig 3)
You will need to ensure the screws are long enough
to sufficiently grip the wall while allowing 5mm
between screw head & wall.
4. Hook the Sound bar into the screws. For secure
mounting ensure the screw heads slide firmly into
the narrow part of the brackets. (Fig 3)
• In order to avoid damage to the unit and personal
injury you should get a qualified person to drill the
fixing surface and fit the appropriate wall fixings.
• Take care not to allow the main unit to fall while
attempting to hook onto the wall mount brackets.
• Before mounting, check the wall strength, if it is not
clear then consult relevant qualified personnel.
• When drilling into walls, always check that there are
no hidden wires or pipes etc.
• Make sure the screws & wall plugs are suitable for
supporting the unit.

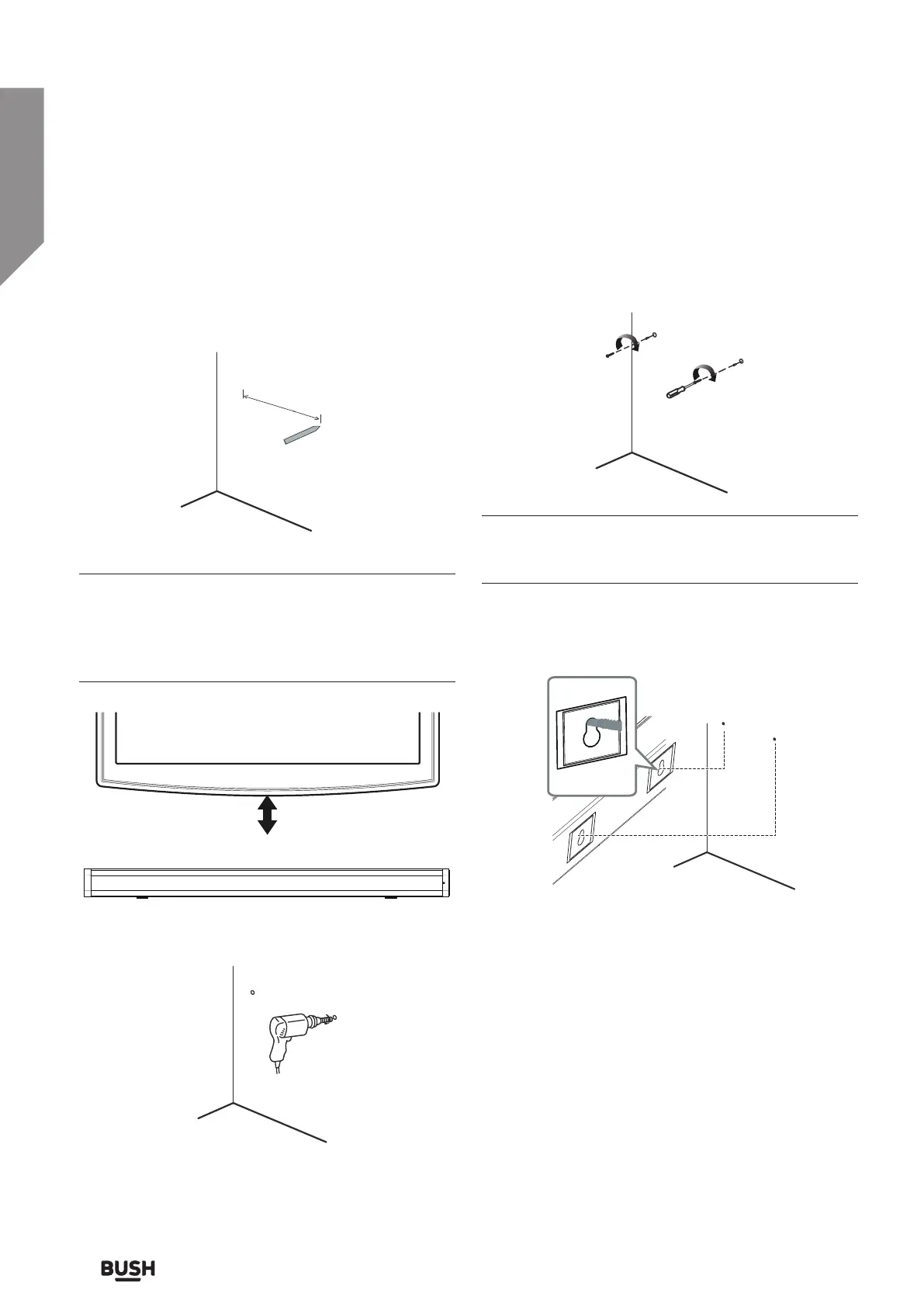

494mm/19.45"
Fig 1.
3 inches (7.5 cm) or more
TV
Fig 2.
Fig 3.
Fig 4.
