Bush DVB-T2 PVR - Connections on the Set Top Box; Front View Connections; Back View Connections

- 6 -

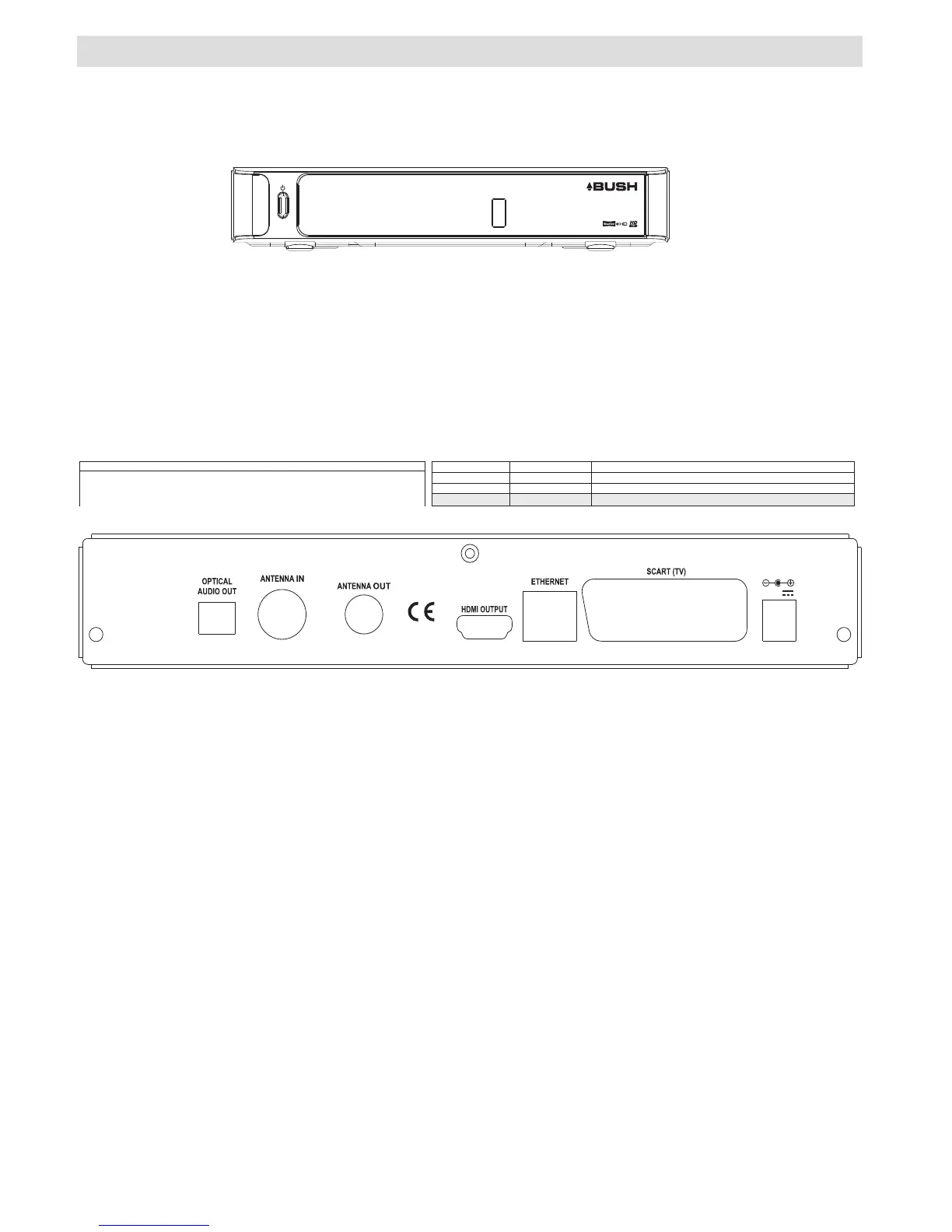

Connections on the Set Top Box
1. USB INPUT: To connect external USB storage devices.
2. OPTICAL AUDIO OUT: You can use this connector to output the digital audio to an external device.
See your audio system instruction book for further information.
3. ANTENNA IN: Aerial input
4. ANTENNA OUT: To watch channels on the TV
5. HDMI IN: HDMI connection
6. LAN: Ethernet Input
7. SCART OUT: If your TV has a scart connector, you can connect the box to your TV using a scart cable
8. POWER CABLE: DC IN (12V)
Make sure that you connect all cables and connections before you plug the unit into the mains supply. After you
connect the unit to the mains supply, the LED light located on the front panel will be red (Standby mode).
12 V DC
2A
FR.AS.DVB535/T7655 BUSH B500d TRG
LENS smoke gray baski rengi: 1u
18.04.2014
F.C
HER HAKKI SAKLIDIR, YAZILI ÝZÝN OLMADAN ,
DÖKÜMANLARIN HÝÇ BÝR KISMI KOPYA, BASIM VEYA DÝÐER BÝR
ÞEKÝLDE ÇOÐALTILAMAZ VEYA YAYINLANAMAZ.
ALL RIGHTS RESERVED, REPRODUCTION OR REISSUE TO THIRD
PARTIES IN ANY FORM WHATEVER IS NOT PERMITTED
WITHOUT WRITTEN AUTHORITY FROM THE PROPRTETORS
TARÝH / DATE
ÇÝZEN / DRAWN
VESTEL KOMÜNÝKASYON SAN. VE TÝC. A.Þ.
ÝZMÝR/TÜRKÝYE
MALZEME KODU /
MATERIAL CODE
MALZEME TANIMI /
MATERIAL DEFINITION
MEKANÝK KODU /
MECHANICAL CODE
REVÝZYON NO / REVISION NO
REVÝZYON TARÝHÝ / REVISION DATE
REVÝZYON BÝLGÝSÝ / REVISION INFO
1:1
ÖLÇÜ
SCALE
SERÝGRAFÝ BÝLGÝLERÝ / SERIGRAPHY INFO
Mekanik çizim için ekteki linke bakýnýz:
\\Manfile2\DWGS\MEKANIK_PARCA_SPEKLERI\5-DVD DVB BOX\DVB_645
40059441
B500DTR
40054425 LENS DVB535 W/USB WO/SC
FRONT VIEW
BACK VIEW
