4.1.3 Setting Image Size (Resolution)
This parameter has two values: 5 megapixels (5M Pixel or 5MP) and
3 megapixels (3M Pixel or 3MP). The default value is 3 megapixels. The
following shows you how to set pixel size as “3M Pixel” provided that the
previous value is “5M Pixel” at MENU state:
a) Push the UP or DOWN key until the parameter “Image Size”
appears, shown in Fig. 7(a) and 7(1).
b) Push the RIGHT or LEFT key, the value will be changed to
“3M Pixel”, shown in Fig. 7(b) and 7(2). The value “3M Pixel” is
highlighted.
c) Press OK key to save the current setting or MENU key for canceling
the setting and quitting. After pressing OK key the selected value
will be no more highlighted, shown in Fig. 7(c) and 7(3).

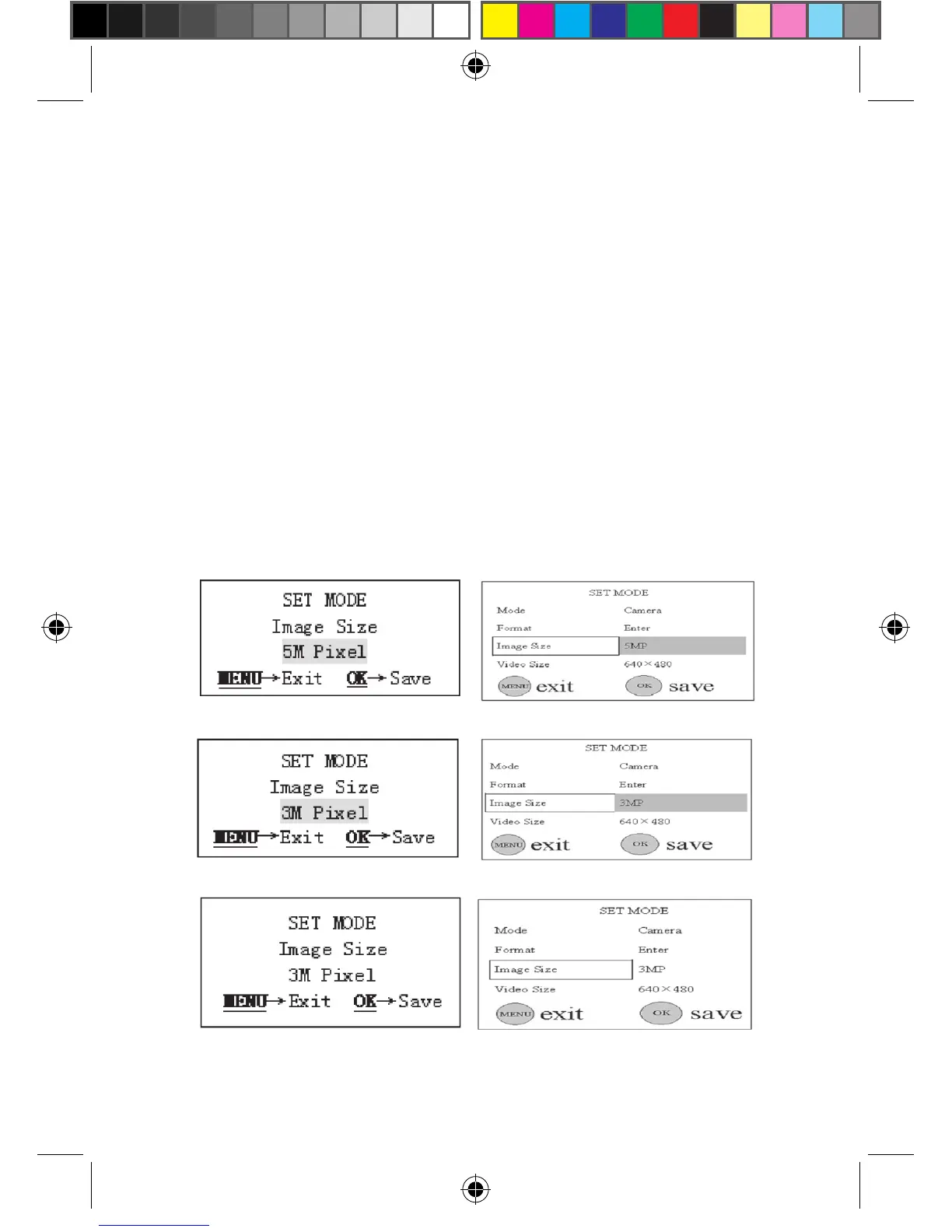

Figure 7: Setting Pixel Size (Resolution)
(a)
(c)
(b)
(1)
(3)
(2)
