- 14 -

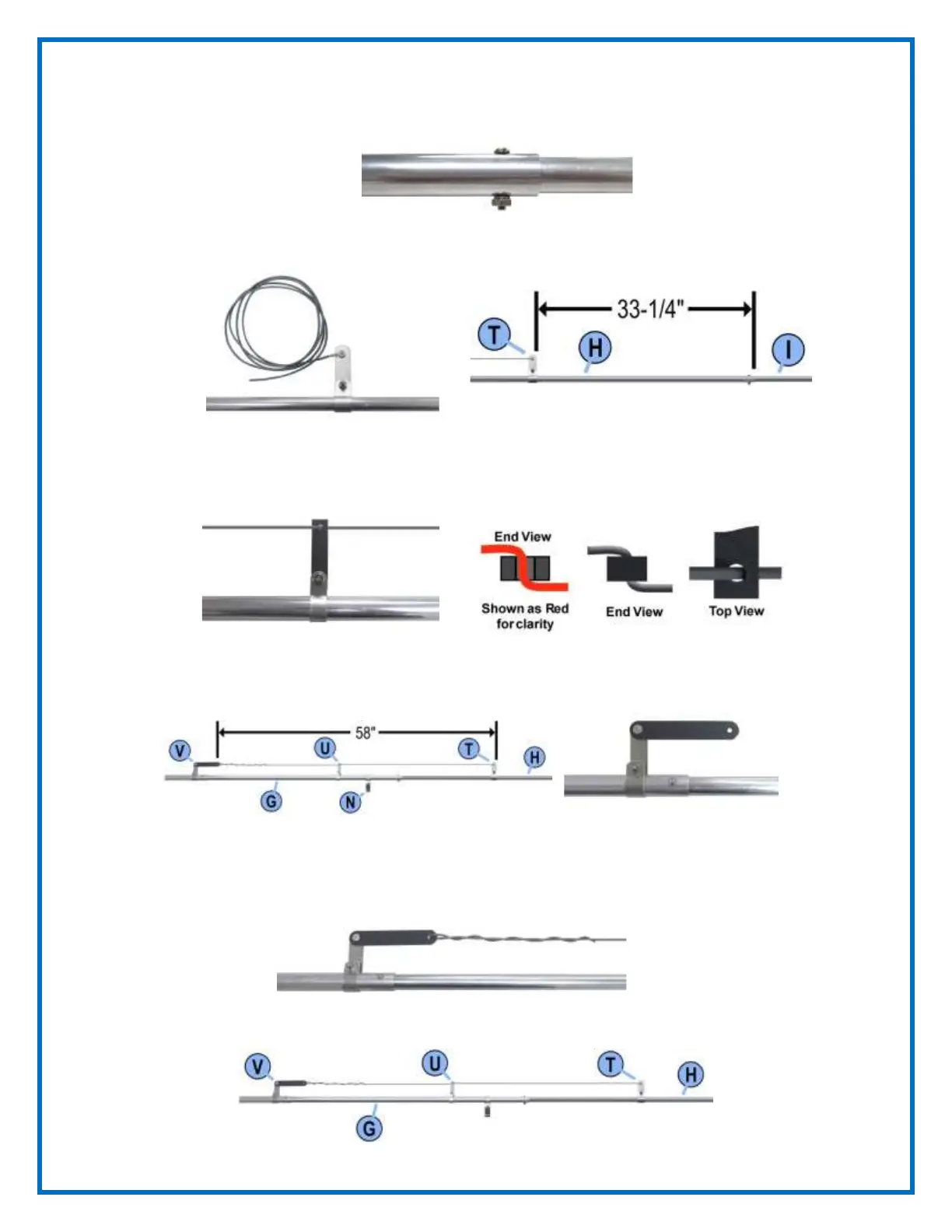

36. Insert the end of tube (H) into the end of tube (G) and secure with a # 8 x 1" screw, lock washer
and hex nut.
37. Position wire clamp 0.625" 6M with wire (T) around tube (H) so the top edge is 33-1/4” from
the upper end of the tube.
38. Pass the free end of the stranded wire from wire clamp 0.625" 6M with wire (T) through the
small hole in wire clamp 0.750" 6M with insulator (U).
39. Line up and position the bottom edge of the 6M wire clamp 0.875" with insulator (V) 58" from
the upper edge of the 6M wire clamp 0.625" with wire (T) and tighten.
40. Pass the free end of the stranded wire from the 6M wire clamp 0.625" with wire (T) through the
small hole in the 6M wire clamp 0.875" with insulator (V). Loop the free end of the wire
around itself. Do not cut off the excess.
41. Center and align wire clamp 0.750" with insulator (U) and tighten.
