- 15 -

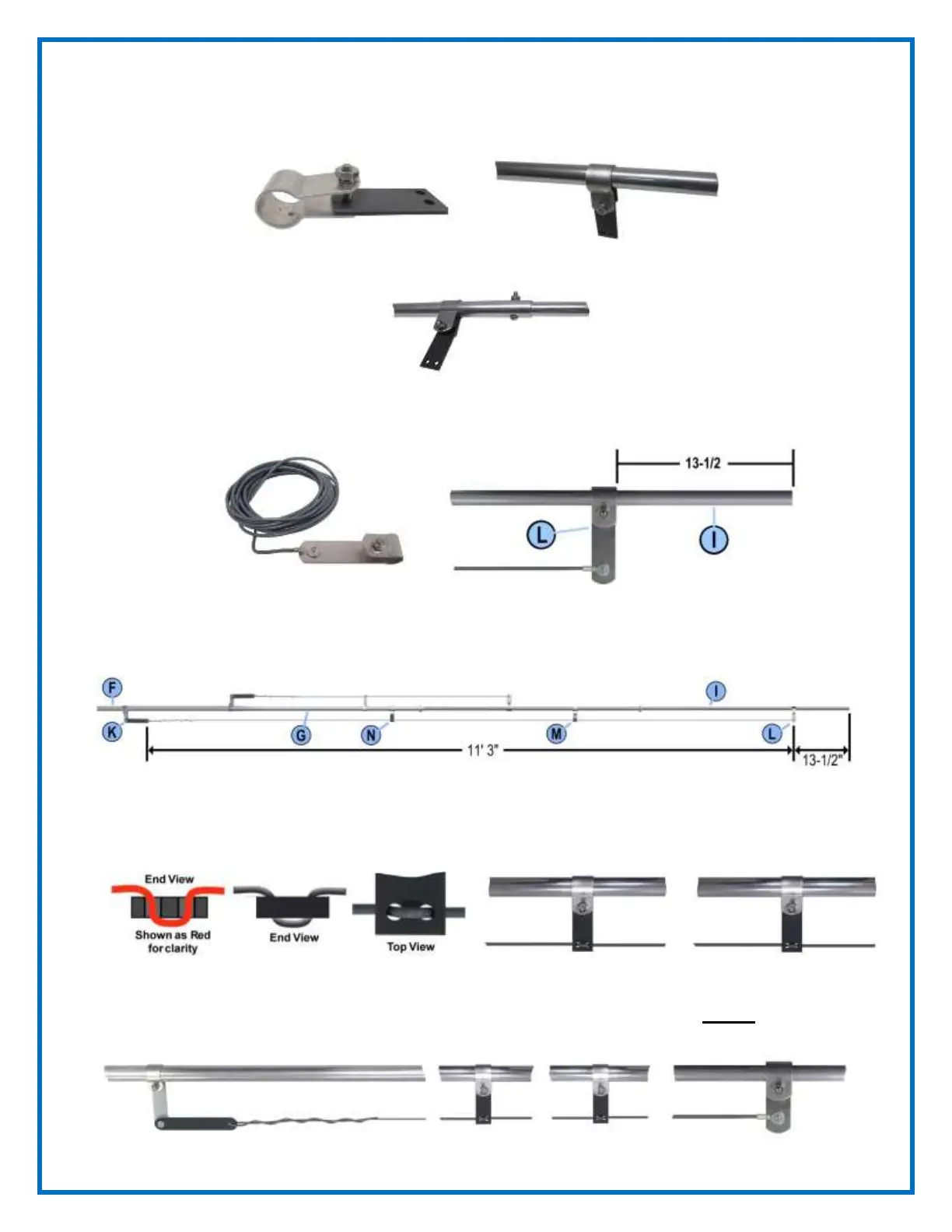

42. Locate the 15M wire clamp 0.625" with insulator (M) and position it around tube (H). Final
tightening and positioning will be done in a later step.
43. Insert the end of tube (I) into the end of tube (H) and secure with a # 8 x 1" screw, lock washer
and hex nut.
44. Position wire clamp 0.500" 15M with wire (L) around tube (I) so the top edge is 13-1/2 inches
from the upper end of the tube and on the opposite side from the 6 meter assembly.
45. Measure from the rivet of wire clamp 0.500" 15M with wire (L) to a point 11 feet 3 inches along
the stranded wire and mark this point.
46. Pass the free end of the stranded wire from wire clamp 0.500" 15M with wire (L) through the
small holes in wire clamp 0.625" 15M with insulator (M) and wire clamp 0.750" 15M
w/insulator (N) as shown.
47. Loop the end of the wire through the hole in wire clamp 0.875" 15M with insulator (K) sliding it
on tube (F) until the mark on the wire appears. Wind the wire back on itself. Do not cut off the
excess wire.
