ButtKicker BKA300-4 - Amplifier Setup; Wireless RF Setup and Connection

Amplifier Setup
Wireless RF Receiver / Transmitter Setup

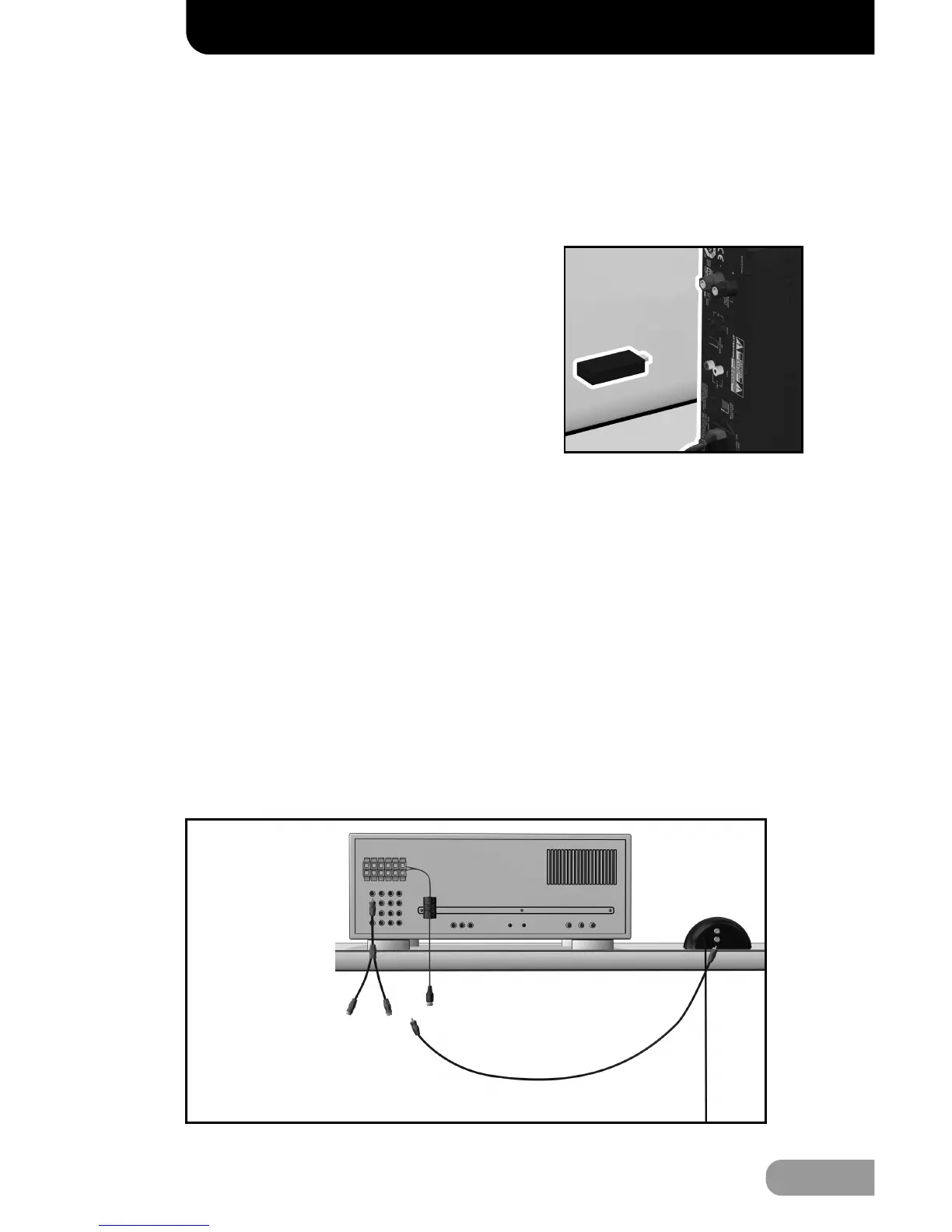

Step 1.
Plug the RF Receiver unit into the ”RF Receiver”
input on the back of the Amplifier. The green light
on the side of the RF Receiver indicates that the
unit is powered on (See Figure 1).
Step 2.
Connect the included AC adapter into the back
of the RF Transmitter and plug into a power outlet.
Connect the RF Transmitter to the “sub out” or
“LFE out” pre-amp output on your A/V processor
using the included RCA ”Y” adaptor and 1m RCA
male to male cable (See Figure 2). If you want
to connect both your subwoofer and the Amplifier
to your system use the included “Y” adaptor. Use the included ”Speaker Level Interface
Adaptor” to connect to push type passive subwoofer connectors on an A/V processor.
Use the included 1m RCA male to male cable to position the RF Transmitter so that
it faces towards the location of the Amplifier (line of sight is NOT required). The RF
Transmitter has stereo RCA inputs. Use either a single mono or dual stereo RCA
input(s) from the signal source (i.e. your A/V processor).
NOTE: Stereo inputs are “summed” to mono in the RF Transmitter.
When using the Amplifier’s “Wireless Setup”, the RF Transmitter also communicates
the Remote Control’s commands to the Amplifier. Therefore make sure that the RF
Transmitter is positioned so that the Remote Control can be operated WITH line of
sight to the RF Transmitter. This allows the Remote Control to control the Amplifier’s
operation even when the Amplifier is in a non-visible position (such as behind a couch
or another piece of furniture).
A/V Processor
OR
Speaker Level Interface Adaptor
to Subwoofer Output (Use when
RCA Output is NOT Available)
1m RCA Cable
To Subwoofer
RCA “Y” Connector
to RCA Subwoofer
Output (Preferred)
08
Power Amplifier BKA300-4
Figure 1
Figure 2
