F3DM Owner’s Manual

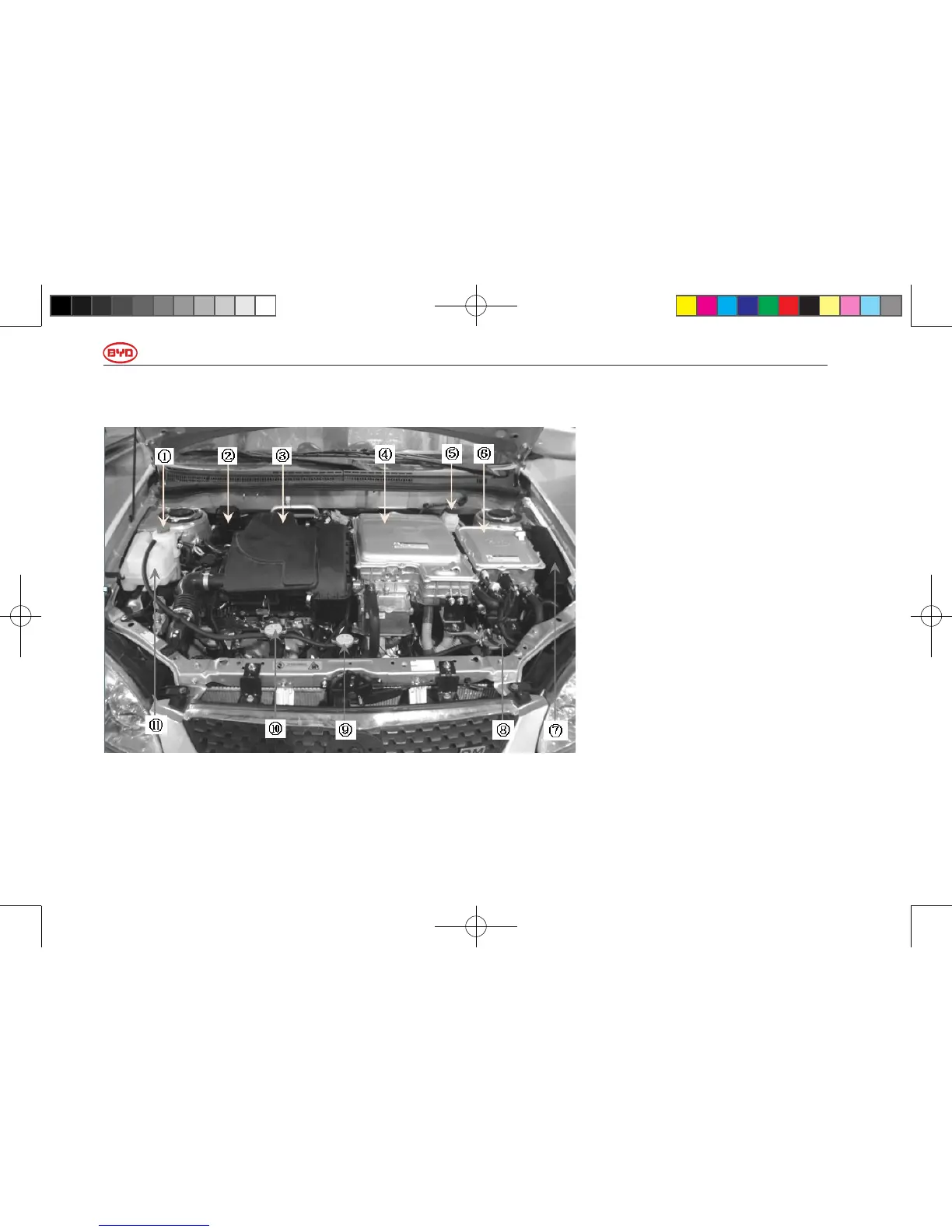

Appearance of Front Engine Compartment
1. Clutch uid tank
2. Power distribution box 3#
3. Gasoline engine
4. Driving electric motor controller
5. Brake uid tank
6. DC and air conditioner controller
7. Power distribution box1#
8. Power distribution box 2#
9. Motor cooling radiator
10. Electric motor cooling radiator
11. Overow tank
