BYD P20PS - Operating; Fork Carriage and Pedal; Tiller; Travel, Steering and Braking

OPERATING
OPERATOR MANUAL
19
P20PS
20
OM-P20PS2019001-EN

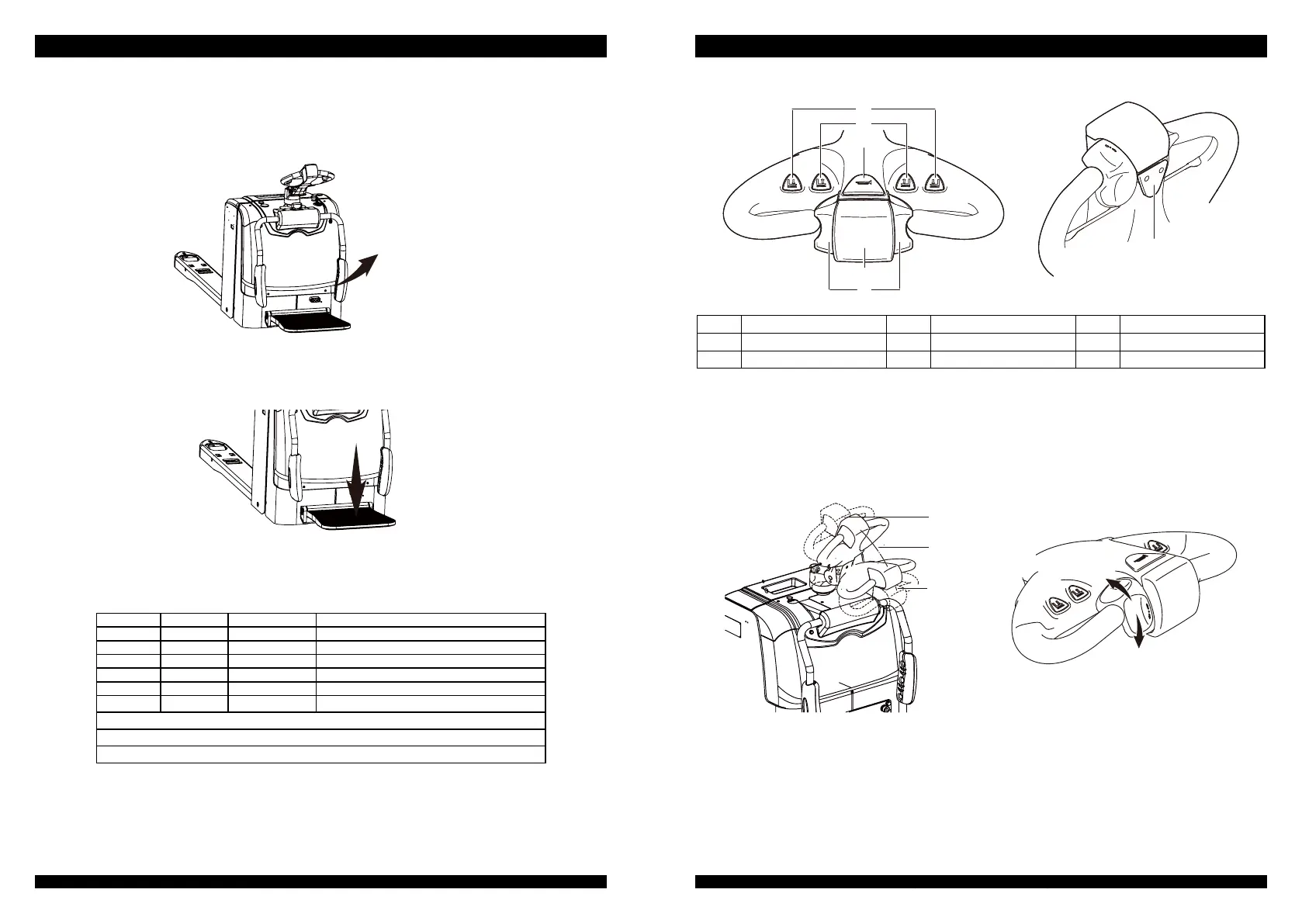

Fork Carriage and Pedal
1. Fork carriage
Before using the forklift, open the fork carriage to protect the operator during turning
2. Pedal
Open the pedal downward to use
3. Speed mode
P20PS-U (High speed)
Fork carriage Pedal Person Speed
1 1 1 High speed 12km/h, adjustable
1 1 0 Cannot run
0 1 1 Low speed 6km/h, adjustable
0 1 0 Cannot run
1 0 0 Cannot run
0 0 0 Turtle speed 3km/h, adjustable
Fork carriage: 1: Open, 0: Retract
Pedal: 1: Open, 0: Retract
Person: 1: Person on the pedal, 0: Person off the pedal
P20PS (Low speed)
Put down the fork carriage, 6km/h;
Retract the fork carriage, 3km/h.
Tiller
1
2
3
4
5
6
1
2
3
4
5
6
No. Name No. Name No. Name
1 Lower Control Button 3 Horn Button 5 Direction Control
2 Lift Button 4 Emergency Reversal Switch 6 Low Speed Control
Travel, Steering and Braking
1. Travel
Rotate the control handle to the area of A2. Rotate the direction control forward or backward
to travel forward or backward.
A1
A2
A3
