BYD Suri Owner‘s Manual
Specification of Parts8-7
No.
Amp
erage
Components or
Circuits under
Protection
clutch)
13 15A
Turn signal/hazard
warning relay
14 20A
Brake lights, high
brake light, ignition
key light and multiple
integrated control unit
(MICU)
Speaker, alarm relay
(by means of relay
module)
15 40A
Rear window defogger
(by means of the rear
window defogger
relay)
16 40A
Cigarette lighter,
vehicle spare power,
door lock motor, rear
fog light, interior lights,
audio system and
CAN module power
17 25A
ABS modulator I
control device
18 40A
Electronic fuel
injection system
19 40A ABS modulator
No.
Amp
erage
Components or
Circuits under
Protection
-control device (RFP
MOTOR)
20 40A
Electric seat
adjustment system
and seat heating
system
21 40A
Blower motor (by
means of the blower
motor relay)
22-1 125A Main fuse
22-2 50A
Distribution box of
instrument panel II
23-1 50A Power windows
23-2 50A
No.1 ignition switch
(BAT)

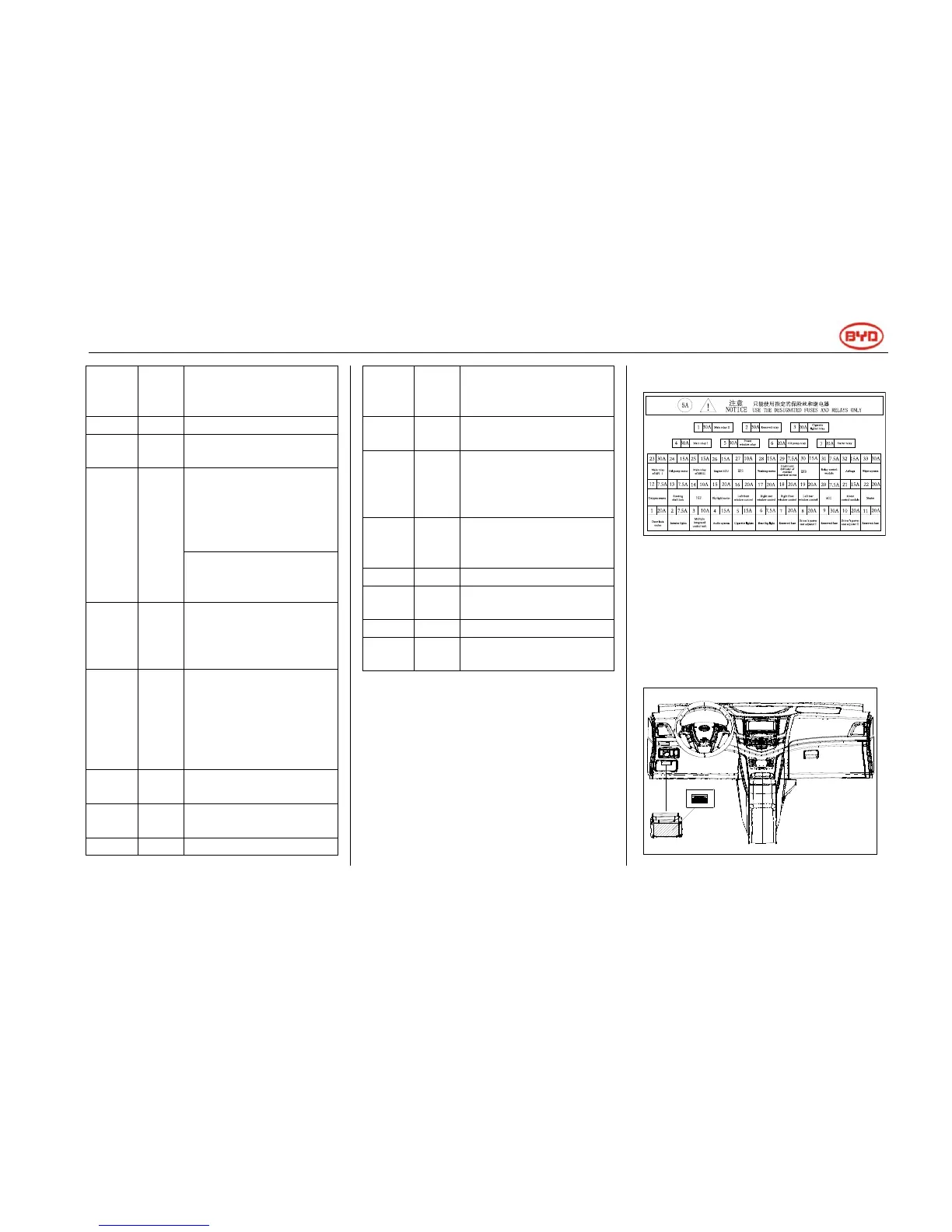

Interior fuse box nameplate
The interior fuse box nameplate is
pasted on the back of the note box. To
replace the fuse in the interior fuse
box, remove the lower left cover sheet
of the instrument panel, and turn over
the back of the cover sheet under the
instrument panel seat, then the label
of the interior fuse box can be visible.
