34
English
14 Difference measurement and Pass/Fail
You can compare the
measurement value of a sample
with the target value of a saved
reference. You can also display
whether the test specimen falls
within the limits (Pass) or outside
(Fail).
Up to 50 references can be saved.
They are stored in a separate area
of memory. For each geometry you
can determine:
- The target value for the
difference
- Maximum and/or minimum for
Pass/Fail
The target value can also be set
equal to the maximum or minimum
value (see Create reference or
Change reference).

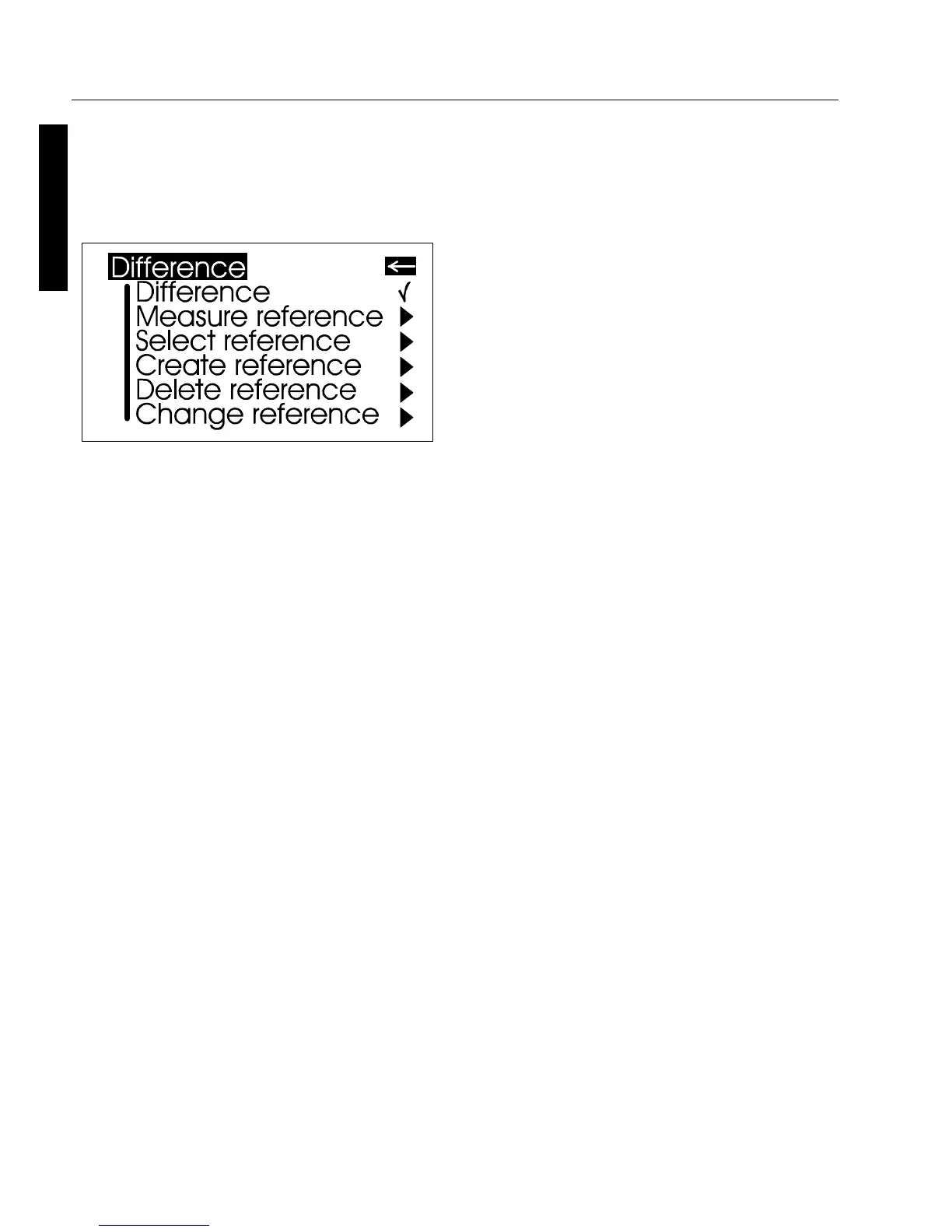

Difference
You can use this menu option to
turn Difference measurement on or
off. A check mark indicates if the
function has been activated.
When Difference is turned on, the
last reference to be used is
automatically selected.
