C.L.BECKER HHPC 170/21 - Electrical System Details; Wiring Diagram and Electrical Settings

9 Electrical

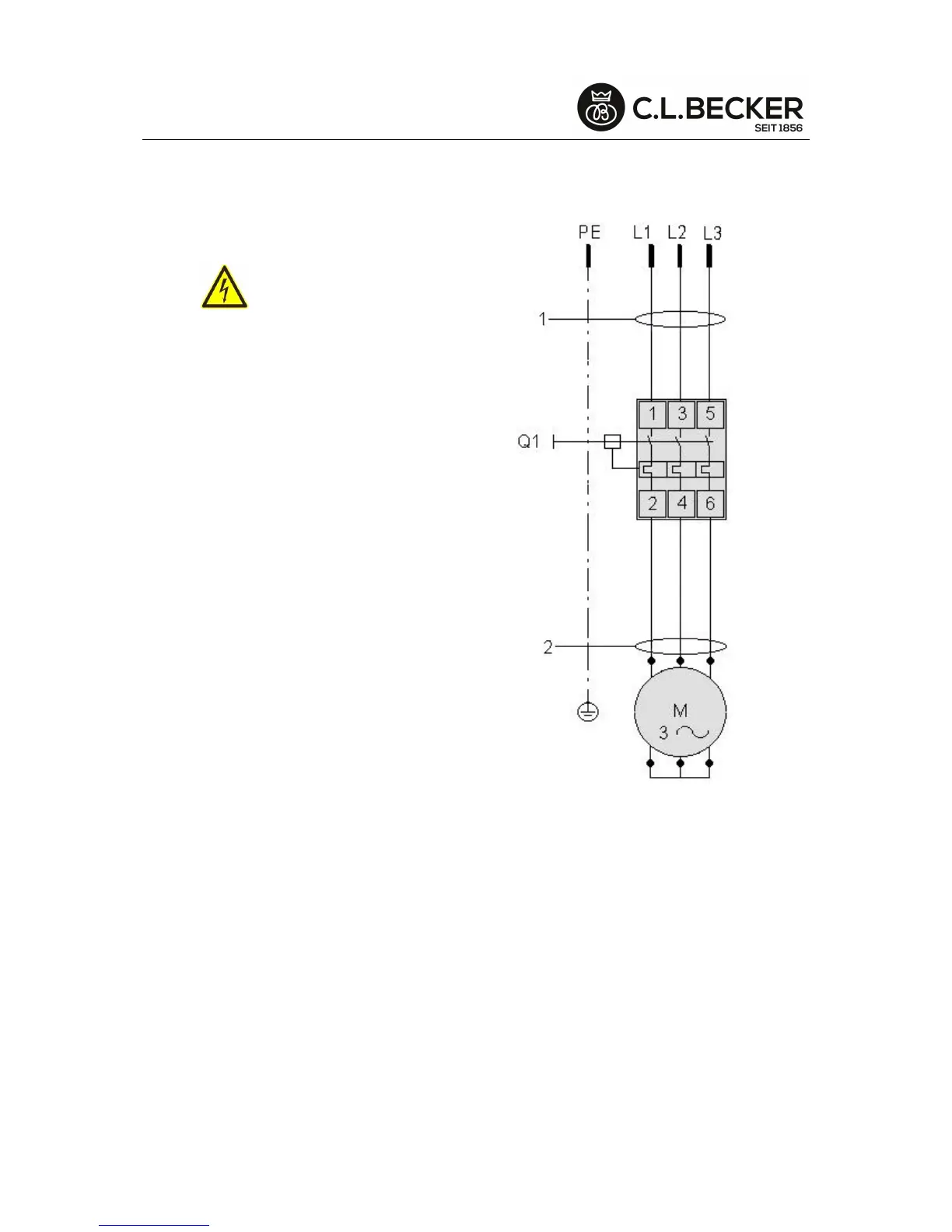

9.1 Wiring diagram
Gloss:
L1 phase 1
L2 phase 2
L3 phase 3
PE protective conductor
Q1 motor protection switch
M motor
1 connection cable
2 motor connection cable
Setting of motor protection switch:
16A
Fuse:
16A träge / gl
BA HHPC-170/21 60Hz englisch
Art.Nr. 02505004/60/BECKER/ENG
Stand 05/2013 Seite 15 von 23
