- 13 -
C-LOGIC 400-TC EN

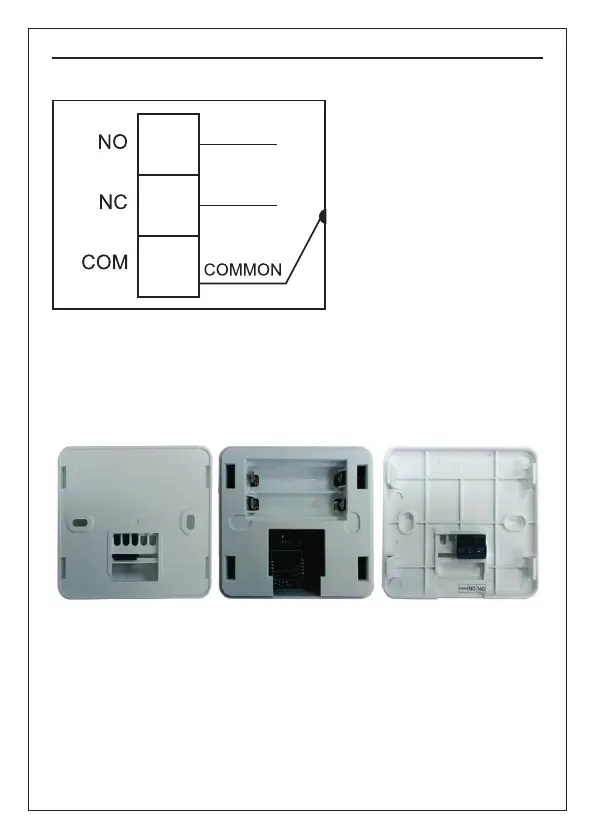

Connection diagram
NC: Normally close contact
COM: Common terminal
NO: Normally open contact
Installation
1) After open upper panel and bottom panel, x the bottom panel on the wall
using two screws, entering the required wires through hole of the bottom
panel. It is recommended that the wires have a length of 20 cm in order to
facilitate the connection.
2) Install two AA batteries and connect the wires on input terminals.
3) Finally, close bottom panel and upper panel.
